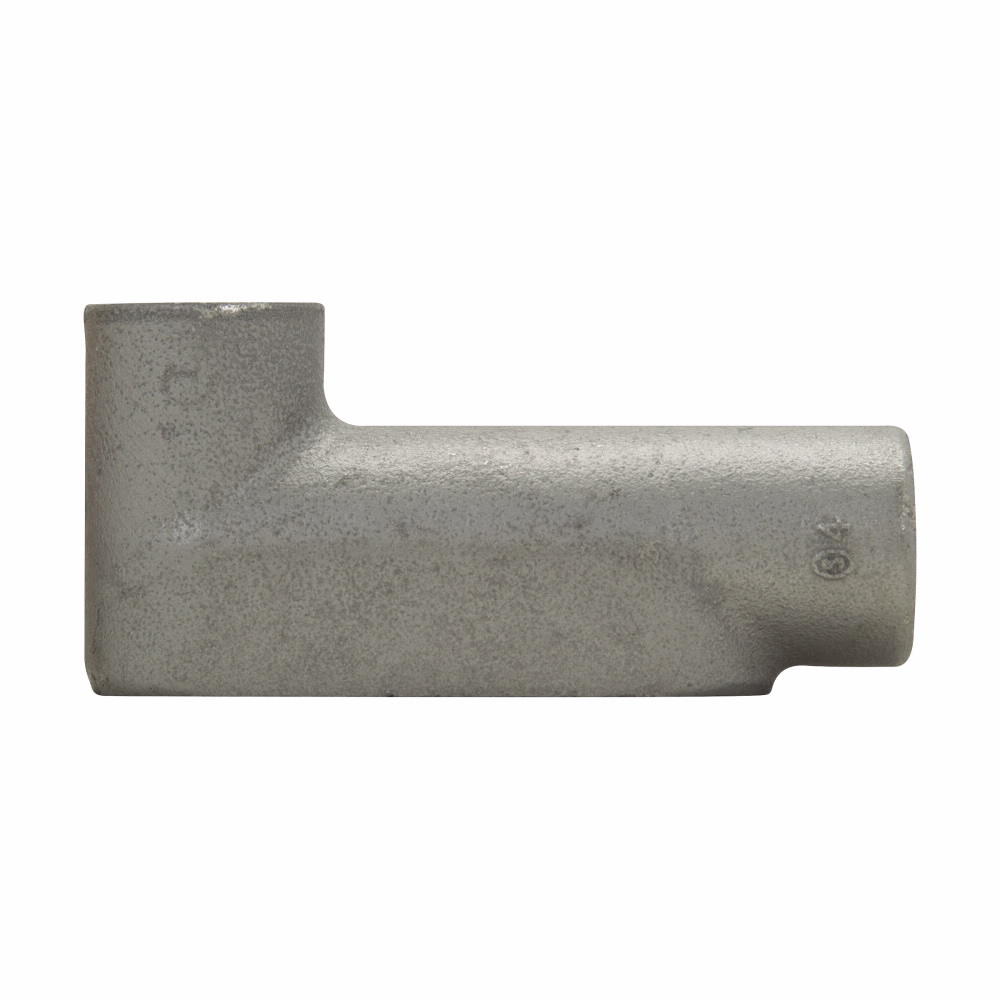

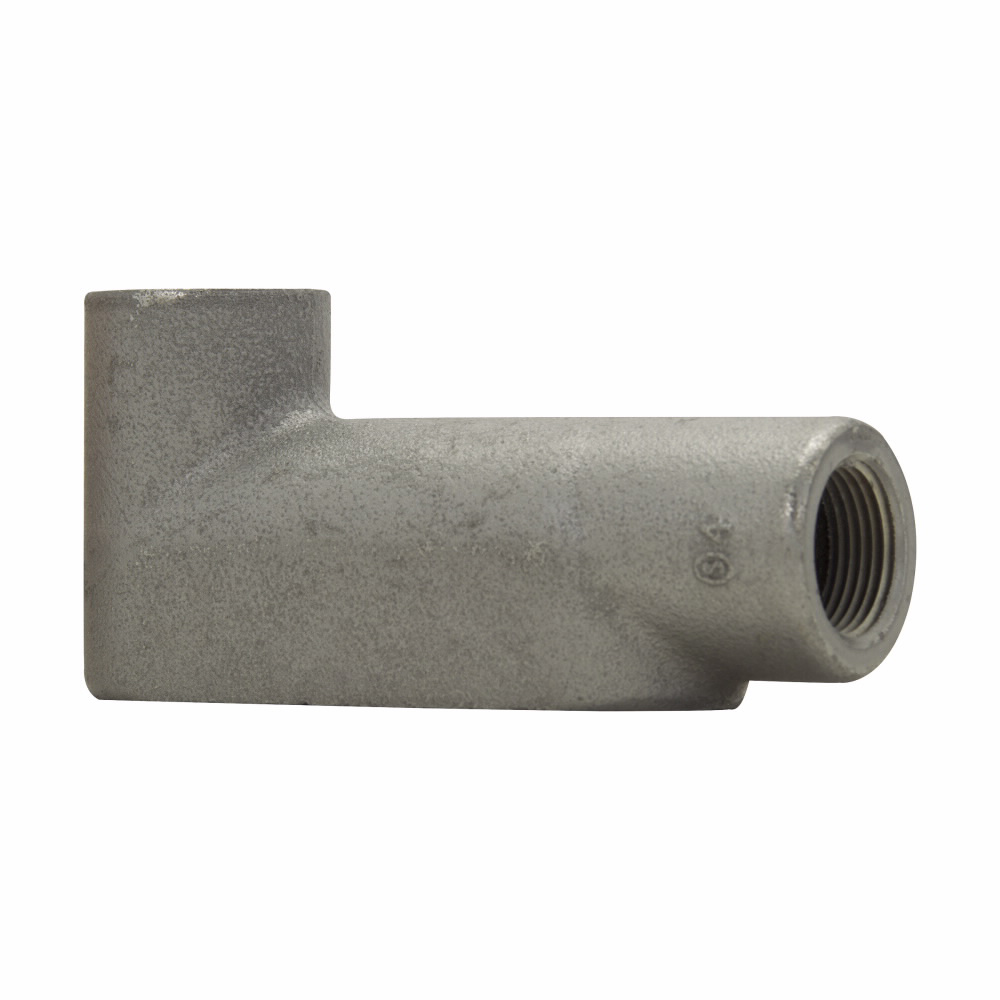

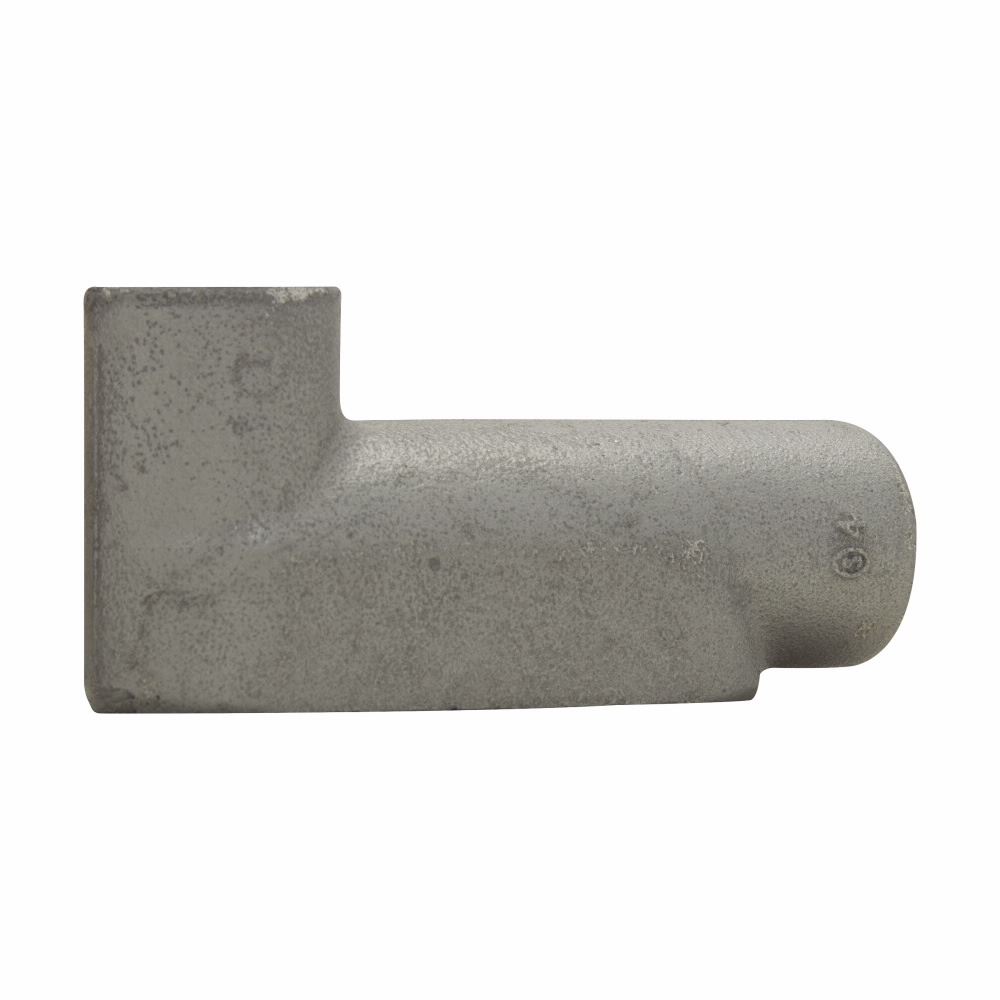

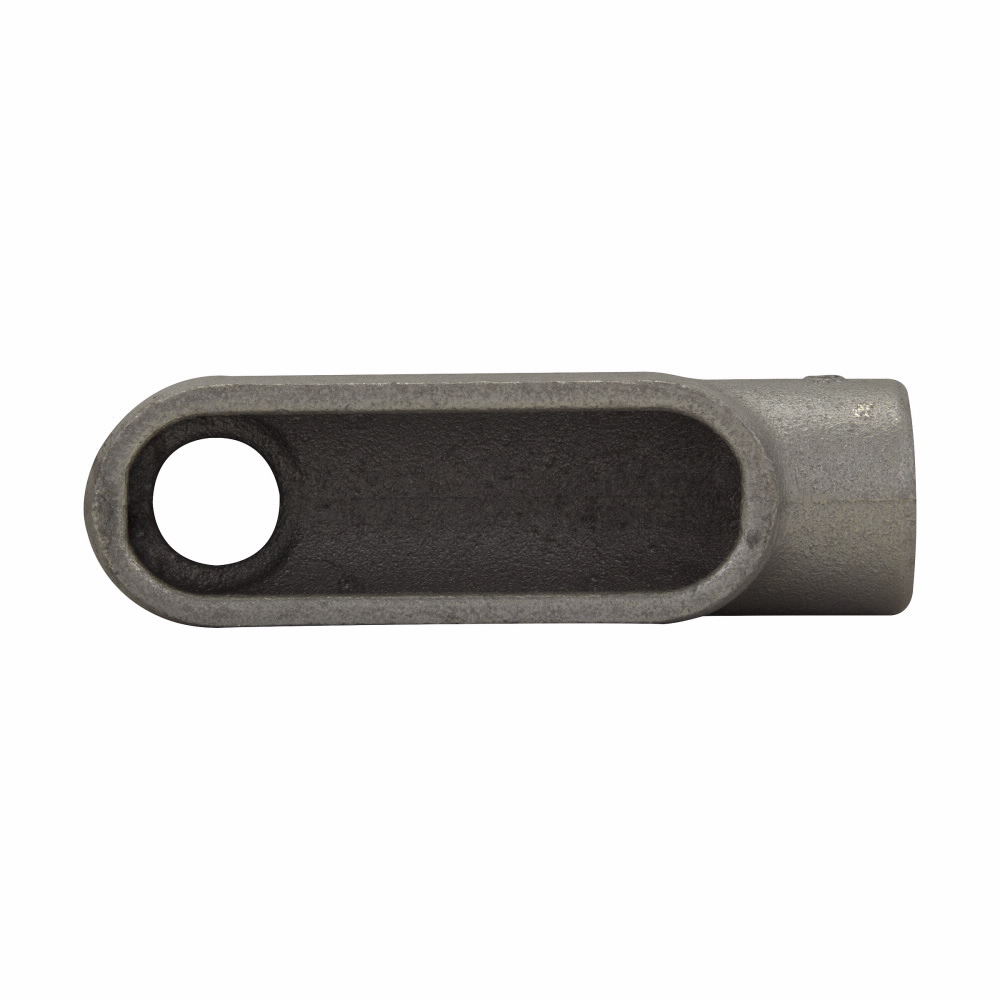

Crouse-Hinds LB47 1-1/4 LB-Style Conduit Body, Form-7, Feraloy Iron Alloy

Product Description

The Crouse-Hinds LB47 is a conduit body designed for Rigid Conduit applications. This product is made from Feraloy iron alloy, ensuring durability and strength. The Form-7 shape of this LB-style conduit body allows for easy installation and maintenance of the conduits.

• Compatible with Rigid Conduit.
• Provides access to conductors for maintenance.
• Equipped with a threaded and set screw connection type.

Product Highlights

This product ensures a neat installation with its compact design. It serves as a pull outlet for conductor installations and facilitates making splices and taps in conductors. The tapered threads and integral bushing protect wire insulation, enhancing durability.

Product Information

Standard Information

• Brand: Crouse-Hinds
• Manufacturer: EATON

Technical Specifications

• Type: LB
• Dimensions: 6-1/2 inches long x 2-3/16 inches wide x 3-5/16 inches high
• Hub Size: 1-1/4 inches
• Material: Feraloy Iron Alloy
• Capacity: 18.5 cu-in
• Order Interval: 1
• Connection Type: Threaded/Set Screw
• Finish: Electro-Galvanized/Aluminum Acrylic Painted
• Standard Compliance: cUL, UL 514B, CSA C22.2 No. 18, Federal Spec W-C-586D
