Crouse Hinds LB125M LB Conduit Body 1-1/4 Inch

Product Description

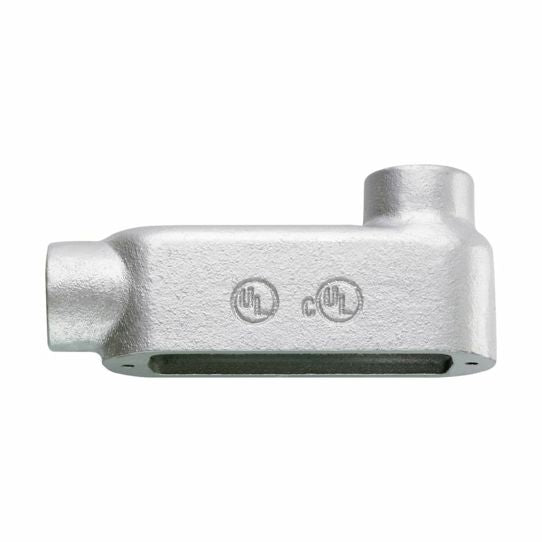

The Crouse-Hinds LB125M is a Condulet Form 5 conduit outlet body made of malleable iron. This LB shape conduit body features built-in rollers and a 1-1/4 inch hub size. It acts as a pull outlet for conductors, provides openings for splices and taps, and allows for 90-degree bends in conduit runs.

• Features malleable iron construction
• Has trade size of 1-1/4-inches
• Measures 8.12-Inch x 2.75-Inch x 2.6-Inch

Product Highlights

The Crouse-Hinds LB125M conduit outlet body is ideal for use in conduit systems for facilitating conductor installation, providing access for maintenance, and enabling conduit bends.

Product Information

Standard Information

• Brand: Crouse Hinds
• Manufacturer Part Number: LB125M
• Country of Origin: China

Technical Specifications

• Form: Form 5
• Type: Conduit outlet body
• Width: 2.75 in
• Finish: Electrogalvanized with Aluminum Acrylic Painted
• Height: 2.6 in
• Length: 8.12 In
• Hub Size: 1.25 in
• Material: Malleable Iron
• Standard: UL 514B; CSA C22.2; CUL
• Sub Brand: Crouse-Hinds series
• Application: Commercial / Institutional Buildings / Structures - Commercial / Institutional B
• Manufacturer: CROUSE HINDS
• Trade Size: 1-1/4 Inch
• Standards: UL E15022 Listed, CSA 22.2 No 18 Certified, Federal Specification: W-C-586D
• Conduit Body Style: Type LB
• Conduit Body Form: Form 5
• NEMA Rating: NEMA 3R
• Number of Hubs: 2.0000
• Cover Type: Screw-On
• Access: Back Side
• Conductor Capacity: 2 AWG
• Connection Type: Threaded
• Cubic Capacity: 32
• For Use With: Rigid Conduit
• Hub Placement: 90 Degree
• Item Name: Conduit Outlet Body
• Country Of Origin: China
