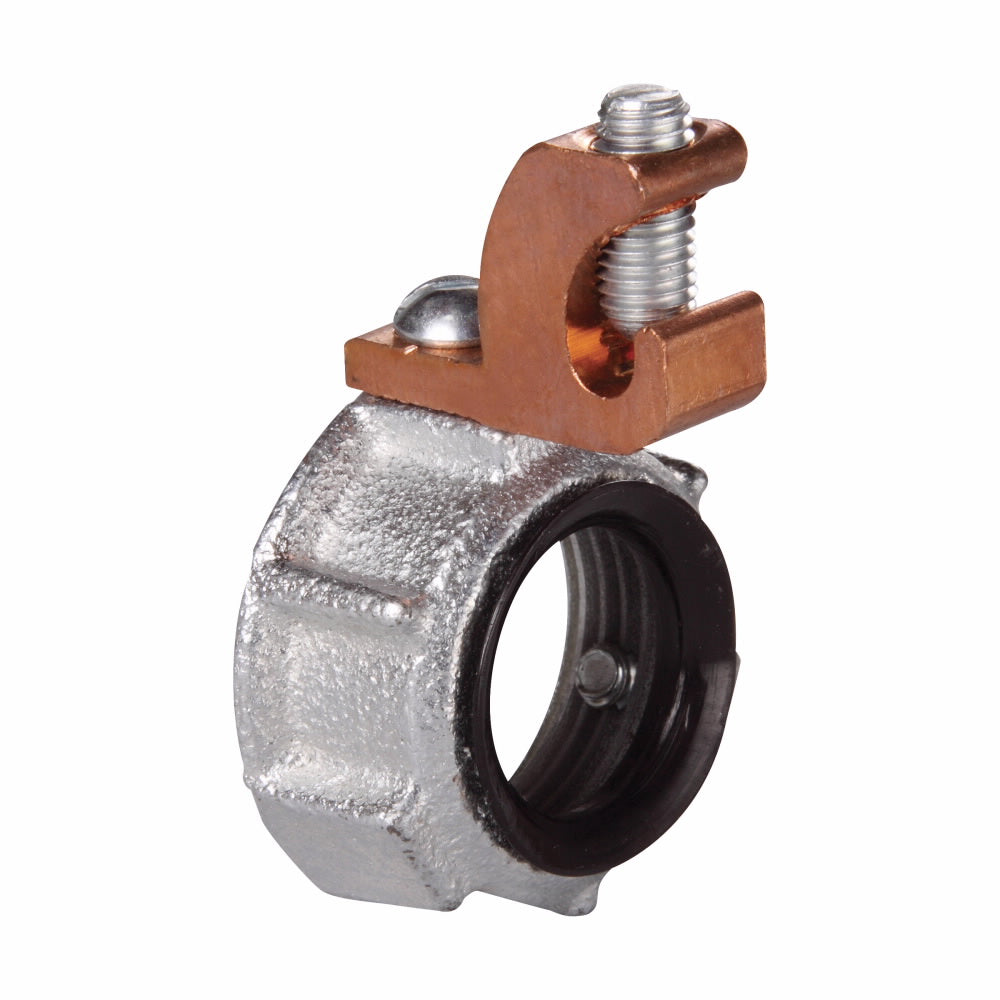

Crouse Hinds HGLL8C 3-IN CU GND LUG

Product Description

The Crouse Hinds HGLL8C is a grounding bushing designed for use in rigid or intermediate metal conduit applications. Constructed with a copper lug, this bushing is compatible with wire sizes from No.1/0 to 8 AWG. The malleable iron body ensures durability while the zinc-plated finish provides resistance to corrosion.

• Application: Suitable for commercial and institutional buildings.
• Temperature Rating: Functions effectively up to 150 degrees Celsius.
• Connection Type: Features a threaded design with set screw for secure attachment.

Product Highlights

This grounding bushing is essential for ensuring reliable grounding in electrical systems. The bushing's robust construction and reliable performance make it a preferred choice among electrical professionals.

Product Information

Standard Information

• Manufacturer: Crouse Hinds
• UPC: 78456411347

Technical Specifications

• Material: Malleable Iron Body; Plastic Throat Liner
• Finish: Zinc Plated
• Size: 3 inches
• Weight: 0.88 pounds
• Application: Commercial / Institutional Buildings
• Dimensions: Four inches by four inches by one inch
• Special Features: Accommodates 8 to 1/0 AWG Copper Lug for Copper Grounding Conductor
• Standard: UL; CUL
• Connection: Threaded; Set Screw
