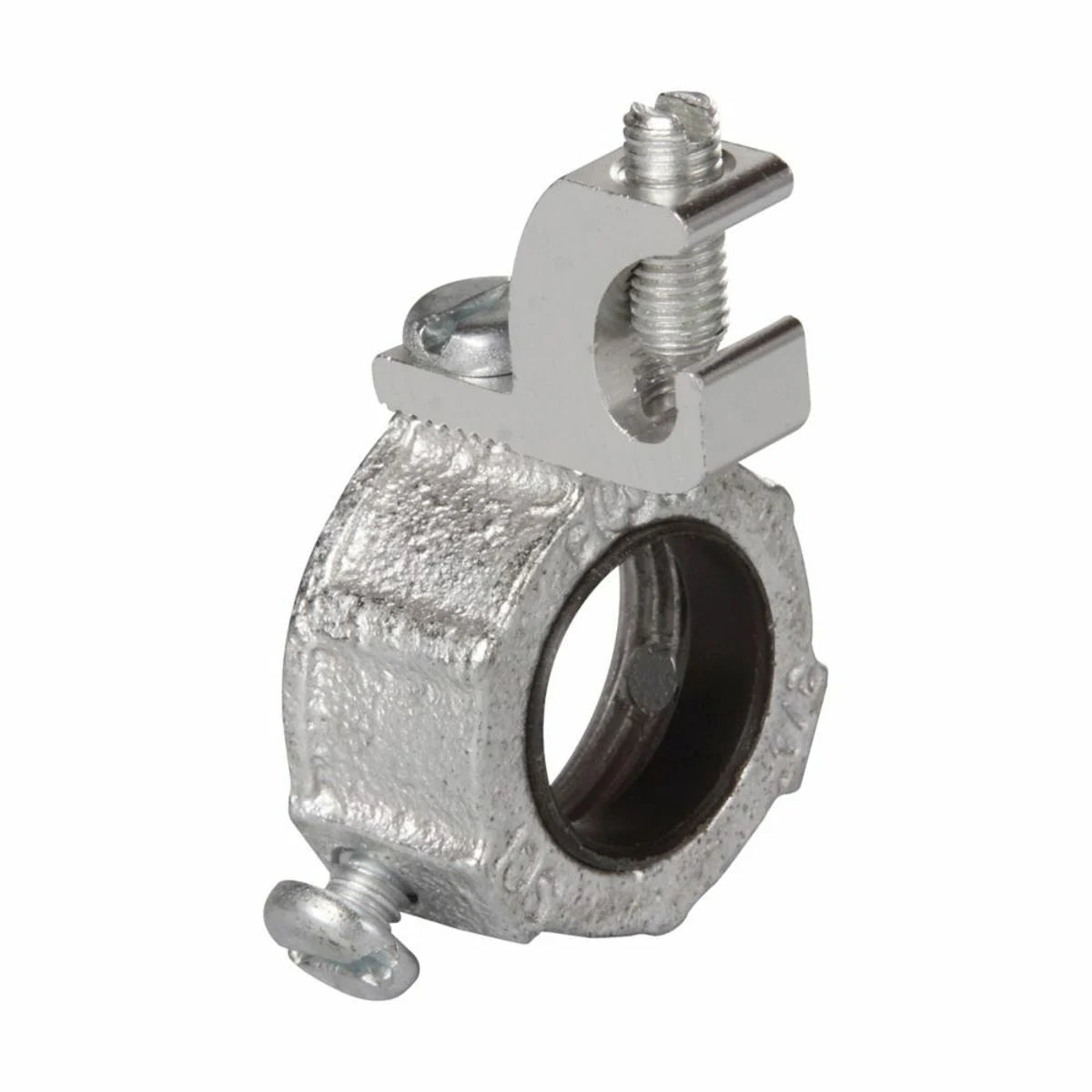

Crouse-Hinds HGLL8 Ground Bushing 3 Inch Insulated

Product Description

The Crouse-Hinds HGLL8 is a grounding bushing designed to connect to threaded and threadless rigid or IMC conduit. The bushing is made of malleable iron and includes an aluminum lug suitable for grounding conductors sized from eight to one-aught AWG. The HGLL8 features an insulated design to ensure safety and efficacy in grounding applications.

• Connects to rigid/IMC conduit
• Insulated design for safety
• Rated for up to 150 degrees Celsius

Product Highlights

This grounding bushing is built for durability and resistance to corrosion, making it suitable for various environments.

Product Information

Standard Information

• Manufacturer: Eaton Crouse-Hinds
• Brand: Crouse-Hinds

Technical Specifications

• Catalog Number: HGLL 8
• Trade Size: 3 inches
• Minimum Wire Size: 8 AWG
• Maximum Wire Size: 1/0 AWG
• Material: Malleable Iron
• Finish: Zinc Plated
• Height: 1 inch
• Length: 4 inches
• Weight: 0.69 pounds
• Connection Type: Threaded, Set Screw
• Temperature Rating: 150 degrees Celsius
