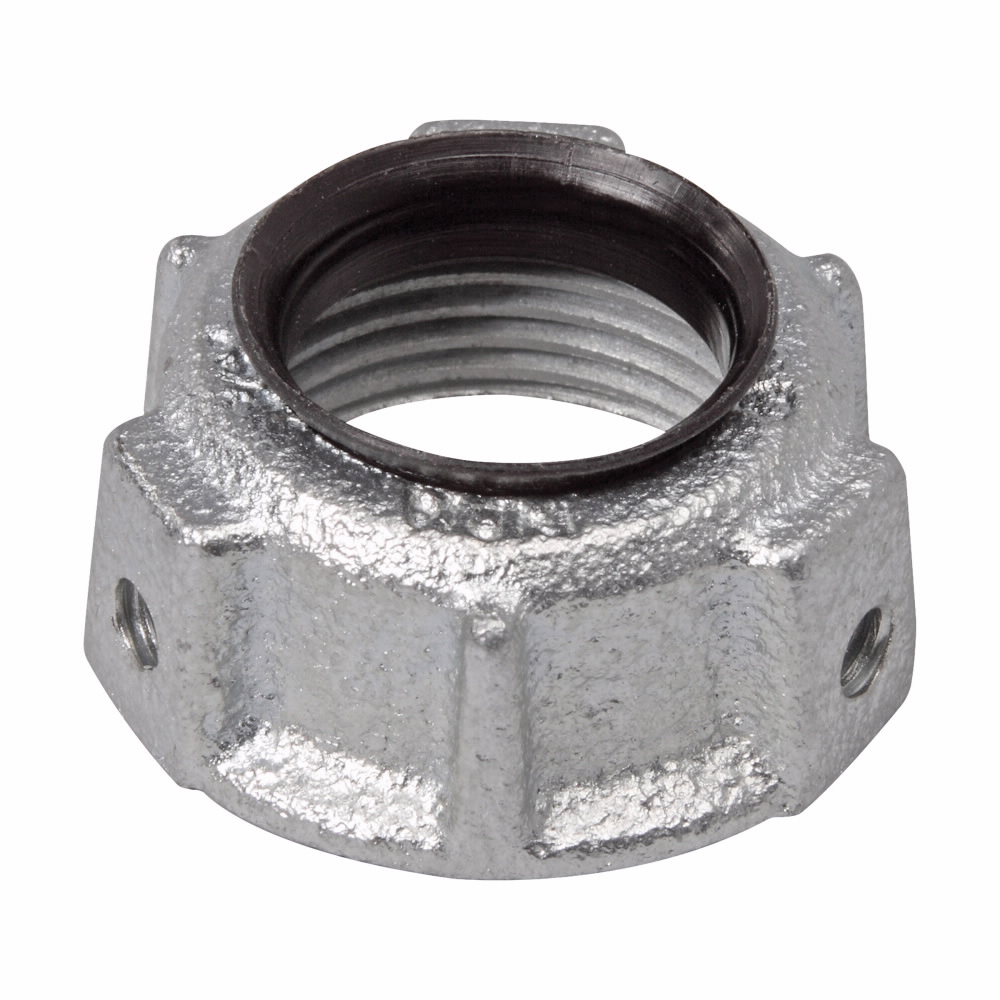

Crouse-Hinds H1032 3/4 Threaded Insulated Throat Bushing Rigid/IMC 150C

Product Description

The Crouse-Hinds H1032 is a 3/4 inch threaded insulated throat bushing made by Eaton. This product is designed for use with rigid and IMC conduit. Its main function is to protect wires from damage caused by sharp edges. The bushing is suitable for applications in commercial and institutional buildings.

• Temperature rating of one hundred fifty degrees Celsius.
• Constructed from malleable iron with a plastic throat liner.
• Complies with UL and CUL standards for safety.

Product Highlights

The H1032 ensures reliability and safety in electrical installations by avoiding wire damage.

Product Information

Standard Information

• Brand: Crouse-Hinds
• Manufacturer: Eaton

Technical Specifications

• Catalog Number: H1032
• Trade Size: 3/4 Inch
• Temperature Rating: 150 Degrees Celsius
• Material: Malleable Iron Body, Plastic Throat Liner
• Finish: Zinc Plated
• Height: 0.688 inches
• Width: 1.25 inches
• Length: 1.25 inches
