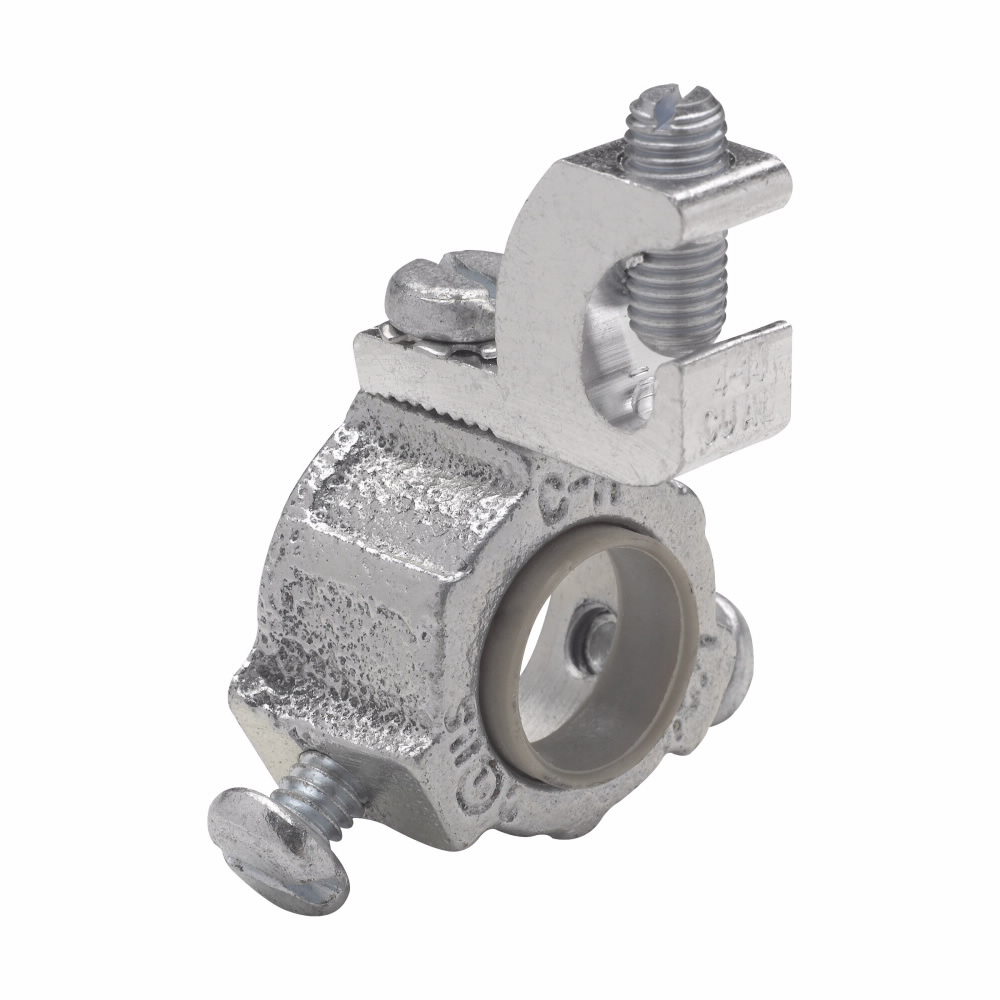

Crouse-Hinds GLS3 Malleable Iron Insulated Threadless Rigid/IMC Bushing

Product Description

The Crouse-Hinds GLS3 is an insulated grounding bushing from Eaton, designed for use with rigid and IMC conduit. This product features a malleable iron construction and accommodates wire sizes from four to fourteen AWG through its aluminum lug. The bushing has a maximum temperature rating of one hundred five degrees Celsius.

• Compatible with threaded and threadless conduit.
• Made of durable malleable iron.
• Meets UL and CSA certification standards.

Product Highlights

The Crouse-Hinds GLS3 grounding bushing is used for grounding conduit through an insulated design and provides a secure connection in commercial and institutional applications.

Product Information

Standard Information

• Brand: Crouse-Hinds
• Manufacturer: Eaton

Technical Specifications

• Catalog Number: GLS3
• Material: Malleable Iron
• Dimensions: 1.63 inches length, 0.75 inches height
• Wire Size Range: 4 AWG to 14 AWG
• Temperature Rating: 105 degrees C
• Connection Type: Set Screw
• Applications: Rigid/IMC Conduit
• Certified Standards: UL, CSA
