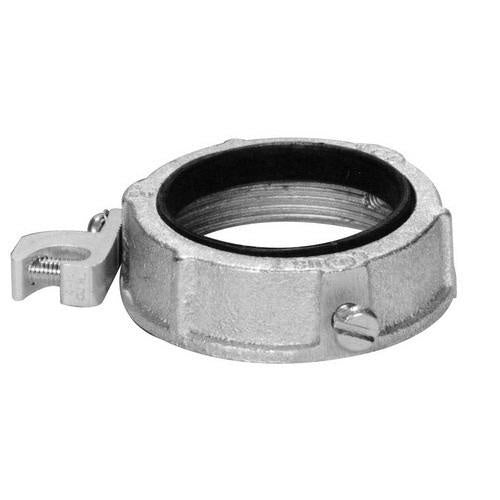

Crouse Hinds GLL8DC Die Cast Zinc Insulated Grounding Bushing 3 Inch

Product Description

The Crouse Hinds GLL8DC is a die cast zinc insulated grounding bushing designed for use with both threaded and threadless rigid and IMC conduit. This product has a trade size of three inches and features a set screw connection. Constructed from durable die cast zinc, it is intended to provide reliable grounding through an insulated bushing, accommodating conductors sized between one/0 and eight AWG.

• Constructed from die cast zinc for increased durability
• Equipped with a plastic throat liner rated for one hundred and five degrees Celsius
• Designed to work with both threaded and threadless conduit

Product Highlights

Ideal for commercial and institutional buildings, the GLL8DC grounding bushing ensures effective grounding while resisting corrosion and temperature extremes, making it suitable for a variety of applications.

Product Information

Standard Information

• Manufacturer: Crouse Hinds
• Country of Origin: India

Technical Specifications

• Material: Die Cast Zinc Body, Plastic Throat Liner
• Connection Type: Threaded x Set Screw
• Temperature Rating: One hundred and fifty degrees Celsius
• Trade Size: Three Inch
• Conductor Range: One/0-8 AWG
• Standards: UL E6225, cUL Certified
• Dimensions: Four inches x Four inches x One inch
• Weight: Zero point forty-two pounds
