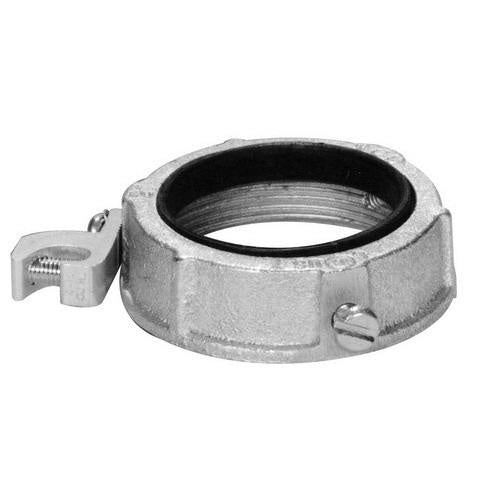

Crouse Hinds GLL7DC Grounding Bushing 2-1/2 Inch

Product Description

Crouse Hinds GLL7DC is a grounding bushing designed for use with rigid or IMC conduit. This product features a trade size of two and one-half inches. It is constructed with a die-cast zinc body and includes an aluminum lug that accepts conductors sized one-aught to eight AWG. The plastic throat liner provides resistance against corrosion and harsh chemicals. This grounding bushing is compliant with UL and cUL standards.

• Grounding bushing for rigid or IMC conduit
• Aluminum lug accepts 1/0-8 AWG conductors
• Die-cast zinc for durability and longevity

Product Highlights

The GLL7DC grounding bushing is ideal for electrical applications in commercial and institutional buildings. It ensures reliable grounding connections, enhancing safety in conduit installations.

Product Information

Standard Information

• Manufacturer: Cooper Crouse Hinds
• Model Number: GLL7DC

Technical Specifications

• Material: Die Cast Zinc
• Connection Type: Threaded x Set Screw
• Trade Size: 2.5 inches
• Temperature Rating: 150 degrees Celsius
• For Use With: Threaded or Threadless Rigid/IMC Conduit
• Conductor Range: 1/0-8 AWG
• Weight: 0.36 pounds
• Dimensions: 3.31 inches x 3.31 inches x 1 inch
