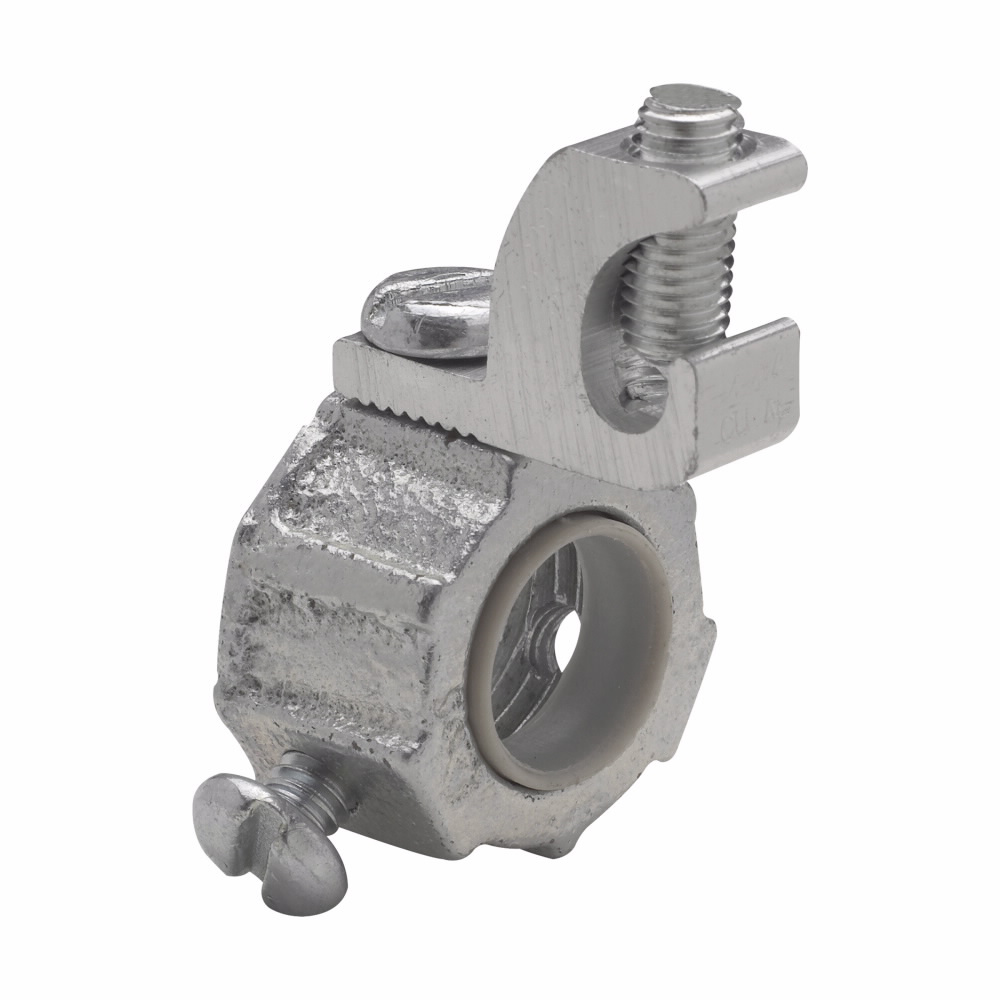

Crouse-Hinds GLL6 2 Malleable Iron 105 Degrees C Insulated Threaded Rigid/IMC Bushing GLL6

Product Description

The Crouse-Hinds GLL6 is a grounding bushing designed for use with rigid and IMC conduit systems. This product features a malleable iron construction and accommodates aluminum lugs for wire sizes ranging from four to fourteen AWG. It has a temperature rating of one hundred five degrees Celsius and provides a threaded connection to ensure secure installation.

• Material: Malleable Iron
• Wire Size Compatibility: #4-14 AWG
• Applications: Rigid/IMC conduit systems

Product Highlights

This bushing is ideal for grounding applications, allowing for reliable connection of grounding conductors. It supports easy installation in commercial and institutional settings.

Product Information

Standard Information

• Catalog Number: GLL 6
• Manufacturer: Eaton Crouse-Hinds

Technical Specifications

• Type: Insulated
• Size: 2 Inch
• Height: 0.88 Inch
• Length: 2.75 Inch
• Weight: 0.26 lb
• Material: Malleable Iron Body, Plastic Throat Liner
• Application: Commercial / Institutional Buildings / Structures
• Temperature Rating: 105 Degrees Celsius
• Connection Type: Threaded
• UPC: 784564123060
• GTIN: 00784564123060
