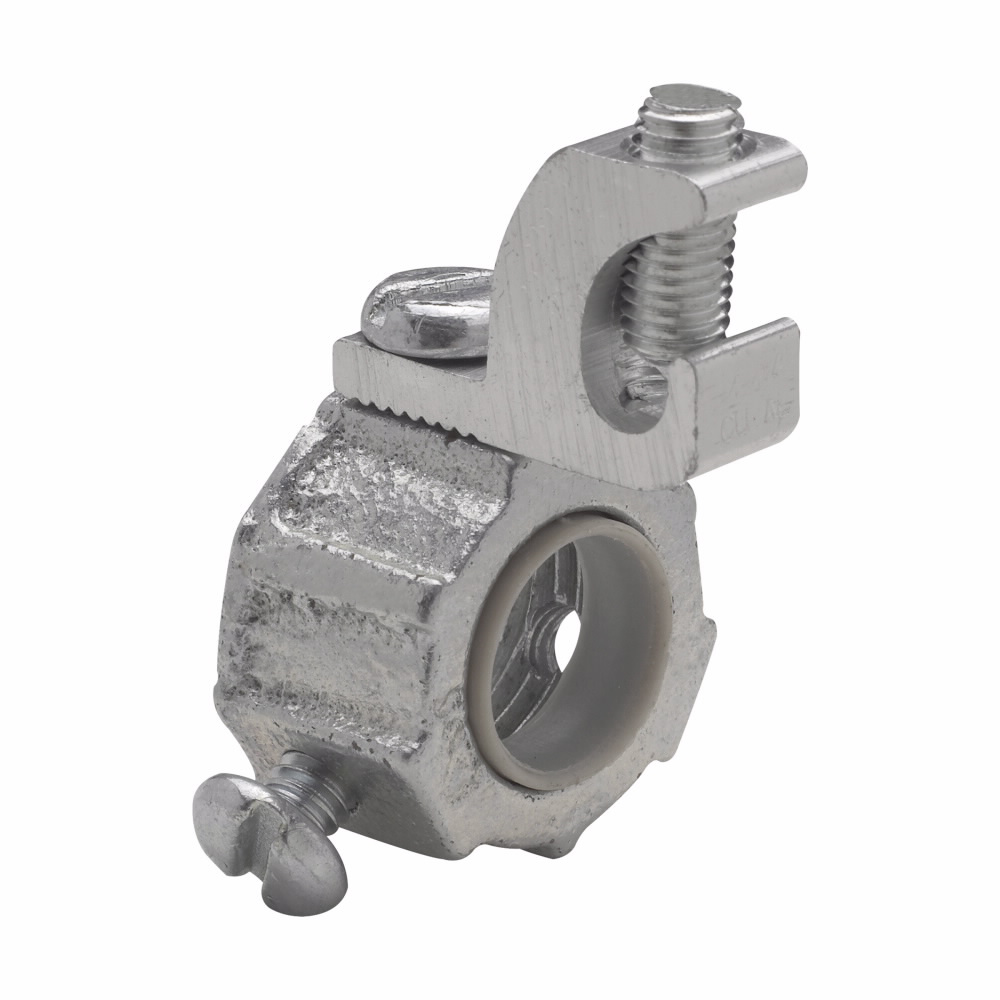

Crouse-Hinds GLL5 1-1/2 Insulated Ground Bushing Rigid/IMC

Product Description

The Crouse-Hinds GLL5 is an insulated grounding bushing designed for use with rigid or intermediate metal conduit (IMC). It features a threaded connection and is suitable for use with a range of wire sizes from #4 to 14 AWG. Made from malleable iron, this bushing has a temperature rating of one hundred five degrees Celsius.

• Rated for rigid/IMC applications.
• Threaded connection for easy installation.
• Use with aluminum lugs for reliable grounding.

Product Highlights

This grounding bushing provides a secure means to ground conduits effectively, ensuring compliance with electrical safety standards.

Product Information

Standard Information

• Brand: Crouse-Hinds
• Manufacturer Part Number: GLL5

Technical Specifications

• Connection Type: Threaded
• Material: Malleable Iron
• Trade Size: 1-1/2 inches
• Temperature Rating: 105 degrees Celsius
• Wire Size Range: #4-14 AWG
• Applications: Rigid/IMC conduit
• Weight: 0.24 pounds
• Sub Brand: Lazy-Lug
