Crouse Hinds GLL3DC Insulated Grounding Bushing 1-Inch

Product Description

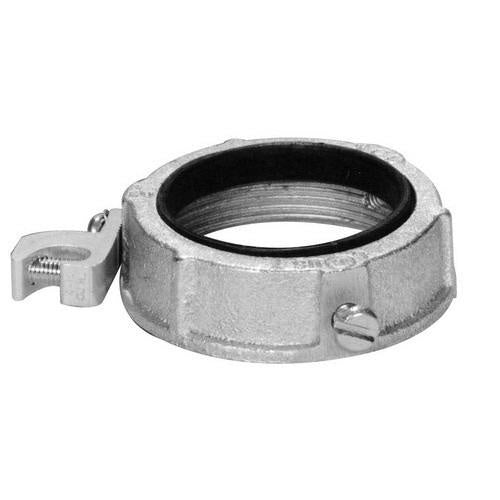

The Crouse Hinds GLL3DC is an insulated grounding bushing designed for use with both threaded and threadless rigid/IMC conduit. This 1-inch grounding bushing is made from die-cast zinc, providing strength and durability. It includes a set screw connection and an aluminum lug that accommodates conductors ranging from fourteen to four AWG. The plastic throat liner is resistant to corrosion and chemicals, ensuring longevity in various conditions.

• Suitable for threaded and threadless rigid/IMC conduit
• Die-cast zinc construction for durability
• Accepts 14-4 AWG conductors with an aluminum lug

Product Highlights

This grounding bushing is UL and cUL listed, confirming its safety and effectiveness in commercial applications.

Product Information

Standard Information

• Manufacturer: Cooper Crouse Hinds
• MPN: GLL3DC

Technical Specifications

• Material: Die Cast Zinc Body, Steel Screw, Aluminum Lug
• Conductor Range: 14-4 AWG
• Connection Type: Threaded x Set Screw
• Temperature Rating: 150 deg C
• Trade Size: 1 Inch
• Dimensions: 1.63 inches x 1.63 inches x 0.75 inches
• Applications: Commercial/Institutional Buildings, Structures
• Standards: UL E6225, cUL Certified
