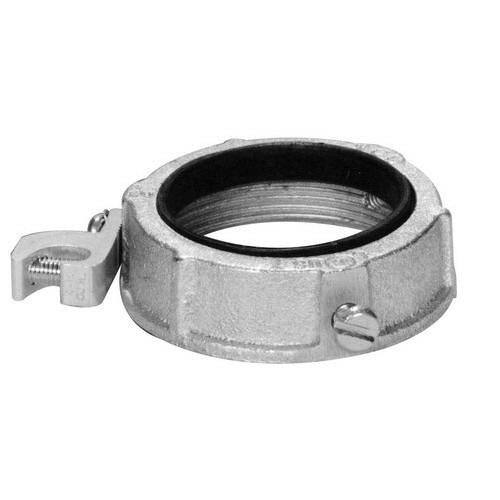

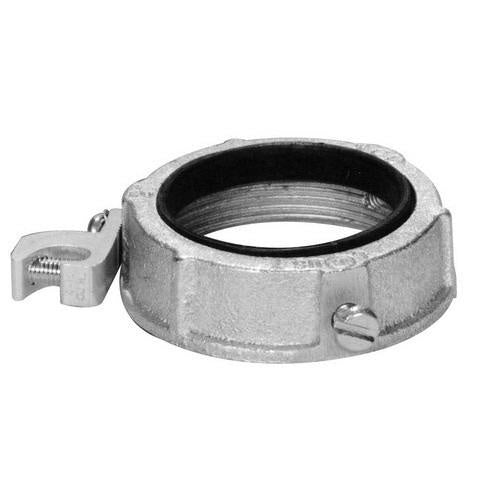

Crouse Hinds GLL1DC Insulated Grounding Bushing 1/2 Inch

Product Description

The Crouse-Hinds GLL1DC is an insulated grounding bushing designed for use with both threaded and threadless rigid/IMC conduit. This product features a trade size of one-half inch and is constructed with a die-cast zinc body for improved durability.

• Accepts conductor sizes from fourteen to four AWG
• Designed with a set screw connection for secure attachment
• UL and cUL certified for safety and reliability

Product Highlights

This grounding bushing includes a resilient plastic throat liner that resists corrosion and temperature extremes, making it suitable for a variety of applications, especially in commercial and institutional buildings.

Product Information

Standard Information

• Manufacturer: Cooper Crouse Hinds
• MPN: GLL1DC

Technical Specifications

• Material: Die Cast Zinc
• Connection Type: Threaded x Set Screw
• Conductor Range: 14-4 AWG
• Temperature Rating: 150 Deg C
• Dimensions: 1.0600 inches x 1.0600 inches x 0.6900 inches
• Standards: UL E6225, cUL Certified
• Country Of Origin: India
