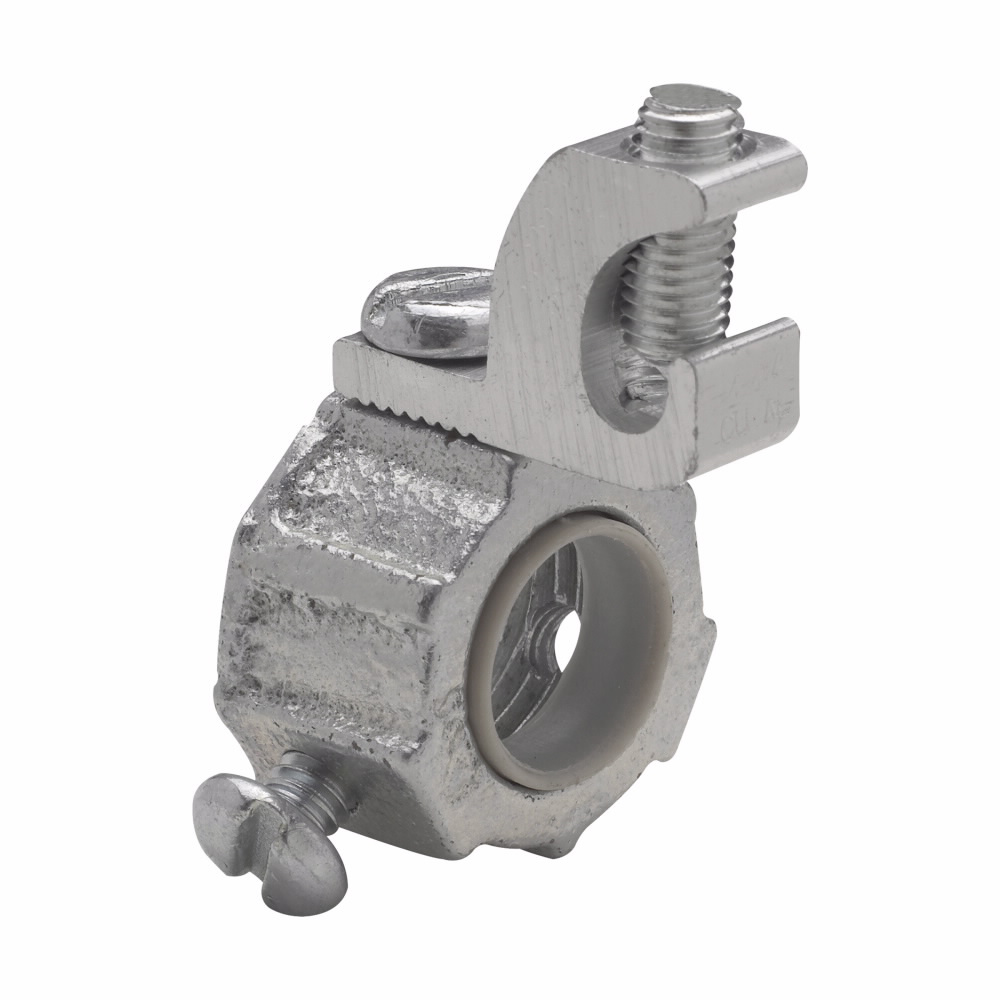

Crouse-Hinds GLL10250 4 Inch Malleable Iron Lazy-Lug Ground Bushing

Product Description

Crouse-Hinds GLL10250 is a four-inch grounding bushing designed for use with threaded and threadless rigid and IMC conduit. This product features a malleable iron body, providing strength and durability suited to various commercial and industrial applications. The bushing is rated to accommodate wire sizes from six to two hundred fifty kcmil. It includes an aluminum lug that is suitable for both copper and aluminum grounding conductors.

• Threaded connection for reliable mounting
• Insulated throat liner for protection against electrical conductivity
• Operating temperature rated at 105 degrees Celsius

Product Highlights

The Crouse-Hinds GLL10250 grounding bushing is ideal for ensuring effective grounding of conduits. Its design allows for easy installation into electrical fittings, contributing to applications that require robust grounding solutions in commercial and institutional structures.

Product Information

Standard Information

• Brand: Crouse-Hinds
• Manufacturer: Eaton

Technical Specifications

• Catalog Number: GLL10 250
• Type: Insulated
• Material: Malleable Iron
• Trade Size: 4 inches
• Temperature Rating: 105 degrees C
• Weight: 1.2 pounds
• UPC: 784564123206
• GTIN: 00784564123206
