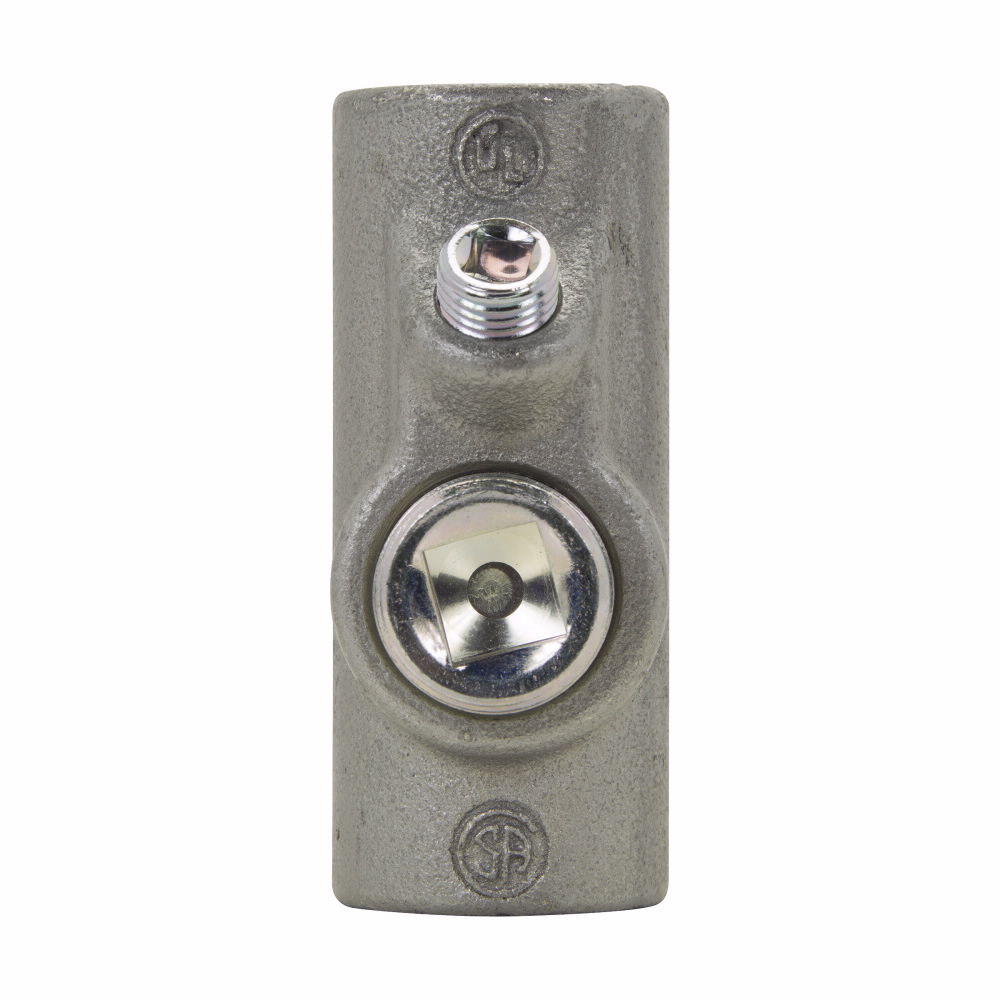

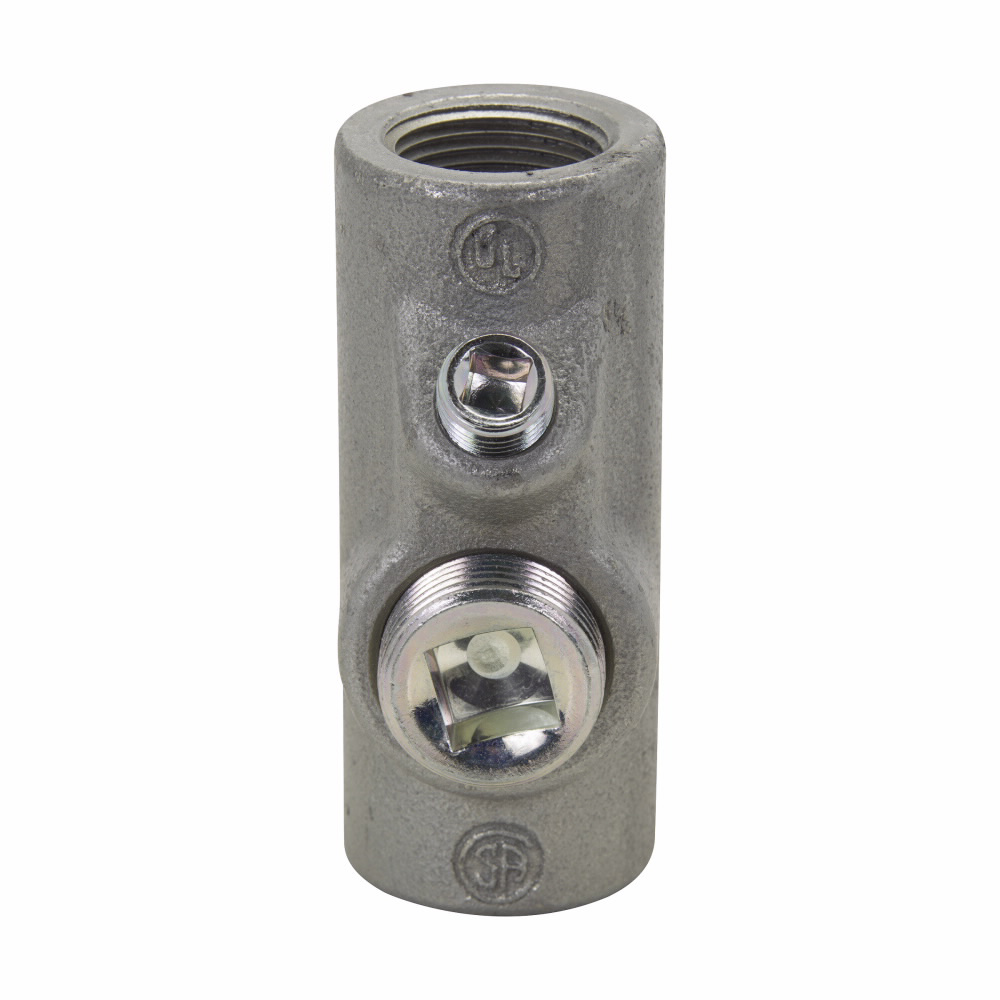

Crouse-Hinds EYS21 Female Hub Conduit Sealing Fitting 3/4 in NPT

Product Description

The Crouse-Hinds EYS21 is a conduit sealing fitting designed for various applications in conduit systems. This fitting is made from Feraloy iron alloy and/or ductile iron, allowing it to be used in vertical or horizontal positions. The EYS21 is Group B rated and suitable for use with three fourths inch conduit. It is part of the Eaton Crouse-Hinds range, known for its reliability and safety in hazardous locations.

• Female threaded connection
• Class I Division 1 and 2 rated
• Limits gas, vapor, and flame passage

Product Highlights

This conduit sealing fitting provides excellent protection against environmental hazards. It supports a minimum turning radius and features integral bushings that safeguard conductor insulation.

Product Information

Standard Information

• Brand: Crouse-Hinds
• Manufacturer: Eaton

Technical Specifications

• Type: Female Hub
• Trade Size: 3/4 inch NPT
• Material: Feraloy iron alloy/Ductile iron
• Finish: Electro-galvanized/Aluminum acrylic painted
• Applications: Conduit systems
• Enclosure: Class I Div 1 2 Group A B C D, Class II Div 1 Group E F G, Class II Div 2 Group F G, Class III
• Dimensions: three and twelve sixteenths inches high x one and one half inches wide
• UPC: 782274378602
