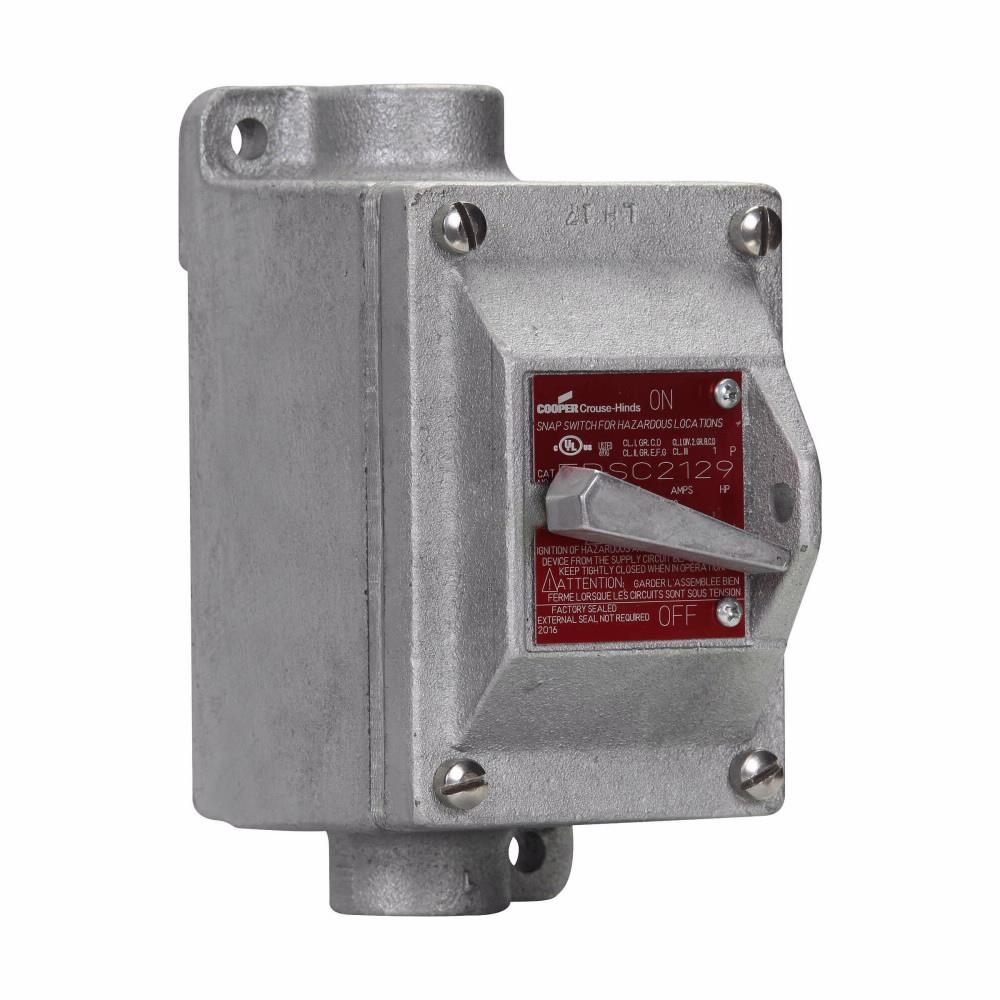

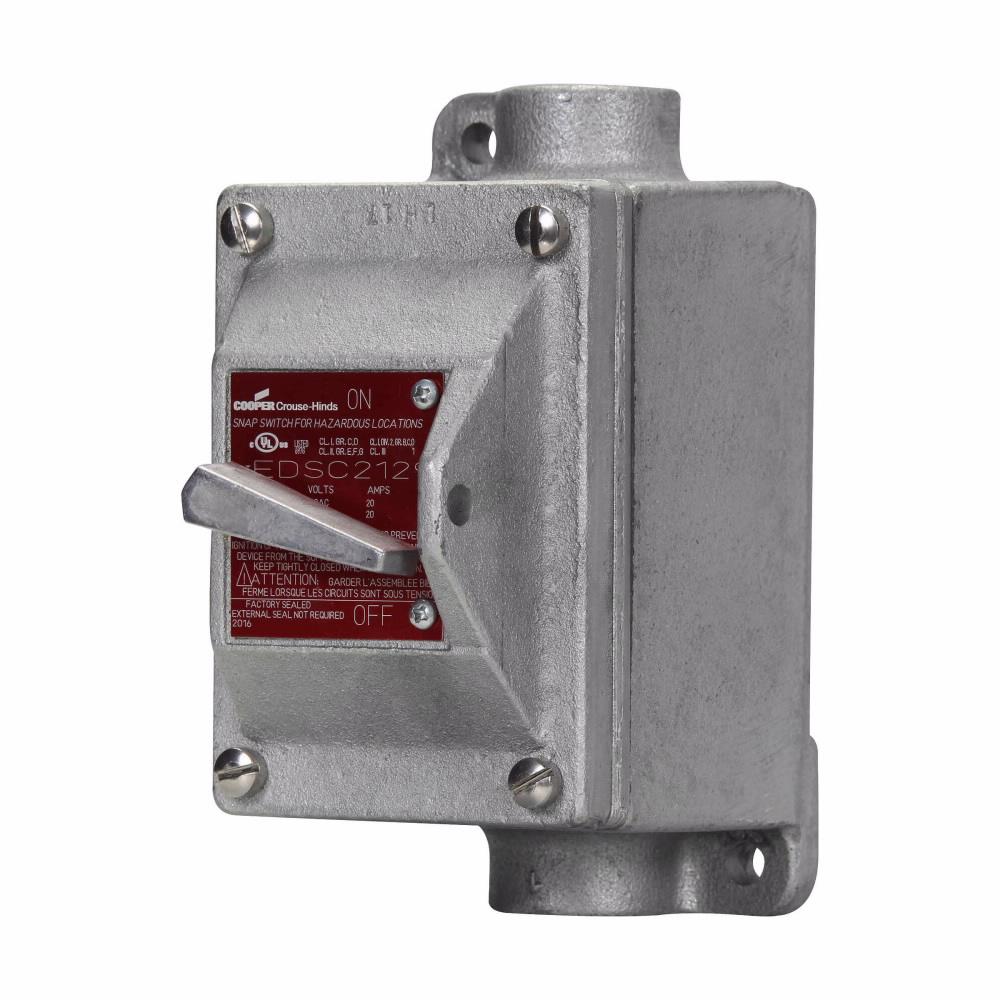

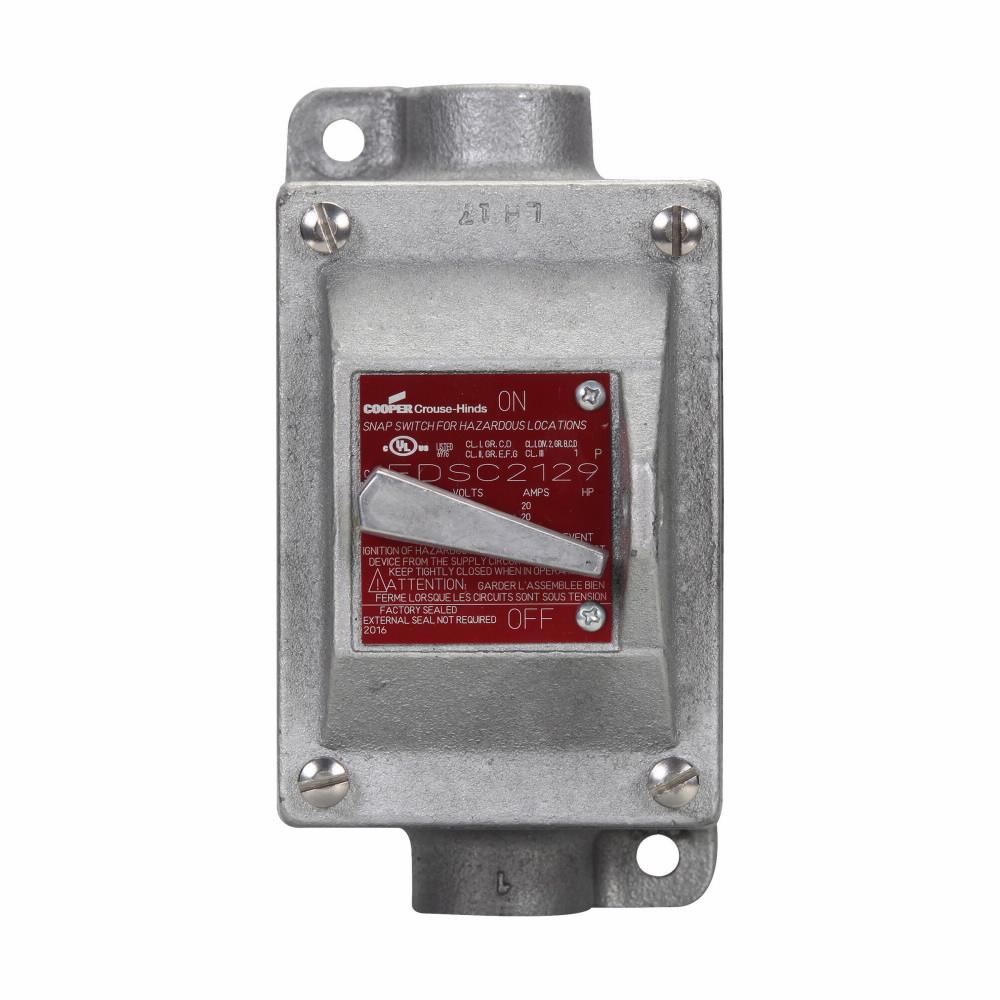

Crouse-Hinds EDSC2129 Snap Switch Control Station 120/277 VAC 1-Gang Factory Sealed Feed-Through

Product Description

The Crouse-Hinds EDSC2129 is a snap switch control station designed for industrial use. This 1-gang factory sealed feed-through control station operates at 120/277 VAC and has a rating of 20 A. It features a front-operated button for easy accessibility and is suitable for use in hazardous locations.

• 1-gang factory sealed enclosure
• NEMA rating of 3, 7BCD, and 9EFG
• Constructed from Feraloy iron alloy

Product Highlights

This control station is designed to ensure safety in environments where explosive gases or dust may be present. It helps prevent arcing and ignition of hazardous atmospheres.

Product Information

Standard Information

• Manufacturer: Eaton
• Brand: Crouse-Hinds

Technical Specifications

• Connection Type: Thread
• Dimensions: 5-7/8 inches L x 3-1/2 inches W x 2-11/16 inches H
• Finish: Electro-Galvanized/Aluminum Acrylic Painted
• Material: Feraloy iron alloy
• Mounting Type: Surface
• Number of Poles: 1
• Operator Type: Front Operated Button
• Series: EDS
• Type: 1-Gang Factory Sealed Feed-Through
• Voltage Rating: 120/277 VAC
• Amperage Rating: 20 A
• Number of Operators: 1
• NEMA Rating: NEMA 3/7BCD/9EFG
