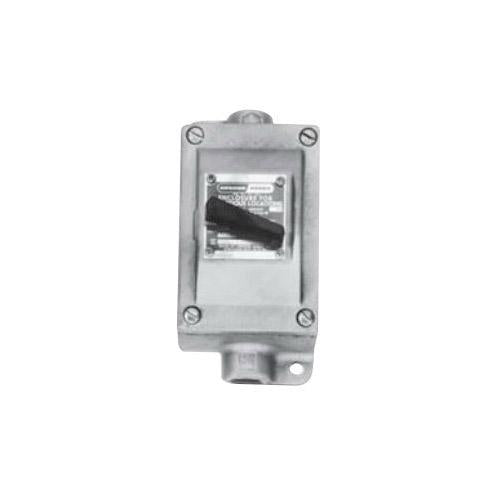

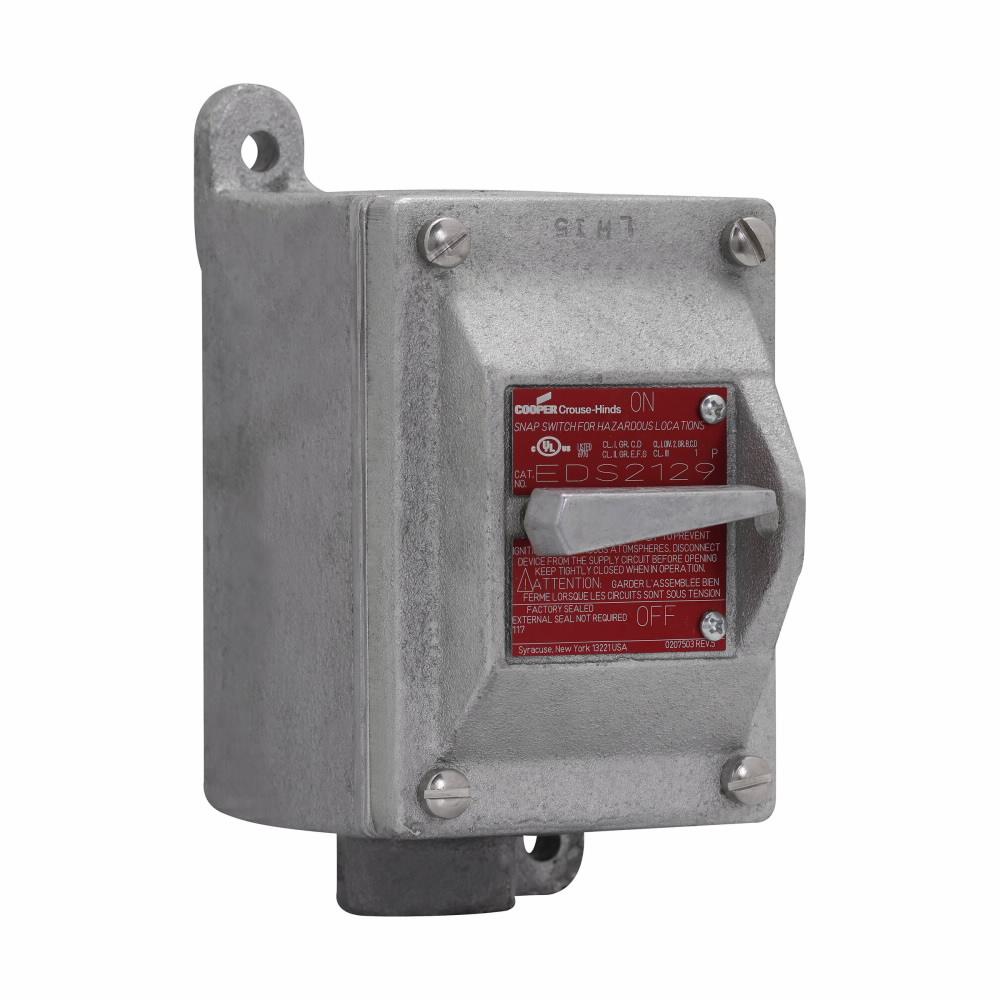

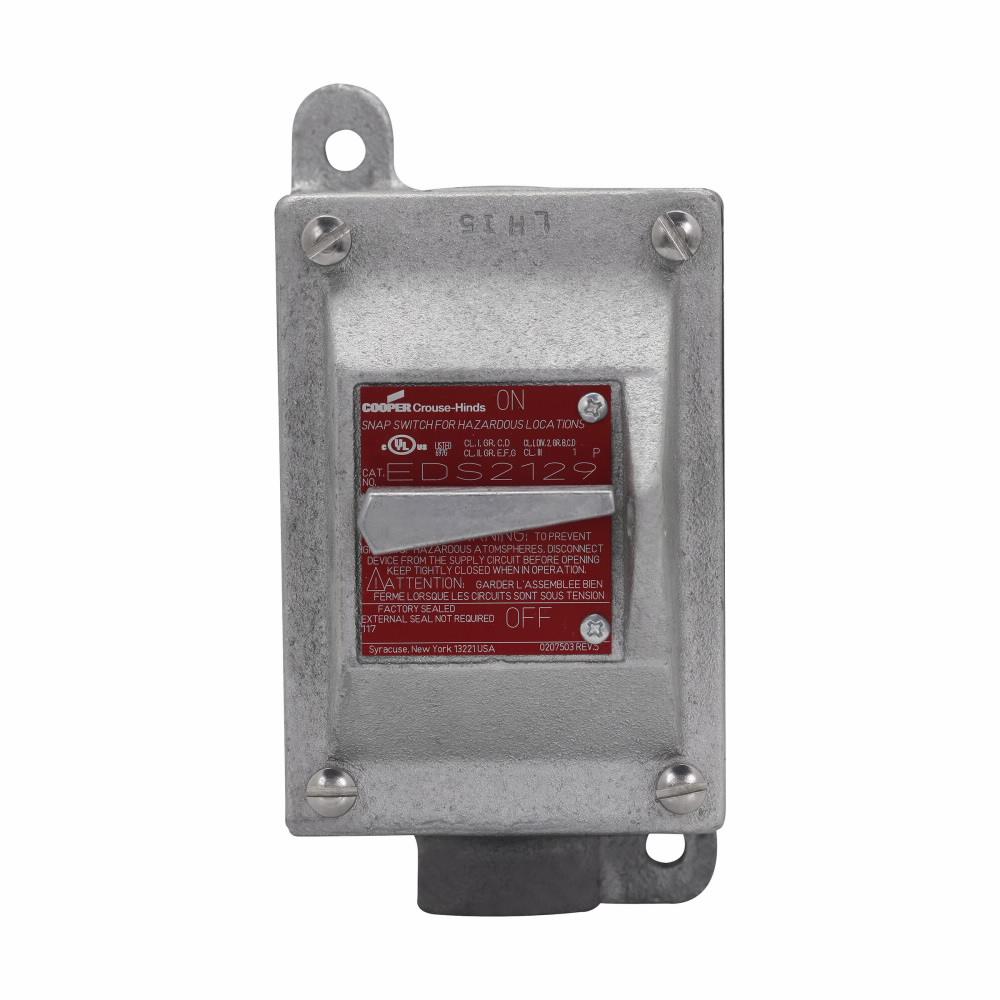

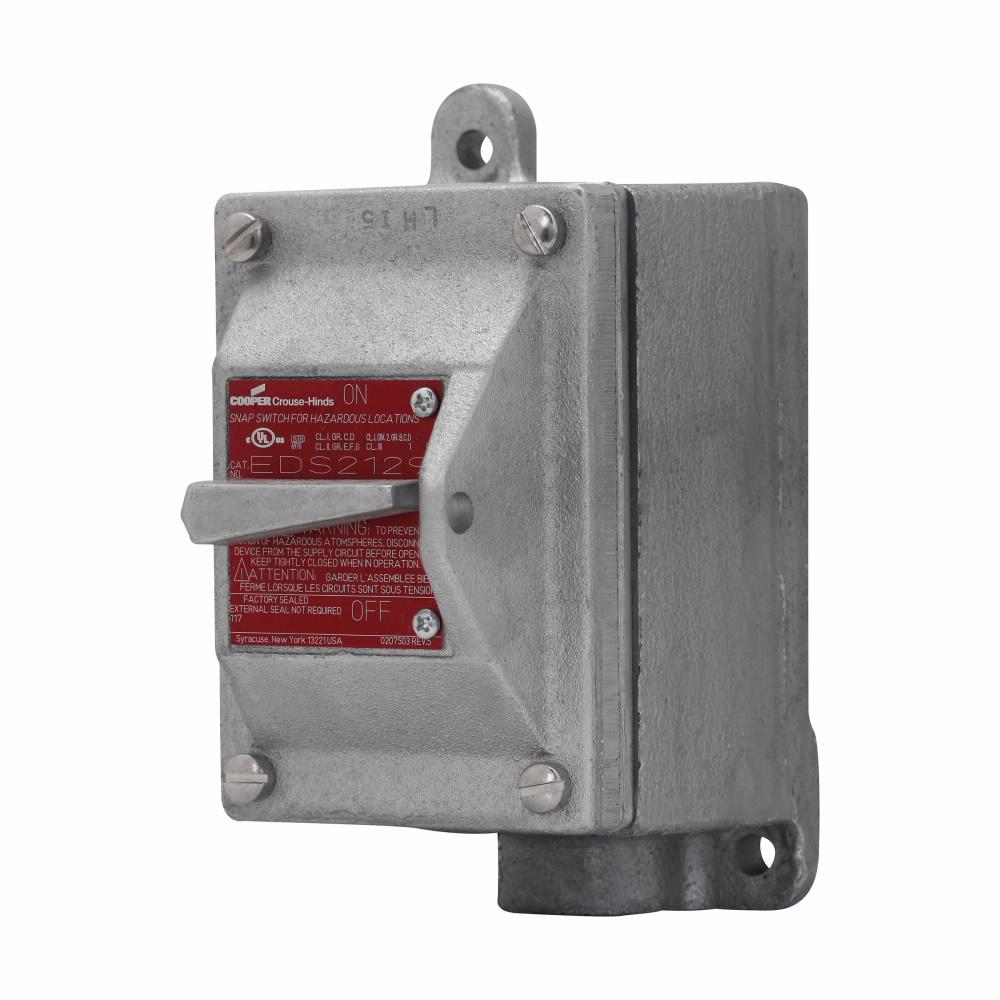

Crouse-Hinds EDS2130 Snap Switch Control Station 120 to 277 VAC 1-Gang 3-Pole 3-Way Dead End

Product Description

The Crouse-Hinds EDS2130, manufactured by Eaton, is a factory-sealed snap switch control station designed for use in hazardous environments. It operates at a voltage range of 120 to 277 VAC with a maximum current rating of 20 Amperes. This control station is ideal for applications that require high safety standards and durability.

• 1-Gang 3-Pole 3-Way Dead End design
• NEMA Rating: 3/7B/7C/7D/9E/9F/9G
• Constructed from Feraloy Iron Alloy with electro-galvanized finish

Product Highlights

This control station provides robust performance in various industrial applications. It is designed to prevent arcing and ensure safety when operating electrical motors.

Product Information

Standard Information

• Manufacturer: Eaton
• Brand: Crouse-Hinds

Technical Specifications

• Type: 1-Gang 3-Pole 3-Way Dead End Factory Sealed
• Voltage Rating: 120 to 277 VAC
• Amperage Rating: 20 A
• Dimensions: 5-7/8 in L x 3-1/2 in W x 3-1/16 in H
• Material: Feraloy Iron Alloy
• Finish: Electro-Galvanized/Aluminum Acrylic Painted
• Mounting Type: Surface
• Operator Type: Front
• NEMA Rating: NEMA 3/7B/7C/7D/9E/9F/9G
• Connection Type: Thread
• Number of Poles: 3
