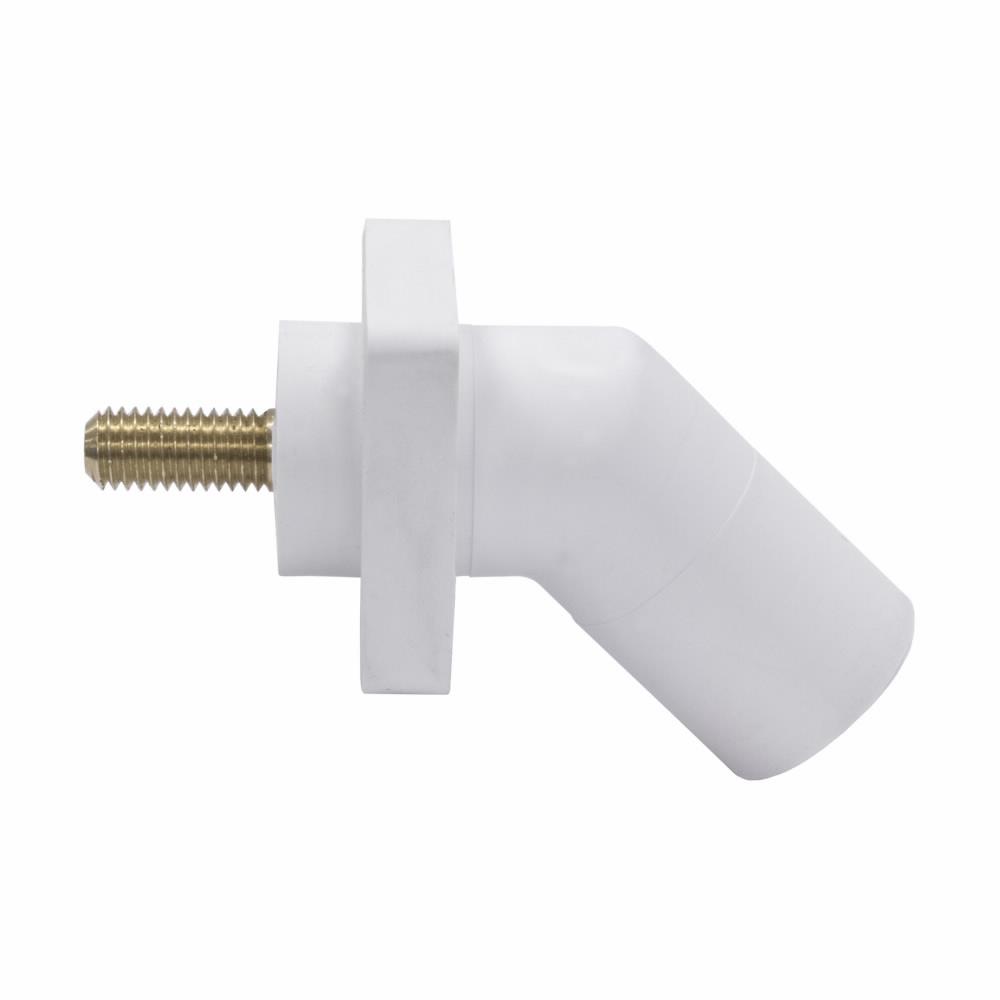

Crouse-Hinds E1016-1632S45 Cam-Lok J Series E1016 F R 45deg

Product Description

The Crouse-Hinds E1016-1632S45 is a Cam-Lok J Series insulated receptacle designed for easy connection and disconnection of power systems. This receptacle supports up to 400 amperes and is compatible with wire sizes ranging from #2 AWG to 4/0. It features a thermoplastic elastomer body and a threaded stud connection for secure attachment. The receptacle operates at a voltage of 600 volts AC or DC and is suitable for both indoor and outdoor applications.

• Supports up to 400 A continuous
• Compatible with wire sizes #2 AWG-4/0
• Constructed from thermoplastic elastomer for durability

Product Highlights

This receptacle is ideal for industrial facilities and power distribution applications. Its design allows quick disconnects, making it a reliable choice for various power systems.

Product Information

Standard Information

• Manufacturer: Crouse-Hinds
• Brand: Eaton

Technical Specifications

• Catalog Number: E1016-1632S45
• Voltage Rating: 600 VAC/VDC
• Amperage: 400 Amp
• Material: Thermoplastic elastomer
• Wire Size: 6 AWG to 250 MCM
• Connection Type: 1-1/8 inch Threaded Stud
• Number of Poles: 1
• Temperature Rating: -40 to 105 C
• Color: Yellow
• Special Features: NEMA 3R Enclosure
• Country of Origin: United States
