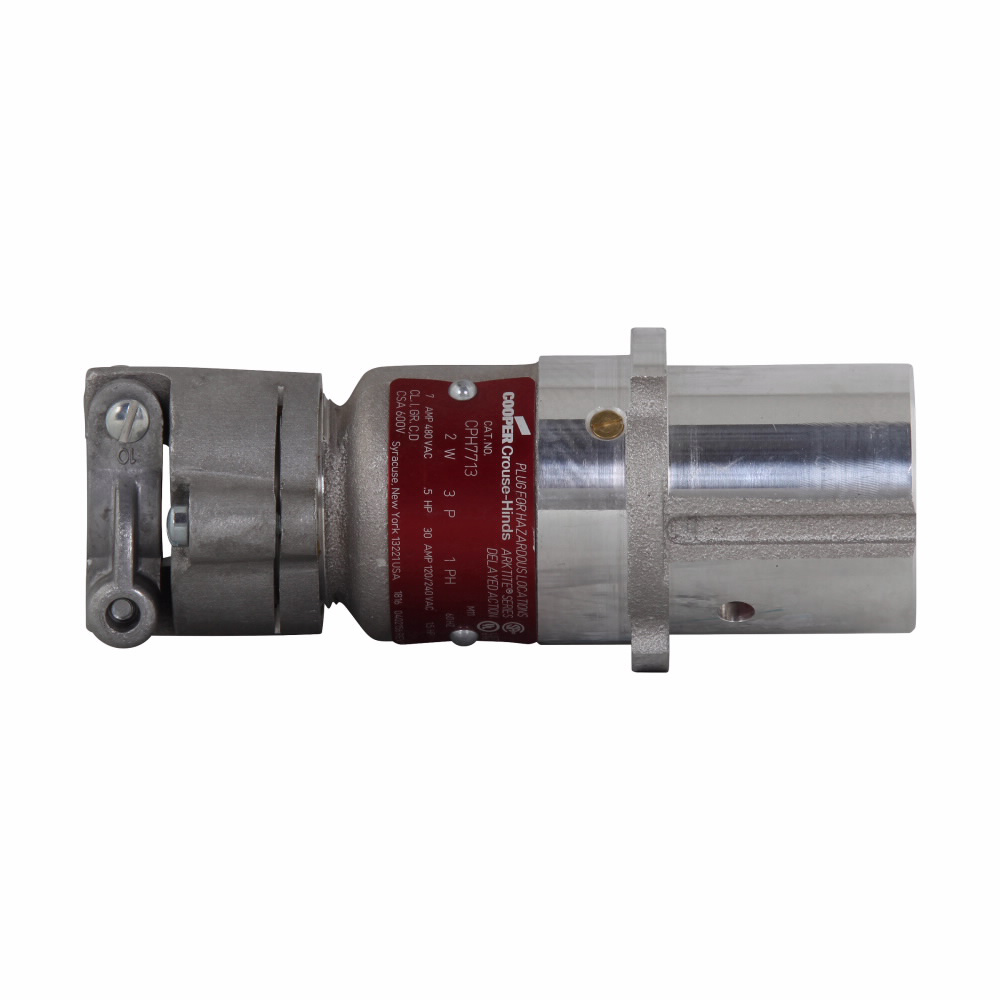

Crouse-Hinds CPH7713 Pin and Sleeve Plug 30 Amp 2 Wire 480 Volt

Product Description

The Crouse-Hinds brand model CPH7713 is a pin and sleeve plug designed for use in industrial applications. It operates at 480 volts and supports a current of up to 30 amps. This plug features a mechanical cable grip and neoprene bushing, making it suitable for use with various portable electrical devices. It is applicable in hazardous locations where flammable vapors or gases might exist.

• Suitable for industrial settings like petroleum refineries and chemical plants
• Compatible with cables from zero point three seven five to zero point eight seven five inches in diameter
• Offers grounding style one and watertight construction

Product Highlights

This plug ensures reliability and safety in demanding environments.

Product Information

Standard Information

• Manufacturer: Crouse-Hinds
• Catalog Number: CPH7713

Technical Specifications

• Voltage Rating: 480 Volt
• Amperage Rating: 30 Amp
• Number of Poles: 3
• Number of Wires: 2
• Material: Copper-free aluminum
• Size: four and one eighth inches in diameter by ten and one eighth inches in length
• NEMA Rating: NEMA 4
• Standards/Approvals: UL 514, UL 1010, UL 1682, CSA C22.2
