Crouse Hinds CGE193 Cge193 1/2 .250-.375 Wt Conn

Product Description

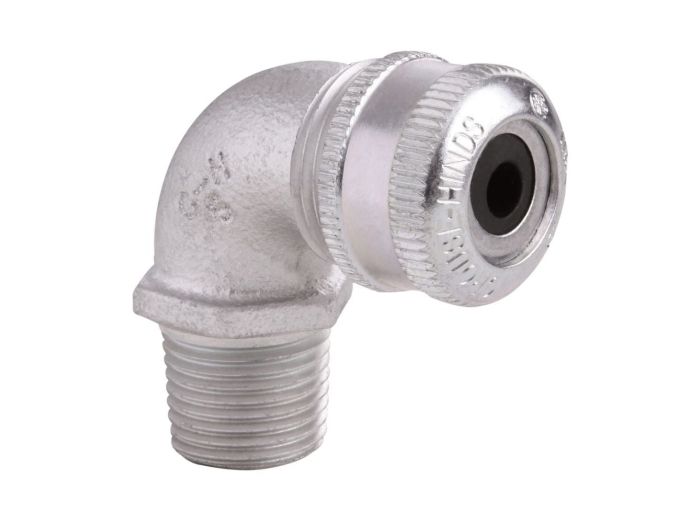

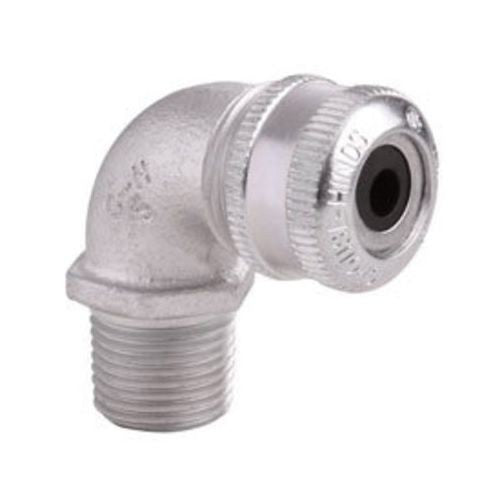

The Eaton Crouse-Hinds CGE193 cable gland has a cable range of 0.250-0.375 inches and a 1/2IN NPT. It is designed for non-armoured and tray cables with a 90-degree angle. Constructed from Feraloy iron alloy, this general-purpose gland is suitable for use in Class I Div 2 hazardous locations and wet locations.

• Cable range min/max: 0.250-0.375IN
• Non-armoured and tray cable
• 90DEG angle

Product Highlights

This cable gland provides environmental sealing and secure termination for flexible cord, unarmoured cable, or flexible conduit.

Product Information

Standard Information

• Brand: CROUSE HINDS
• Manufacturer Part Number: CGE193

Technical Specifications

• Size: 1/2 In
• Type: Bushing Grip with Strain Relief
• Finish: Electrogalvanizing
• Material: Aluminum/Neoprene
• Standard: UL; CUL
• Enclosure: Class I Div 2
• Sub Brand: Crouse-Hinds series
• Brand Name: Eaton
• Connection: Male NPT
• Application: Ind Facilities -N- Factories - Industrial Facilities/Factories - Other
• Family group: FITTINGS
• Manufacturer: CROUSE HINDS
• Special Features: Non-Armored Gland; Cord Size 0.250 To 0.375 In
• Temperature Rating: -25 To 40 Deg C
• Trade Size: 1/2 in
• Catalog ID: CHNCGE193
• Connector Type: Bushing
• Thread Type: NPT
• Number of Pieces: 1
• Manufacturer Part Number: CGE193
• Product Series: CGE
• Family Series: Eaton's Crouse-Hinds series Cable Entries, CGE Series
• Description: Eaton Crouse-Hinds series CGE cable gland, Cable range min/max: 0.250-0.375, Non-armoured and tray cable, 90° angle, Non-armoured gland, Feraloy iron alloy, General purpose, 1/2 NPT
• Hub Size: 1/2 NPT
• Number of Cables: 1
• Cable Style: Round
• Angle: 90 Degrees
• Split Frame: No
• Cable Diameter Range: 0.25-0.38 "
• Composition: Metallic
• Hazardous Location: No
• Approvals: cUL, UL
• Diameter: 1/2 in
• Diameter Range: 0.250 - 0.375 in
• UPC: 782274142005
