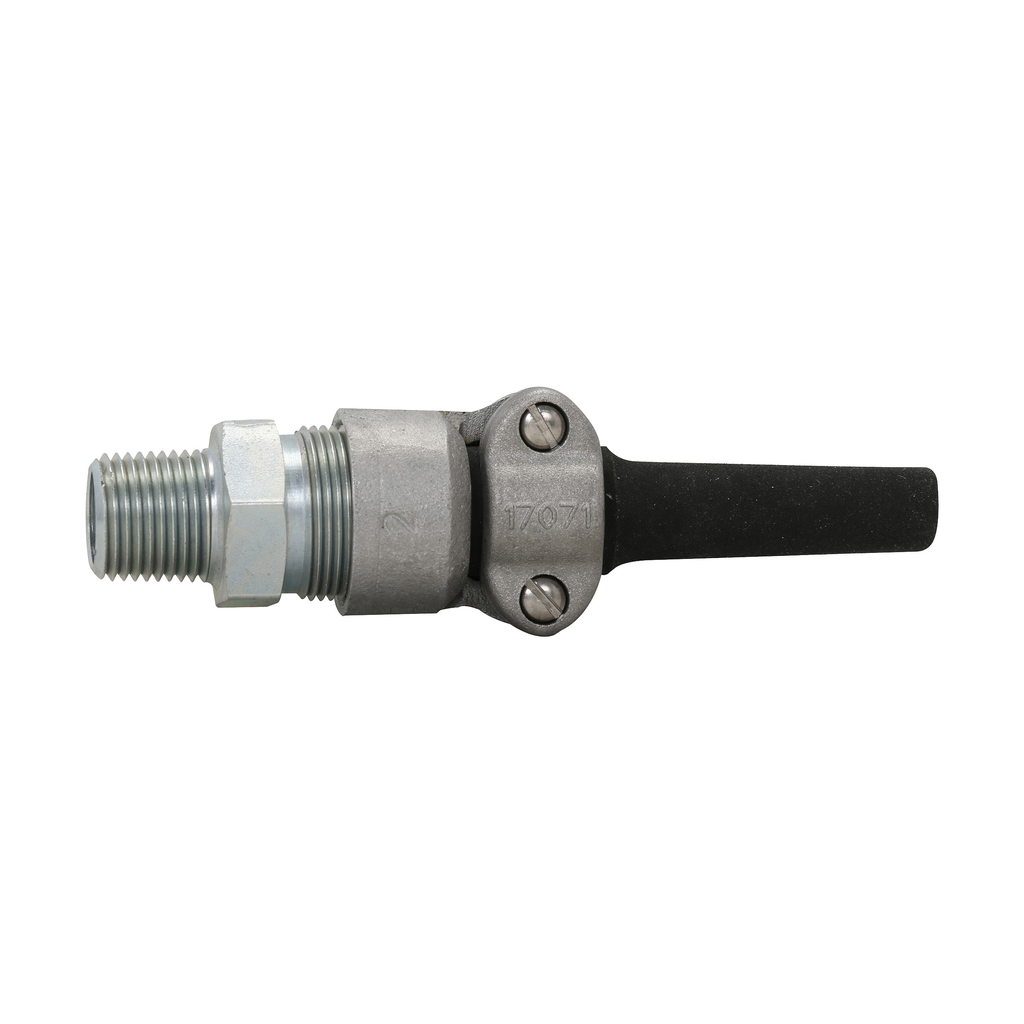

Crouse-Hinds CGBS3016 Explosionproof Portable Straight Cord Connector, 1 in Trade, 5/8 to 3/4 in Cable Openings

Product Description

The Crouse-Hinds CGBS3016 is an explosionproof portable straight cord connector designed for non-armoured cables. This fitting is suitable for 0.625 to 0.750 inch outer sheaths and features a one-inch National Pipe Thread (NPT) connection. It is built from steel and is zinc electroplated for durability.

• Compatible with various cable types including PLTC, SE, TC, and UF.
• Temperature rating ranges from -25 to 40 degrees Celsius.
• Meets Class I Division 1 standards for hazardous locations.

Product Highlights

This connector is made to facilitate the connection of non-armoured and tray cables in hazardous areas, providing reliable performance in challenging environments.

Product Information

Standard Information

• Brand: Crouse-Hinds
• Manufacturer: Eaton

Technical Specifications

• Catalog Number: CGBS3016
• Type: Explosionproof Portable Straight
• Material: Steel
• Finish: Zinc Electroplated
• Dimensions: 2.94 inches length
• Weight: 0.62 pounds
• Enclosure Rating: Class I Div 1 Group C D, Class II Div 1 2 Group E F G, Class III
• Connection Type: Male NPT
• Temperature Rating: -25 to 40 degrees C
