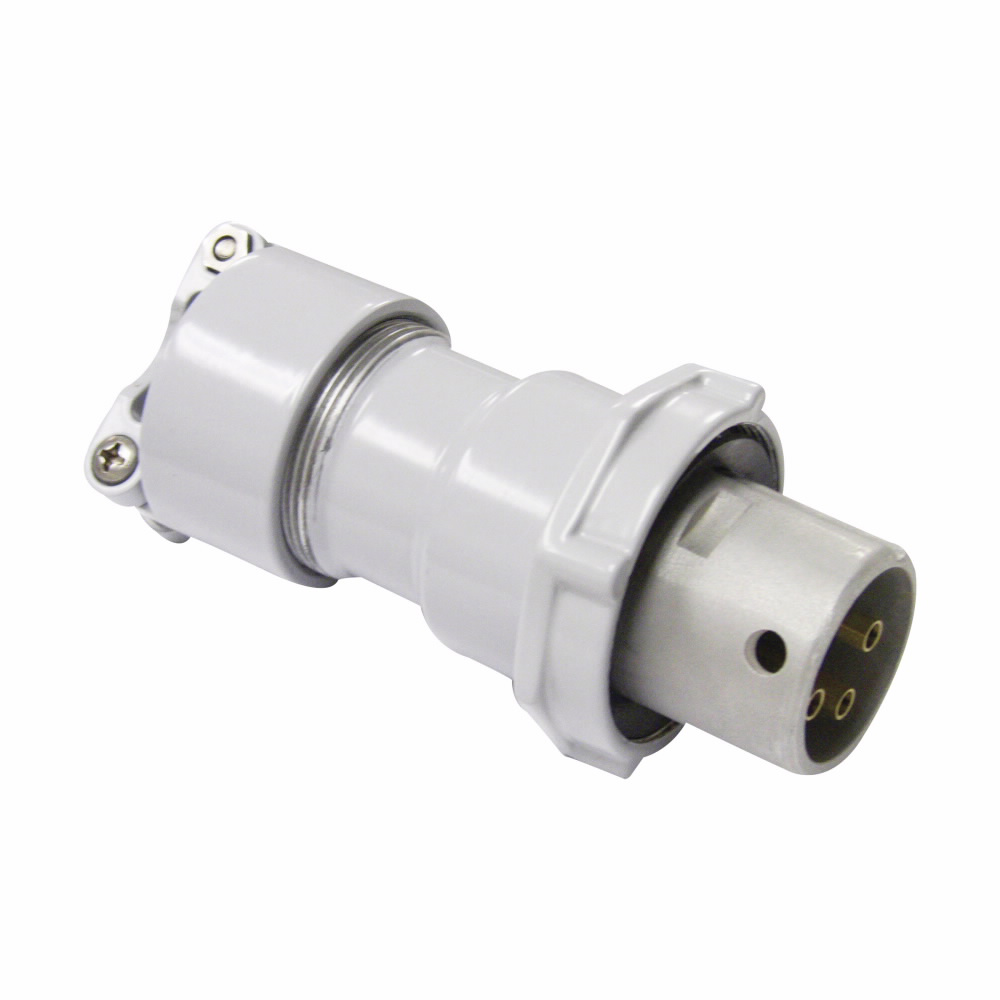

Crouse-Hinds CCP6034BC Plug 60 Amp 600 VAC/250 VDC 4-Pole 3-Wire NEMA 4X Pin and Sleeve Plug

Product Description

The CROUSE-HINDS CCP6034BC is a PowerMate CCP plug, 60A, three-wire, four-pole, Style 2, made from copper-free aluminum, and rated for 600 Vac/250 Vdc. Ideal for motor generator sets, compressors, heating/cooling, welders and lighting applications. It ensures safety and reliability in demanding environments.

• 60 Amp
• 600 VAC/250 VDC
• 4-Pole

Product Highlights

The Crouse-Hinds CCP6034BC plug is built with durability in mind, offering exceptional protection against environmental factors and easy integration into existing electrical systems.

Product Information

Standard Information

• Brand: CROUSE-HINDS
• Manufacturer Part Number: CCP6034BC
• Country of Origin: MX

Technical Specifications

• Type: Lockout, Pin and Sleeve
• Brand: Crouse-Hinds
• Width: 3.75 in
• Height: 3-3/4 Inch
• Length: 8.17 Inch
• Voltage: 250 Volt
• Amperage: 60 Amp
• Material: Aluminum
• Standard: UL,cUL Listed
• Sub Brand: PowerMate
• Wire Size: 8-4 AWG
• Applications: Motor Generator Sets, Compressors, Heating/Cooling, Welders, Lighting
• Conductor Size: 8-4 AWG
• Number of Poles: 4 Pole
• Product Type: Plug
• Area classification: Ordinary/Non-Hazardous Locations
• Standards type: NEC/CEC
• NEMA Rating: 4X
• Grounding type: Style 2
• Configuration: Three-wire, four-pole
• Cable diameter: 0.440-1.375"
• Voltage rating: 600 Vac/250 Vdc
