Crouse-Hinds C55MT CRSH C55 MT 1-1/2 EMT C COND BODY A

Product Description

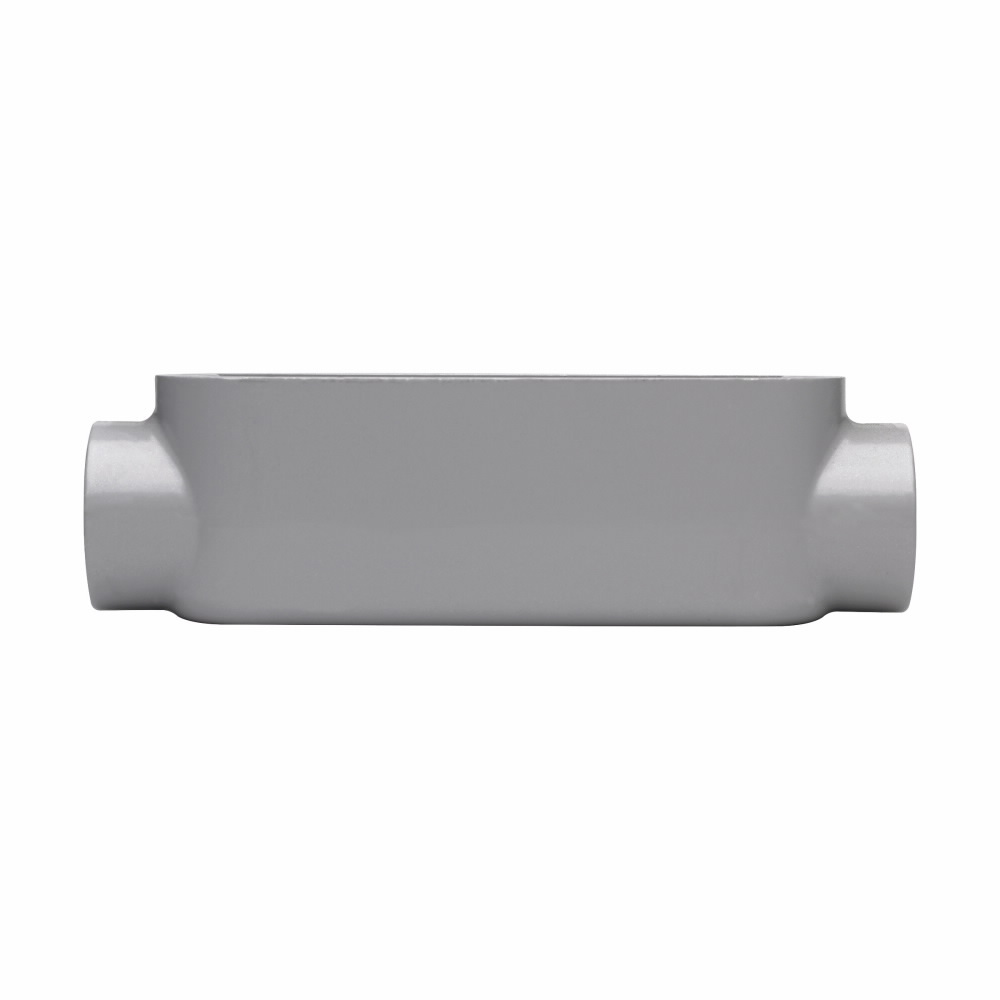

The Crouse-Hinds C55MT is a conduit outlet body designed for use with rigid or EMT conduits. Made from die-cast copper-free aluminum, it ensures durability in various applications. This product has a hub size of one and one-half inches and comes in a C shape.

• Made with copper-free aluminum.
• Compatible with EMT, rigid, and IMC conduits.
• Dimensions are eight point four five inches long, two point four nine inches wide, and two point seven three inches high.

Product Highlights

Designed for commercial and institutional applications, the C55MT provides reliable splicing and tapping points for electrical conductors.

Product Information

Standard Information

• Manufacturer: Eaton Crouse-Hinds
• Sub Brand: Crouse-Hinds series

Technical Specifications

• Catalog Number: C55 MT
• Color: Gray
• Material: Die Cast Copper Free Aluminum
• Finish: Epoxy Powder Coated
• Hub Size: 1-1/2 in
• Dimensions: 8.45 in L x 2.49 in W x 2.73 in H
• Weight: 1.5 lb
• Application: For rigid/IMC/EMT conduit, provide openings for splices and taps.
