Crouse Hinds C50M 1/2 MI C Cnd Bdy

Product Description

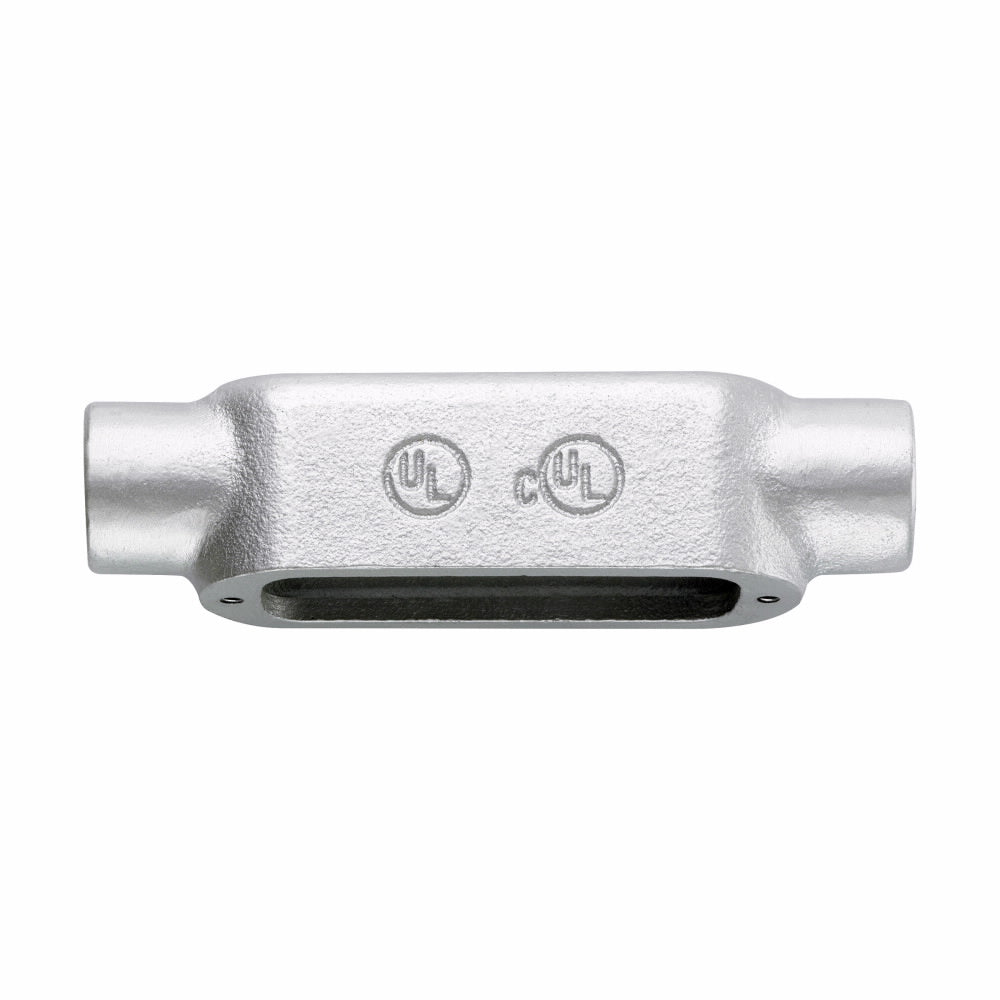

The Crouse Hinds C50M is a Condulet Form 5 conduit outlet body made of malleable iron with a C shape and a 1/2IN hub size. It acts as a pulling outlet for conductors being installed and offers openings for making splices and taps in conductors. It also offers taps for branch conduit runs and access to conductors.

• Interchangeable with Appleton Form 35 Conduit Bodies
• C and Lb Bodies to Facilitate Wire Pulling
• Smooth and Rounded Integral Bushings for Protection of Wire Insulation

Product Highlights

The Crouse-Hinds series Condulet Form 5 conduit outlet body is suitable for commercial and institutional buildings and structures.

Product Information

Standard Information

• Brand: Crouse Hinds
• Manufacturer Part Number: C50M
• Country of Origin: India

Technical Specifications

• Form: Form 5
• IGCC: 5563
• Type: Conduit outlet body
• Width: 1.34 in
• Finish: Aluminum
• Height: 1.37 in
• Length: 5.38 in
• Hub Size: 0.5 in
• Material: Malleable Iron
• Standard: UL 514B; CSA C22.2; CUL
• Sub Brand: Condulet
• Brand Name: Eaton
• Application: Commercial / Institutional Buildings / Structures - Commercial / Institutional B
• Family group: FITTINGS
• Manufacturer: CROUSE HINDS
• Shape: C
• Trade size: 1/2"
• Area classification: Ordinary/Non-Hazardous Locations
• Standards type: NEC/CEC
• Product Length/Depth: 5.38 in
• Product Height: 1.37 in
• Product Width: 1.34 in
• Product Weight: 0.98 lb
• Connection Type: Threaded
• No. of Hubs: 2 Hub
• Applications: Rigid/IMC Conduit
• Form Type: 5
• Brand: Crouse-Hinds
• Access Opening: Side
• Cover Type: Sheet Steel, Screw-On
• Installation: Threaded
• Hub Location: Straight
• Approval: UL 514B, CUL, CSA C22.2
• Configuration: C
• Used On: Rigid Conduit
• Additional Info: Applicable Standard Federal Specification WC-586D
