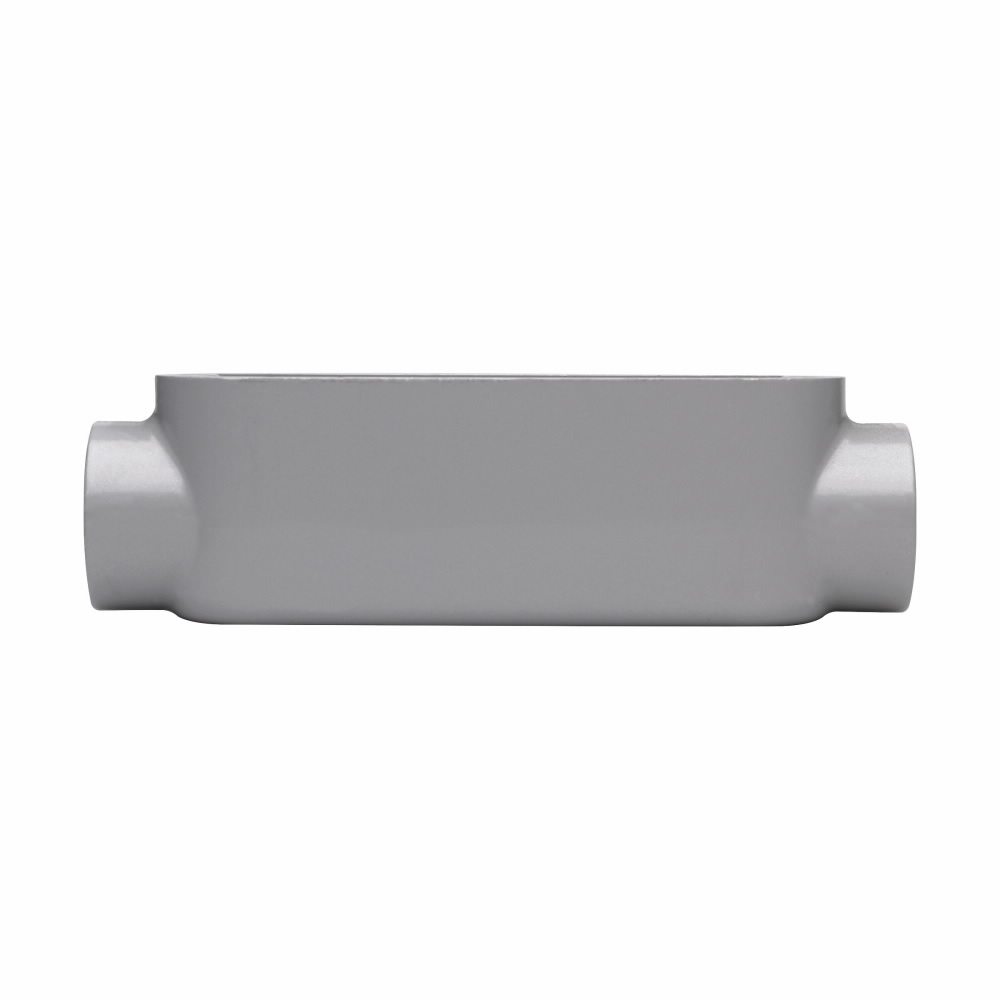

Crouse-Hinds C45MT CRSH C45 MT 1-1/4 EMT C COND BODY A

Product Description

Crouse-Hinds C45MT is a type-C conduit outlet body manufactured by Eaton. This product is made from die-cast copper-free aluminum, ensuring durability and resistance to corrosion. Designed for use with rigid, IMC, and EMT conduits, it facilitates electrical installations by providing pull outlets for conductors. With a hub size of one and one-quarter inches, it has a total capacity of thirty-two point three cubic inches.

• Die-cast aluminum construction provides strength and durability.
• Suitable for various conduit types: Rigid, IMC, and EMT.
• Surface mounted for easy installation in commercial and industrial settings.

Product Highlights

This model is designed for use in applications that require reliable connections for electrical conductors.

Product Information

Standard Information

• Brand: Crouse-Hinds
• Manufacturer: Eaton

Technical Specifications

• Type: Type-C
• Material: Die Cast Copper-Free Aluminum
• Finish: Epoxy Powder Coated
• Hub Size: 1-1/4 in
• Dimensions: 8.45 in L x 2.49 in W x 2.73 in H
• Weight: 1.65 lb
• Capacity: 32.3 cu-in
• Number of Hubs: 2
• Connection Type: Threaded/Set Screw
• Application: For use with rigid/IMC/EMT conduit
• Standards: UL Listed, NEC Compliant
