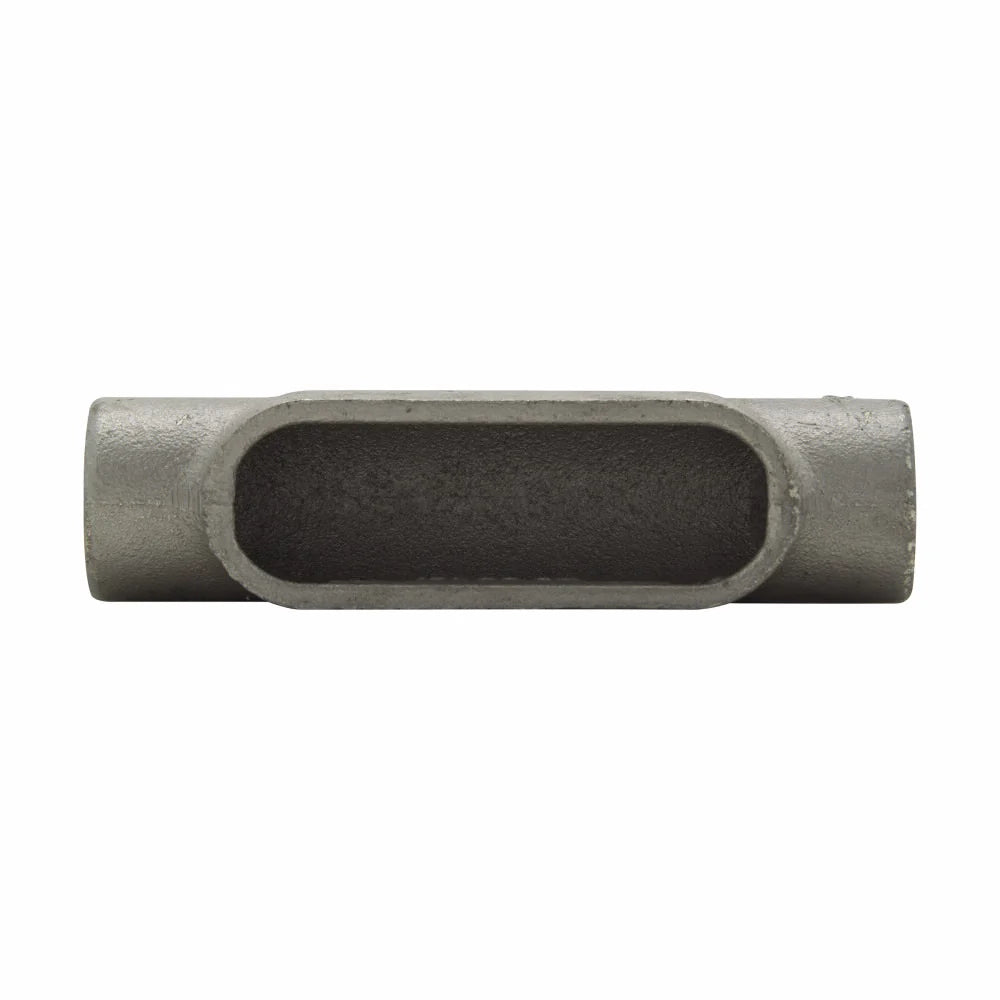

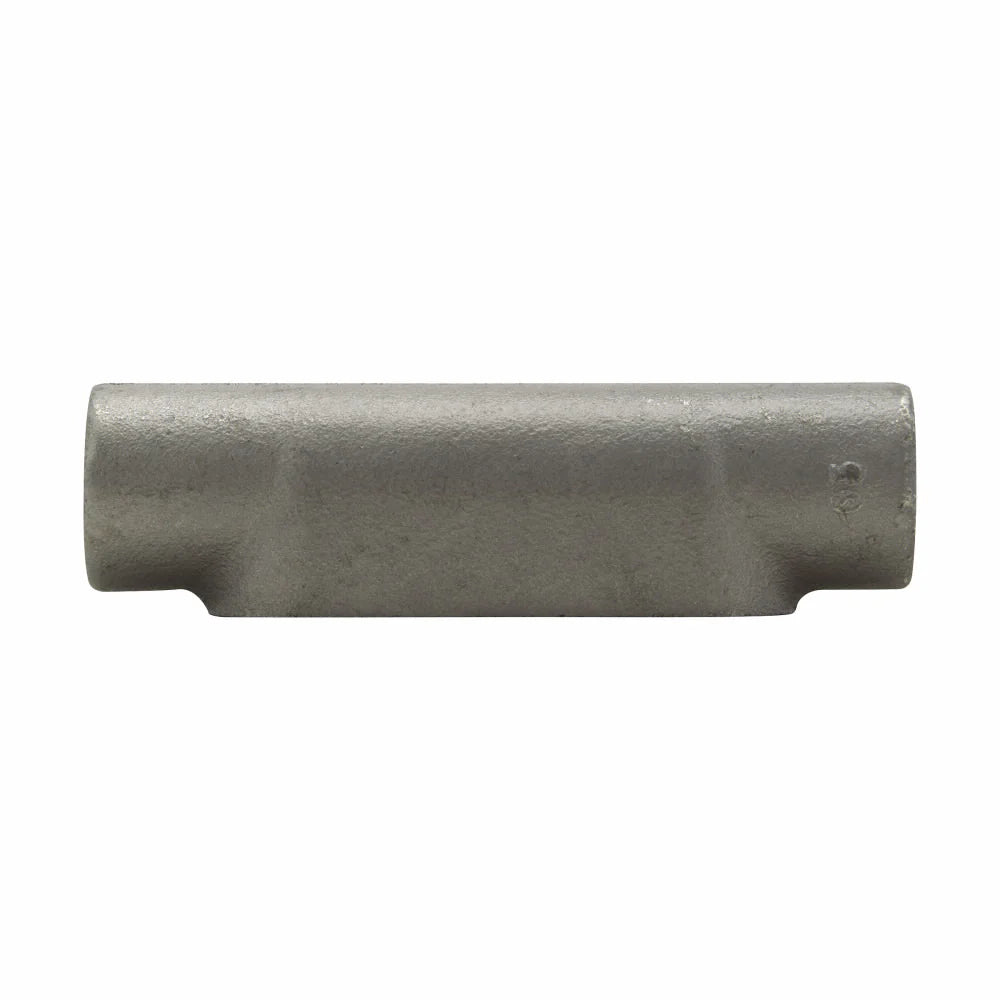

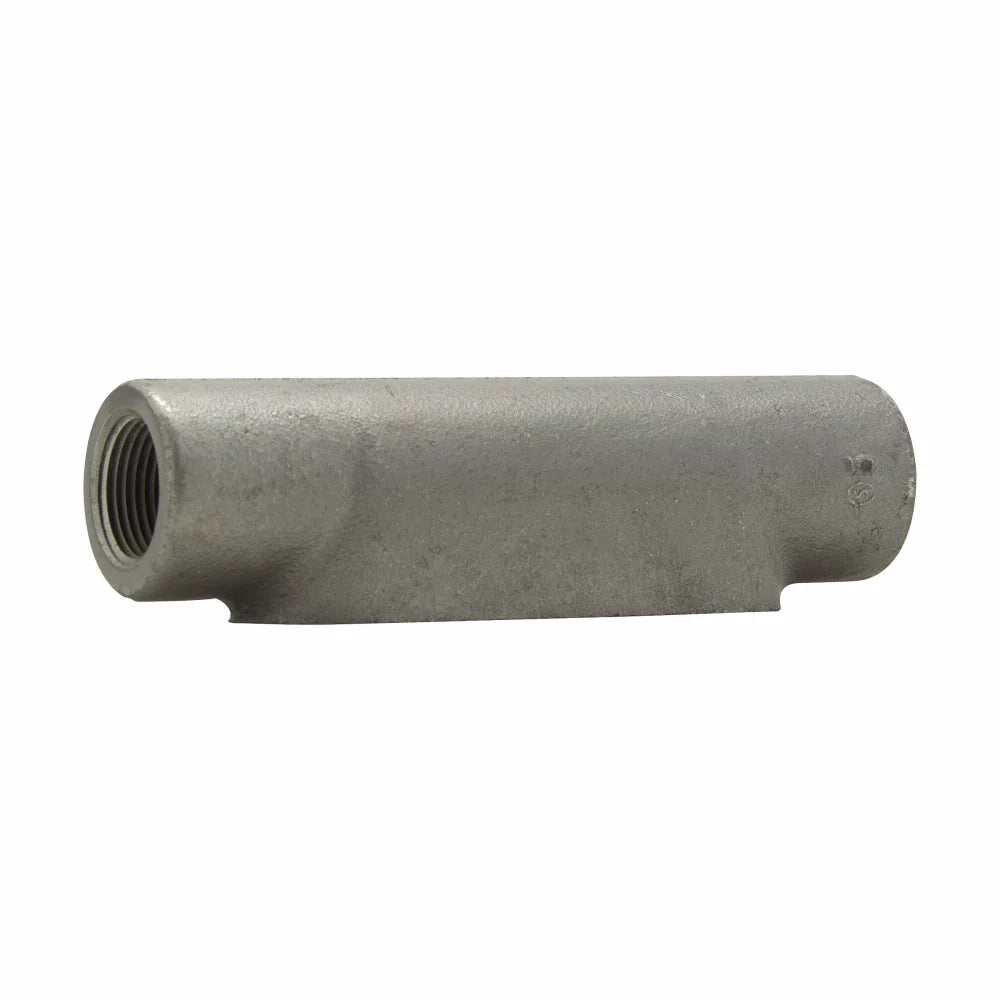

Crouse-Hinds C27 Conduit Outlet Body 3/4 in Hub Form 7

Product Description

The Crouse-Hinds C27 conduit outlet body, with MPN C27, is built for reliable usage in electrical installations. This type C Condulet is made from Feraloy iron alloy and is designed to connect with rigid conduits efficiently.

• Compact and neat installation with Form 7 design.
• Features threaded connections for secure attachment.
• Suitable for creating pull outlets and providing access for splices and taps.

Product Highlights

The C27 Condulet supports a variety of electrical applications by enabling ease of access to conductors.

Product Information

Standard Information

• Brand: Crouse-Hinds
• Manufacturer: Eaton

Technical Specifications

• MPN: C27
• Type: Type C
• Material: Feraloy iron alloy
• Finish: Electro-Galvanized/Aluminum Acrylic Painted
• Dimensions: 6 inches length x 1.5625 inches width x 1.63 inches height
• Hub Size: 0.75 inches
• Form Type: 7
• Number of Hubs: 2
• Standard & Approvals: ARRA, Buy American Act, RoHS Compliant, UL 514B, CSA C22.2 No. 18, Federal Spec W-C-586D, NEC/CEC Certified
