Product Description

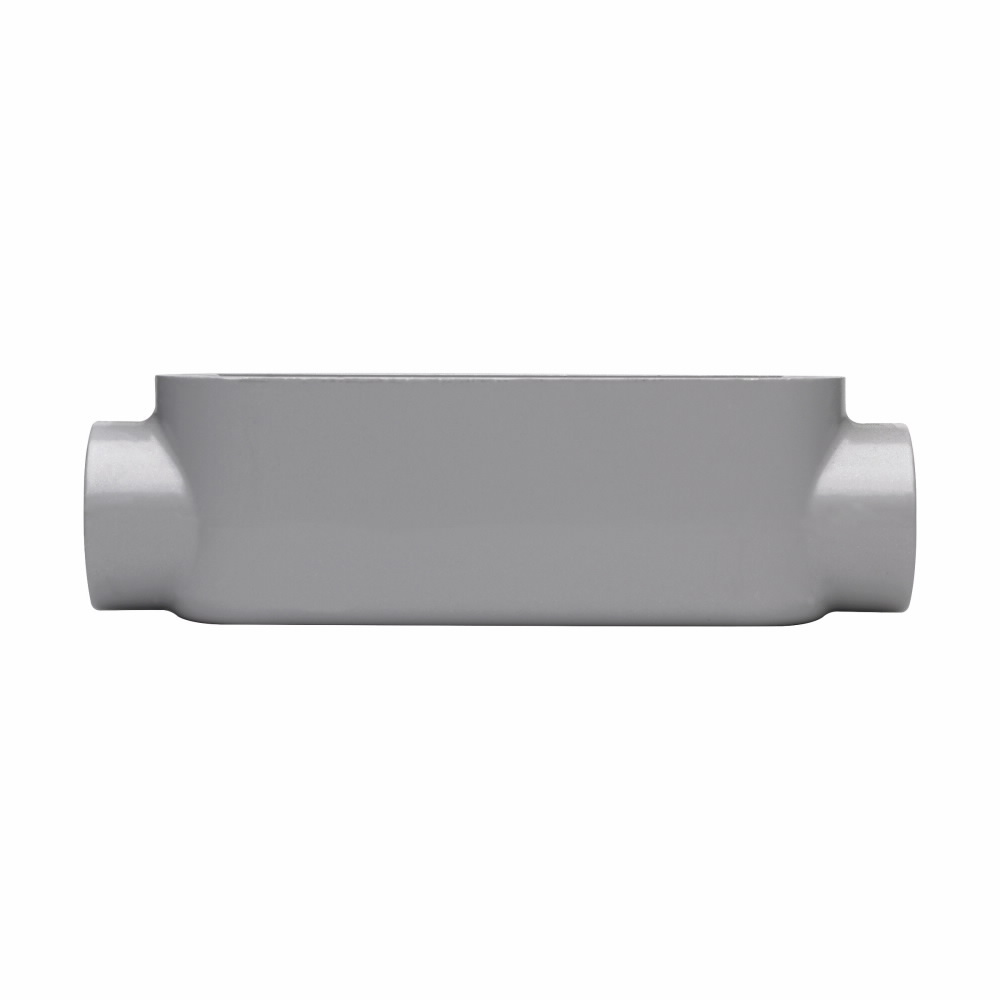

The Crouse-Hinds brand presents the C25MT conduit outlet body. This component features a combination of EMT-Rigid and IMC design for versatility in electrical installations. It is made with die cast copper-free aluminum and is suitable for various conduit applications, specifically designed for three-fourth inch hubs.
- Material: Die cast copper-free aluminum
- Color: Gray
- Finish: Epoxy powder coated for corrosion resistance
Product Highlights
This conduit body is essential for creating pull openings and connections between conduits. It supports various installation requirements.
Product Information
Standard Information
-
Manufactured By: Eaton / Crouse Hinds
-
Catalog Number: C25 MT
Technical Specifications
-
Material: Die Cast Copper-Free Aluminum
-
Color: Gray
-
Width: 1.53 inches
-
Height: 1.64 inches
-
Length: 5.5 inches
-
Weight: 0.4 pounds
-
Hub Size: 0.75 inches
-
Connection Type: Threaded / Set Screw
-
Enclosure Type: NEMA 4
-
Application: For rigid/IMC/EMT conduit
-
Standards: UL, cUL Listed
