Crouse Hinds C100M Condulet Type-C Conduit Body 1 in Form 5

Product Description

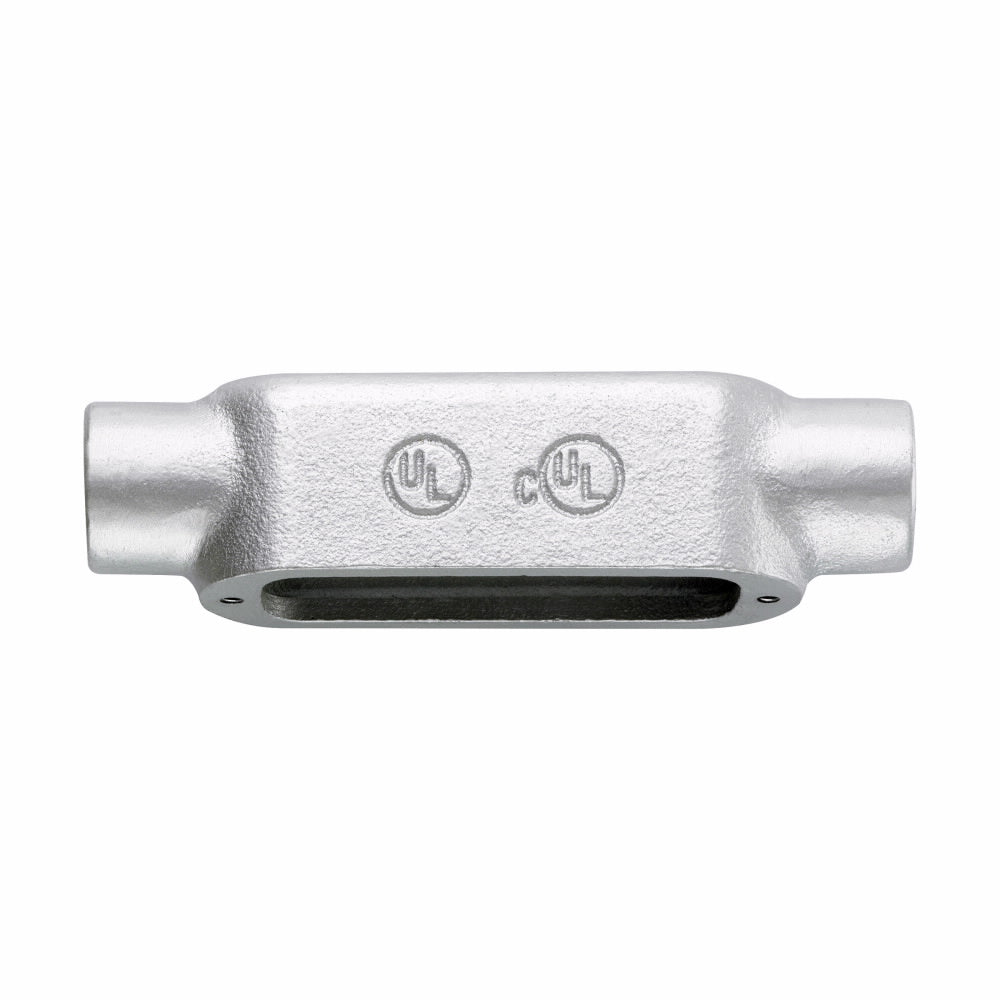

The Crouse-Hinds C100M is a Condulet Form 5 conduit outlet body constructed from malleable iron with a C shape and 1-inch hub size. It is designed for threaded rigid/IMC conduit systems in commercial and industrial applications.

• Smooth and rounded integral bushings for protection of wire insulation
• Malleable iron construction provides high impact resistance and durability
• Electro-galvanized and aluminum acrylic paint finish for corrosion resistance and durability

Product Highlights

This conduit outlet body acts as a pulling outlet, provides openings for making splices and taps, and offers taps for branch conduit runs.

Product Information

Standard Information

• Brand: Crouse Hinds
• Manufacturer Part Number: C100M
• Country of Origin: India

Technical Specifications

• Form: Form 5
• IGCC: 5563
• Type: Type C
• Width: 1.8 in
• Finish: Electro-Galvanized/Aluminum Acrylic Painted
• Height: 1.9 in
• Length: 7.05 In
• Hub Size: 1 in
• Material: Malleable Iron
• Standard: UL 514B; CSA C22.2; CUL
• Sub Brand: Condulet
• Application: For rigid/IMC conduit, act as pull outlets for conductors being installed, provide openings for making splices and taps in conductors
• Family group: FITTINGS
• Manufacturer: CROUSE HINDS
• Shape: C
• Trade size: 1 in
• Product Length/Depth: 7.05 in
• Product Height: 1.9 in
• Product Width: 1.8 in
• Product Type: Conduit outlet body
• Area classification: Ordinary/Non-Hazardous Locations
• Standards type: NEC/CEC
• Number of Hubs: 2
• Capacity: 12.5
• Catalog ID: CHNC100M
• Connection Type: Threaded
• Enclosure: NEMA 4
• Applications: Rigid/IMC Conduit
• Form Type: 5
• Brand: Crouse-Hinds
• ECCN: EAR99
• Country of Origin: IN - India
• UNSPSC: 39131708
• Cover and Gasket: No
• No. of Hubs: 2 Hub
