Product Description

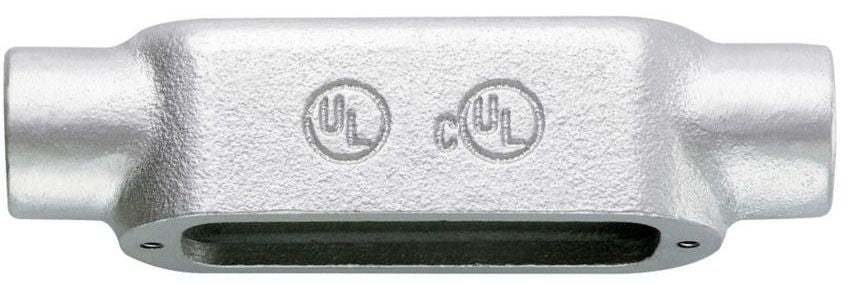

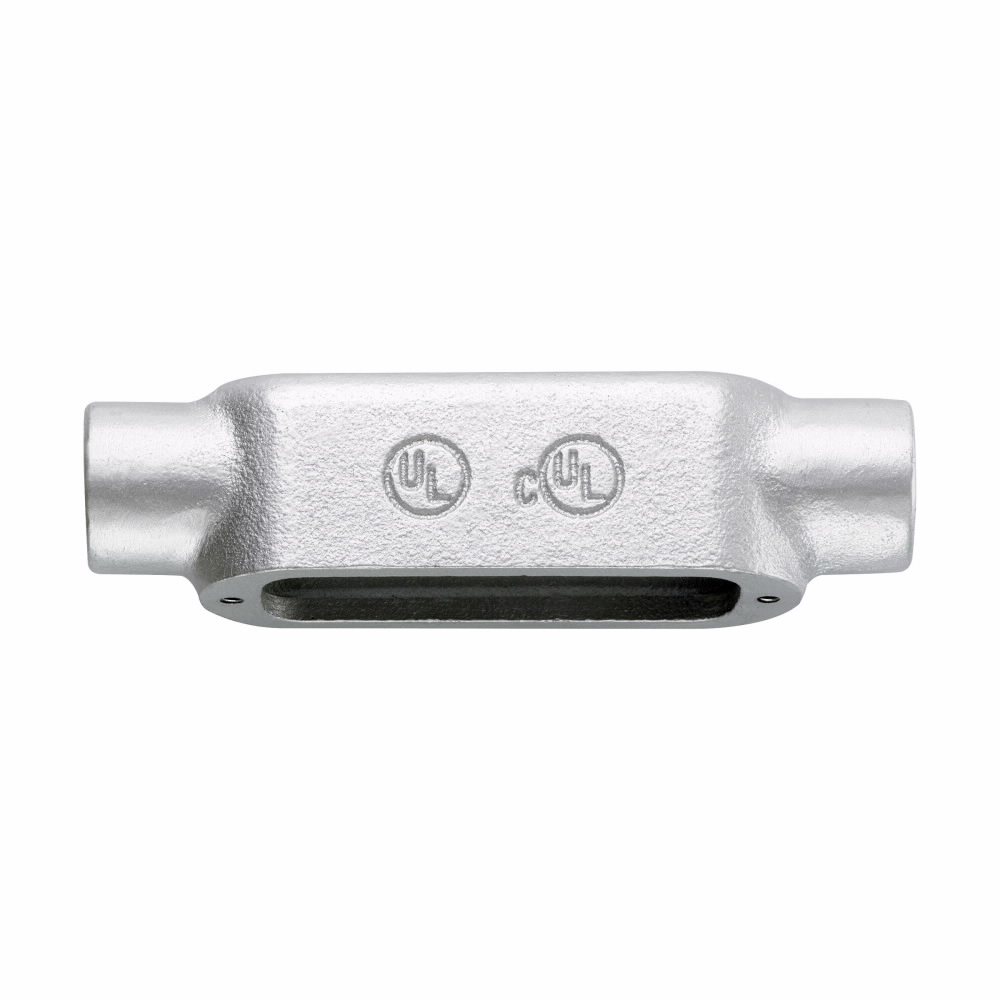

The Crouse-Hinds C100M is a conduit outlet body designed for threaded rigid and intermediate metal conduit systems. It is made of durable malleable iron and comes in a C shape with a hub size of one inch. This product features a NEMA 4 enclosure ideal for various applications in commercial and institutional buildings.
- Specifications conform to CSA C22.2, CUL, UL 514B standards.
- Constructed for pull outlets, splices, and taps in electrical conduit systems.
- Electro-galvanized finish provides protection against corrosion.
Product Highlights
The C100M conduit body is suitable for heavy-duty applications and is designed to facilitate the easy pulling of conductors, ensuring longevity in service.
Product Information
Standard Information
-
Manufacturer: Eaton Crouse-Hinds
-
Brand: Crouse-Hinds
Technical Specifications
-
Catalog Number: C100M
-
Hub Size: 1 inch
-
Material: Malleable Iron
-
Finish: Electro Galvanized
-
Form Type: Form 5
-
Width: 1.80 inches
-
Height: 1.90 inches
-
Length: 7.05 inches
-
Weight: 1.7 lbs
-
GTIN: 00782274756356
