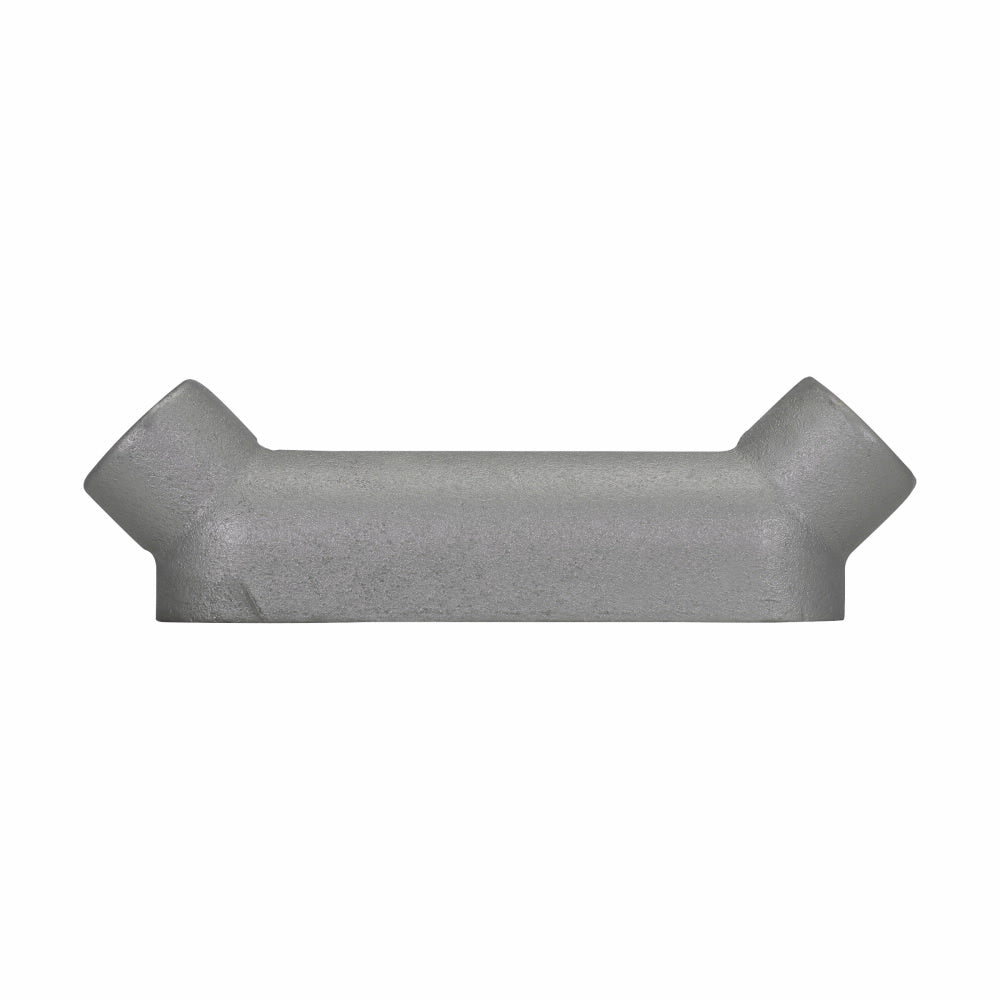

Crouse Hinds BUB6 Feraloy Iron Alloy Type UB Mogul Conduit Body With Cover And Gasket 2-Inch Condulet

Product Description

The Crouse Hinds BUB6 is a two-inch mogul conduit body designed for effective protection and routing of rigid and IMC conduits. Constructed from a Feraloy iron alloy, this outlet body maintains durability and resistance to physical damage. Its design includes two threaded taper tapped hubs oriented at a 45-degree angle, maximizing accessibility and convenience for installation.

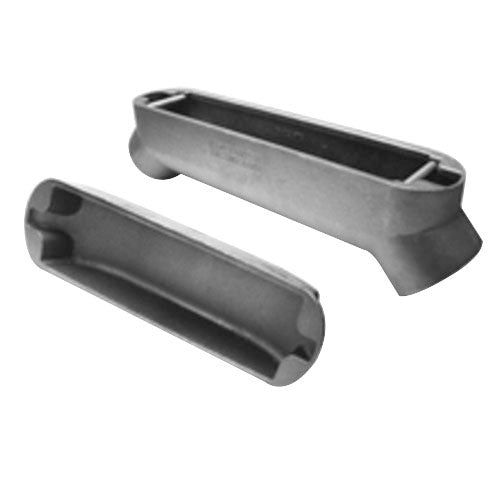

• Includes a gasket and screw-on cover for enhanced protection
• Holds a capacity of seventy-five cubic inches, ideal for stiff conductors
• UL 514B listed and CSA Certified for operational safety

Product Highlights

This mogul conduit body provides easy access for splicing and maintenance due to its backside access feature. With a bend radius of nine point thirty-five inches, it allows for flexibility in conduit routing. The durable finish assures longevity in various applications.

Product Information

Standard Information

• Trade Size: 2 Inch
• Type: Mogul

Technical Specifications

• Standards: UL 514B Listed, CSA C22.2 No.18 Certified, Federal Specification W-C-586D
• Hub Size: 2 Inch
• Bend Radius: 9.35 Inch
• Dimensions: 13.5 Inch Length x 3 Inch Width x 4.13 Inch Height
• Material: Feraloy Iron Alloy
• Finish: Electrogalvanized with Aluminum Acrylic Paint
• Cubic Capacity: 75
