Crouse-Hinds AREA204226 CRSH AREA204226 200A 3W4P RCP ASSY

Product Description

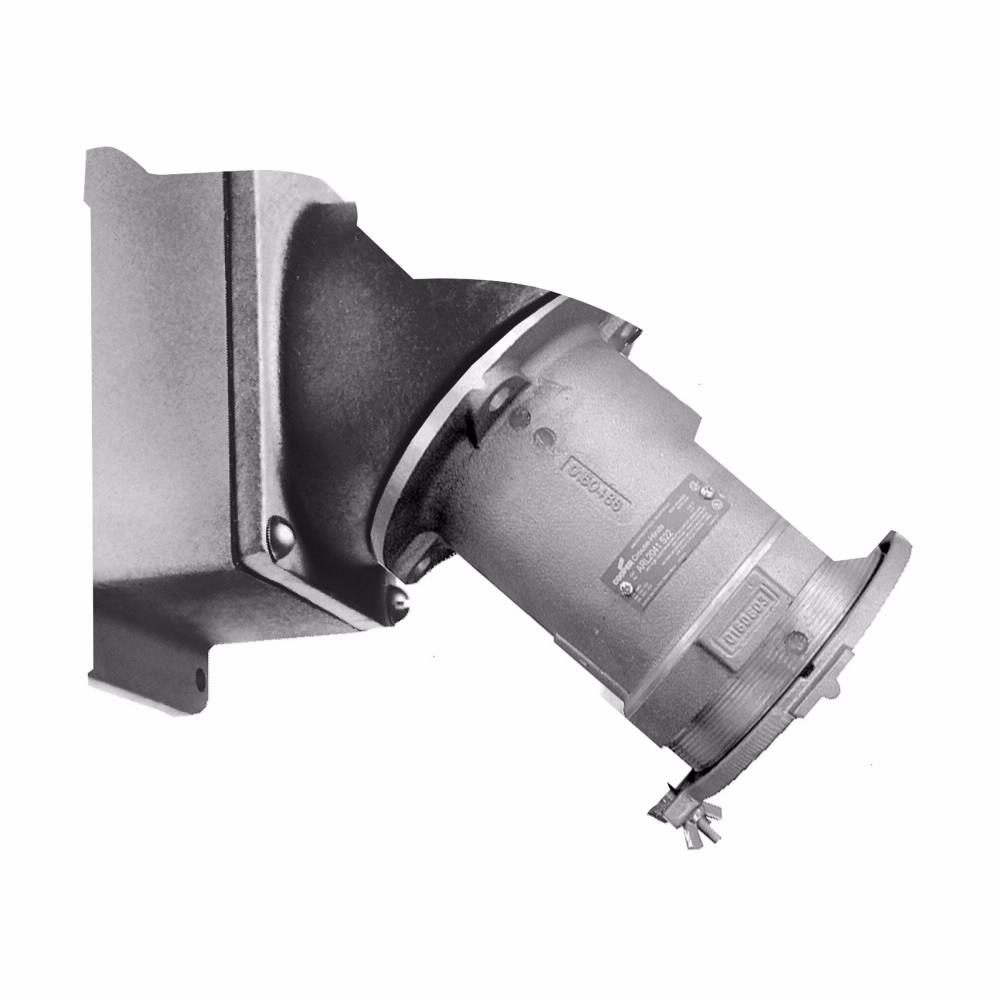

The Crouse-Hinds AREA204226 is a reliable receptacle assembly designed for heavy-duty electrical applications. This unit supports up to 200 amps with a three-wire, four-pole configuration. It is constructed from copper-free aluminum and designed for voltage ratings of 600 Vac and 250 Vdc. Ideal for use with various equipment, its spring door design offers protection and easy access for connections.

• 200A capacity with a pin and sleeve system
• Applications include motor-generator sets, compressors, and welders
• Meets several safety standards for reliable operation

Product Highlights

The Crouse-Hinds area receptacle is suitable for indoor and outdoor use, providing electrical connections across various devices. This product is designed for quick connect and disconnect of electrical loads, making it versatile for numerous applications.

Product Information

Standard Information

• Catalog Number: AREA204226
• Brand: Crouse-Hinds

Technical Specifications

• Voltage: 250 Volt
• Amperage: 200 Amp
• Number of Poles: 4 Pole
• Material: Aluminum
• Size: 8-3/8 inches Width x 15-5/8 inches Depth x 14-7/16 inches Height
• Application: Works with compressors and lighting systems
• Wire Size: 1 to 4/0 AWG (Building), 1 to 3/0 AWG (Extra Flex)
