Crouse-Hinds AR647 CRSH 60A Receptacle (4-1/4 In Width X 4-1/2 In Depth X 4-1/4 In Height)

Product Description

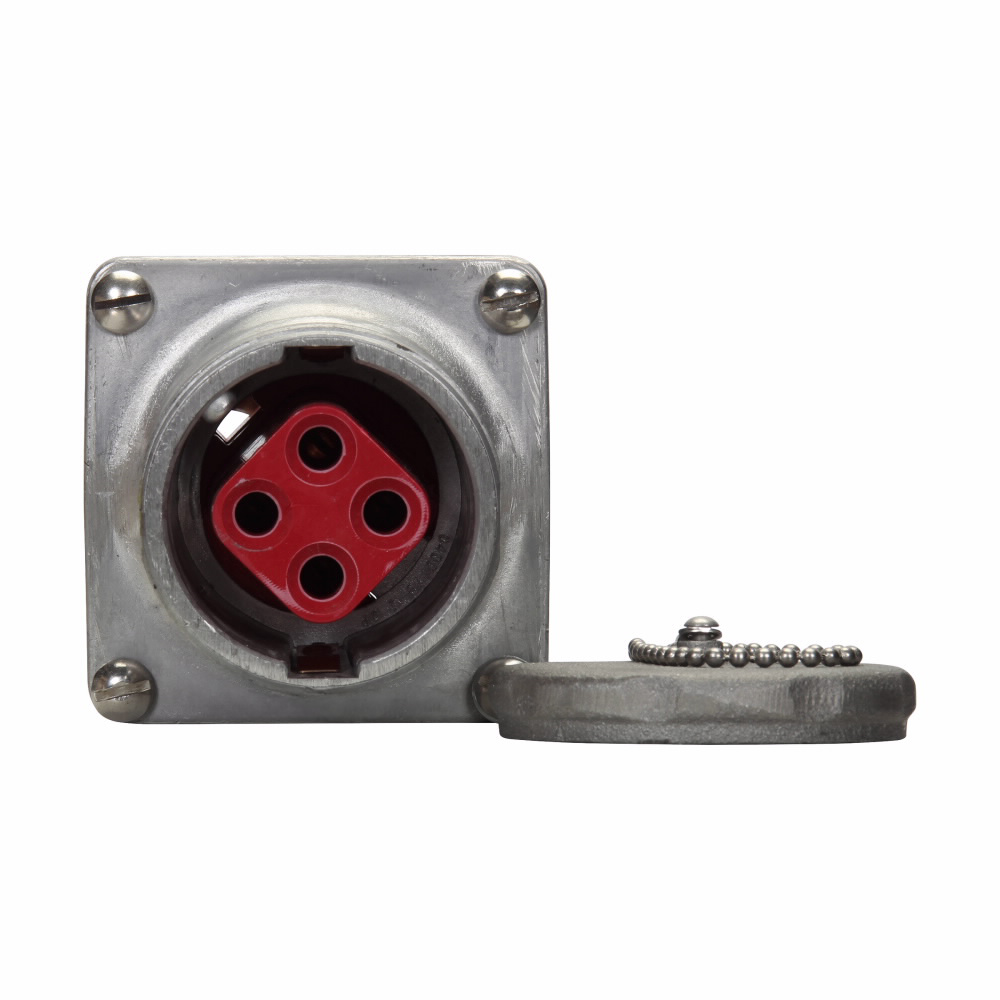

The Crouse-Hinds AR647 is a 60 amp receptacle designed for demanding electrical applications. It features a four-wire, four-pole configuration suitable for use in various electrical devices. This receptacle operates effectively in the voltage range of 600 Vac and 250 Vdc. It is made from copper-free aluminum with a watertight design to ensure durability and reliability.

• Sub Brand: Arktite
• Application: Ideal for motor-generator sets, compressors, and heating and cooling units
• NEMA 4 enclosure for protection against dust and water

Product Highlights

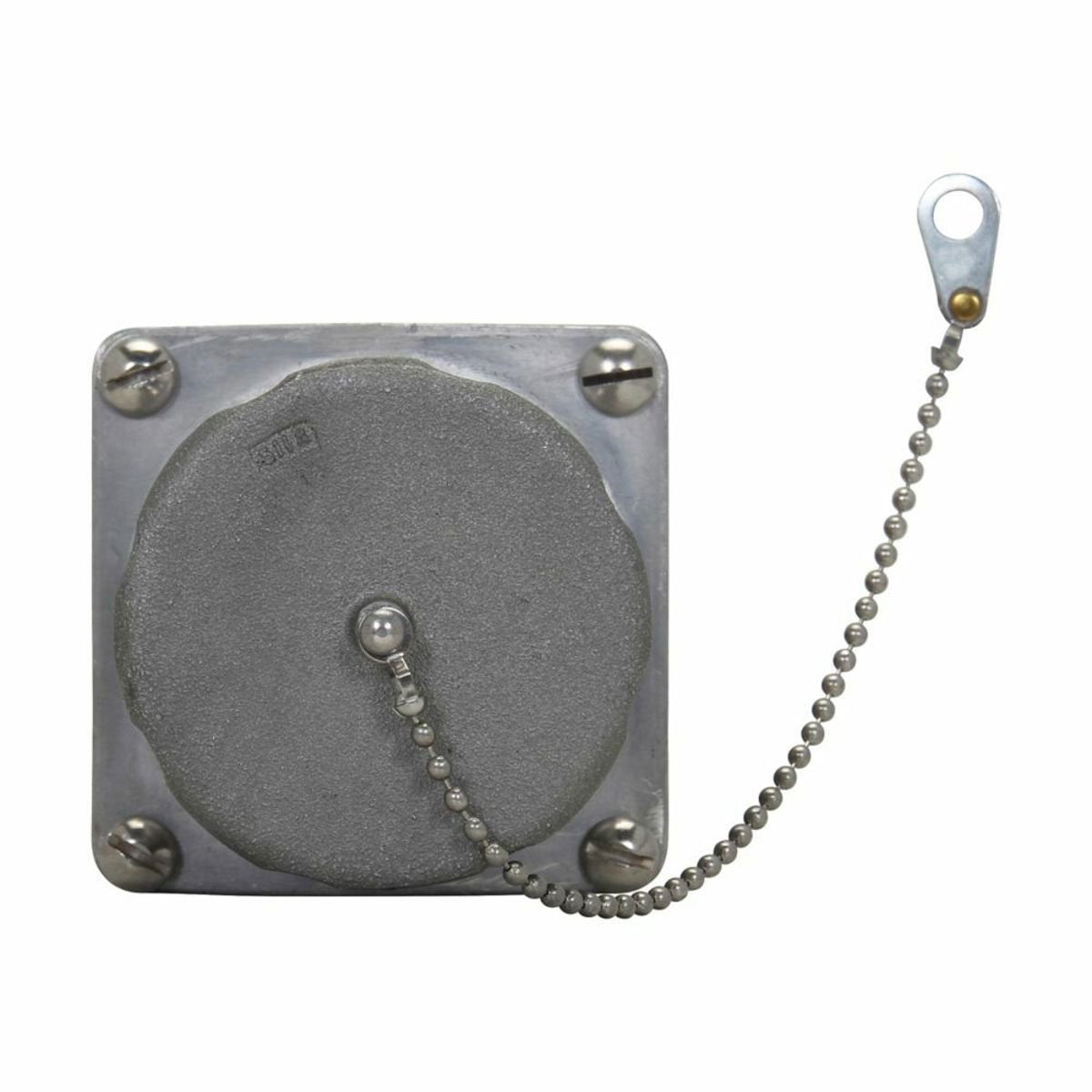

The Crouse-Hinds AR647 receptacle is engineered for robust performance in industrial settings. Its threaded cap design enhances security and stability. This receptacle is particularly useful where temporary power connections are needed, such as in trailers and industrial equipment. The unit is expertly crafted to support various applications including lighting systems and welders.

Product Information

Standard Information

• Brand: Crouse-Hinds
• Manufacturer: Eaton Crouse-Hinds

Technical Specifications

• Catalog Number: AR647
• Voltage Rating: 600 Vac at 50-400 Hz, 250 Vdc
• Amperage Rating: 60 A
• Material: Copper-Free Aluminum
• Dimensions: 4-1/4 inches Width X 4-1/2 inches Depth X 4-1/4 inches Height
• Weight: 2.57 lb
• Number of Poles: 4
• Connection Type: Pressure, Crimp/Solder
• Wire Size: 6-4 AWG (Building), 8-4 AWG (Extra Flex)
• Standards: UL 1682, UL 1686, CSA C22.2, CE
