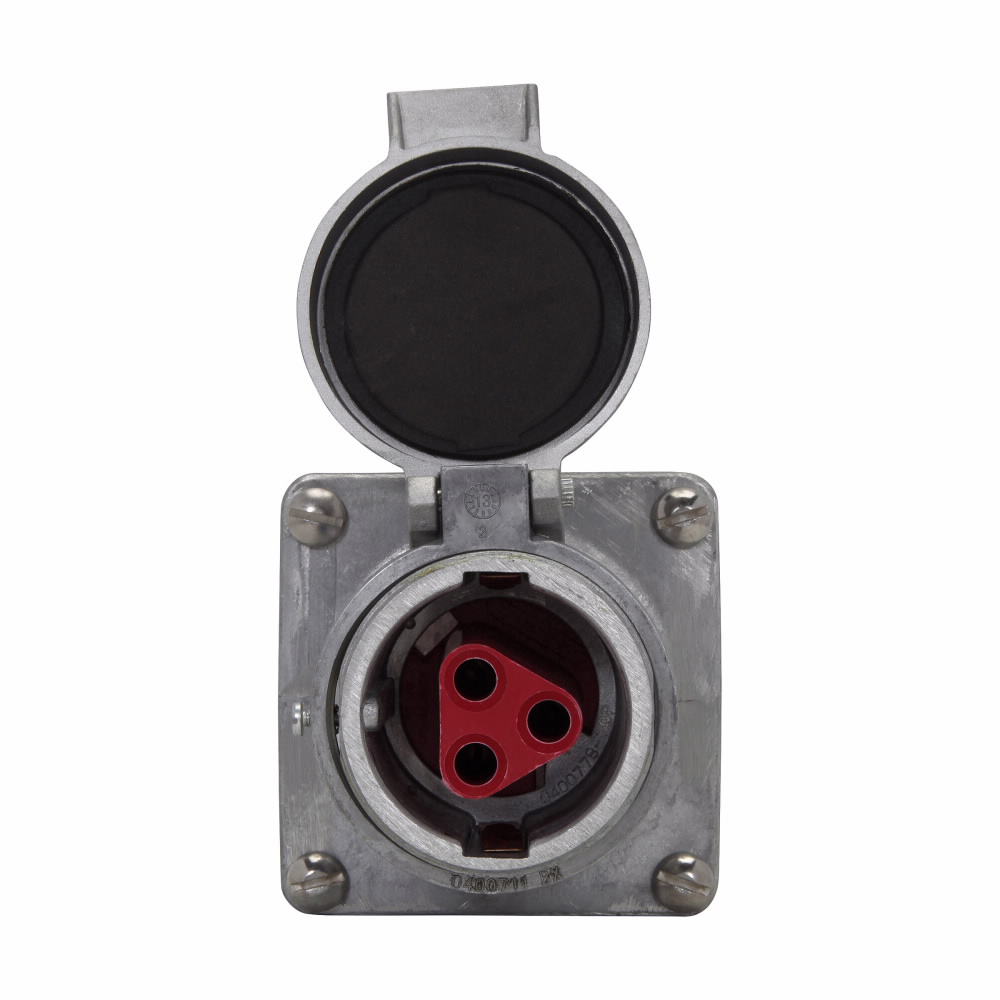

Crouse-Hinds AR642 Grounding Style 2 Heavy Duty Spring Door Receptacle Housing 600 VAC/250 VDC 60 A 4 Poles 3 Wires

Product Description

The Crouse-Hinds AR642 is a 60 Amp, four-pole receptacle housing designed for demanding industrial applications. This receptacle provides safe and efficient power distribution for various portable electrically operated devices. It supports voltages up to 600 VAC/250 VDC and operates within a frequency range of 50 to 400 Hertz.

• Watertight design ensures durability in harsh environments.
• Made from copper-free aluminum for better corrosion resistance.
• Compatible with 6 to 4 AWG (building) and 8 to 4 AWG (extra flex) wire sizes.

Product Highlights

The AR642 receptacle is ideal for connecting power to generators, compressors, and heavy machinery. Its robust construction and NEMA 4 enclosure make it suitable for challenging conditions.

Product Information

Standard Information

• Catalog Number: AR642
• Brand: Crouse-Hinds

Technical Specifications

• Amperage: 60 Amp
• Voltage Rating: 600 VAC/250 VDC
• Number of Poles: 4
• Number of Wires: 3
• Material: Copper-free aluminum
• Weight: 2.7 lb
• Dimensions: 4-1/4 in Length x 4-1/4 in Width x 5-1/4 in Height
• Frequency: 50 to 400 Hz
• Application: Industrial use
• Grounding Style: 2
