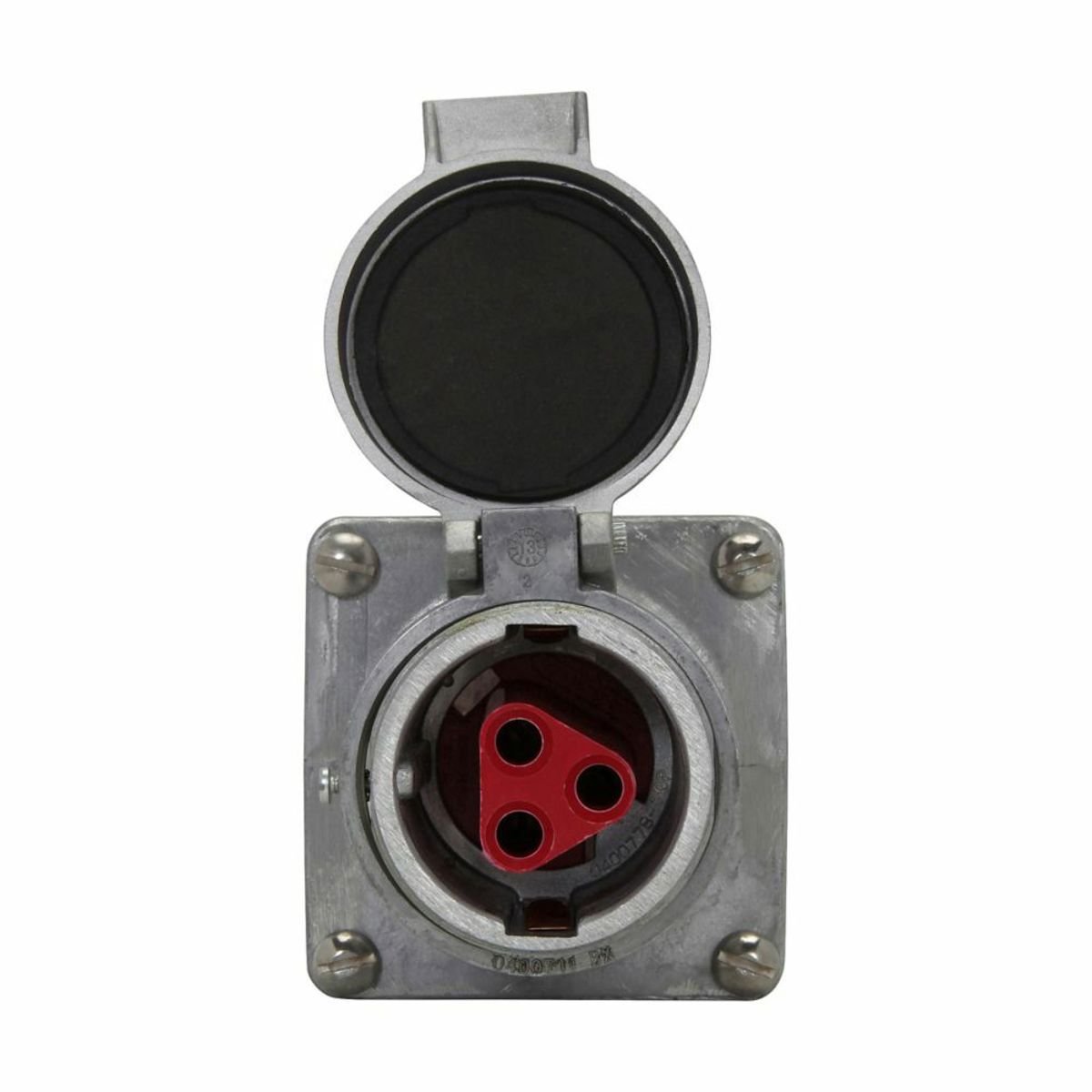

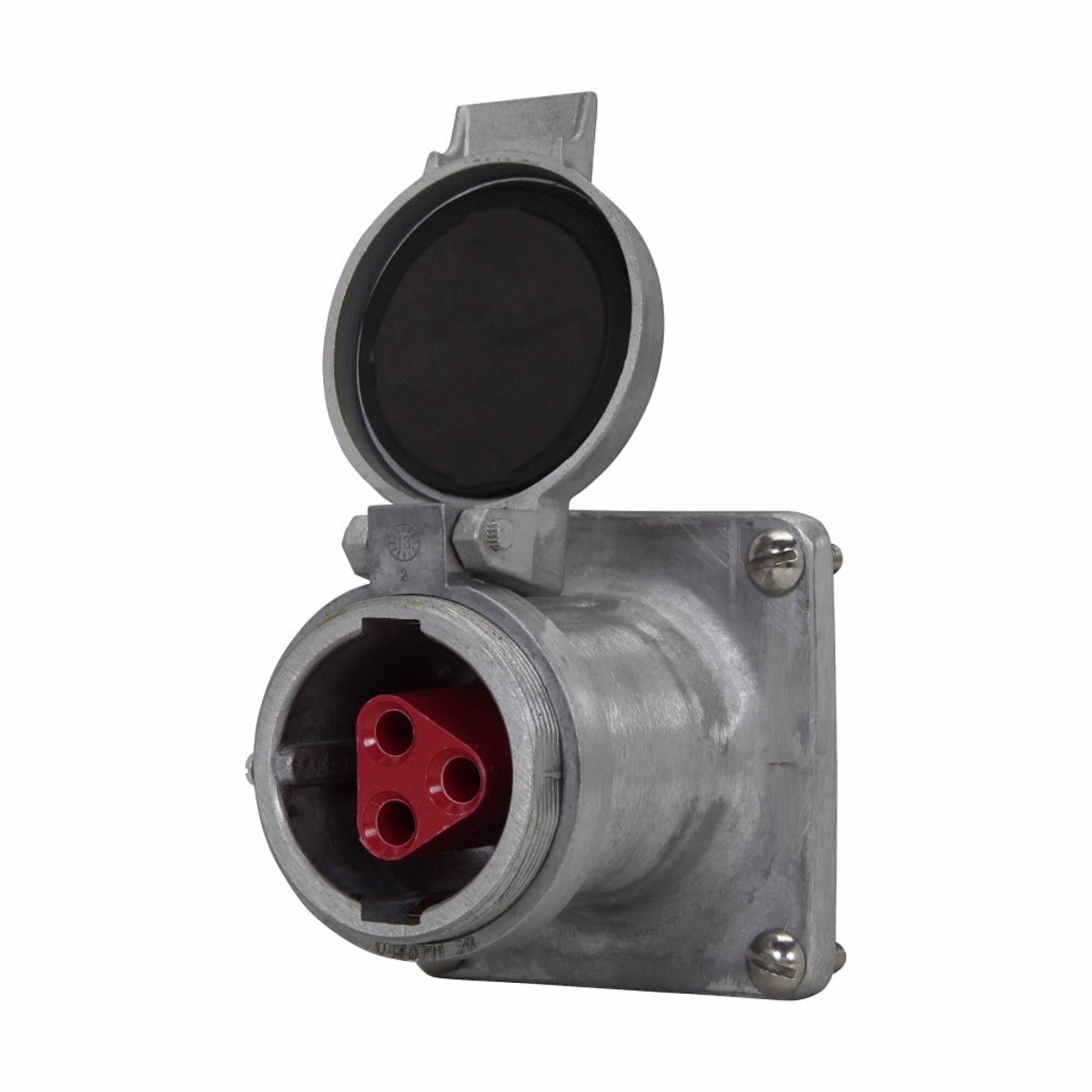

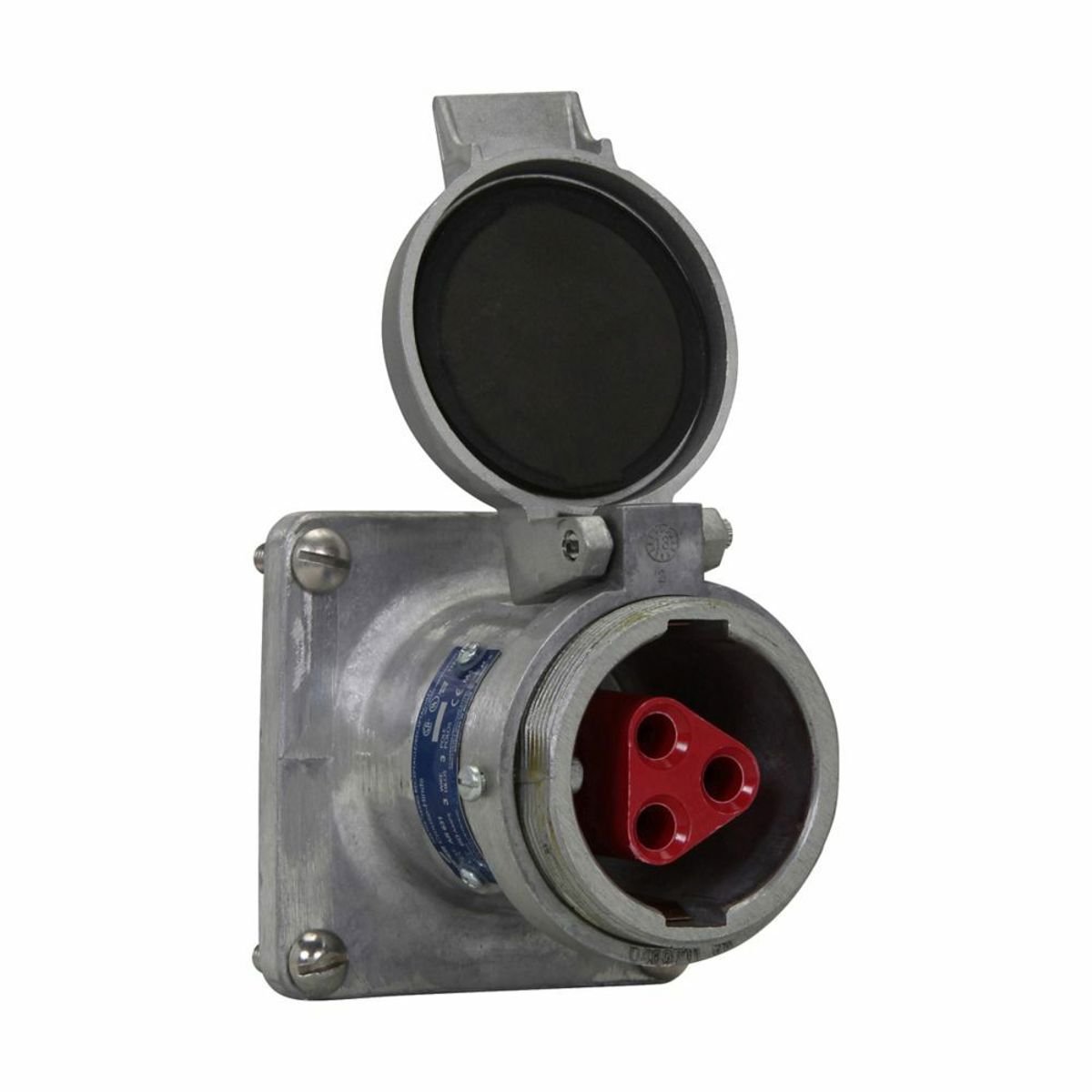

Crouse-Hinds AR342 30 Amp 4-Pole 3-Wire Spring Door Receptacle Housing

Product Description

The Crouse-Hinds AR342 is a 30 Amp, 4-Pole, 3-Wire spring door receptacle housing designed for several applications. This device is made from copper-free aluminum and is meant for industrial use, including power distribution and control. It operates at 600 Volts AC and 250 VDC and functions effectively within a frequency range of 50-400 Hertz.

• Heavy duty watertight design
• Spring door mechanism for easy access
• Compatible with CEE 32 A connectors

Product Highlights

This receptacle housing is suitable for environments where electrical loads need to be frequently disconnected and reconnected. Typical applications include use with motor generator sets, compressors, welders, and lighting systems.

Product Information

Standard Information

• Brand: Crouse-Hinds
• Manufacturer: Eaton

Technical Specifications

• Catalog Number: AR342
• Voltage Rating: 600 VAC/250 VDC
• Amperage Rating: 30 A
• Number of Poles: 4
• Number of Wires: 3
• Size: 3-3/8 inches Length x 3-3/8 inches Width x 2-7/8 inches Height
• Material: Copper-free aluminum
• Insulation Type: Fiberglass-Reinforced Polyester
• Grounding Style: Style 2
• Resistance: NEMA 4 enclosure
