Crouse Hinds ADE1CN0752NPSCN BARRIER NON A POWER NPT 3/4 IN - REPLACEMENT MPN

Product Description

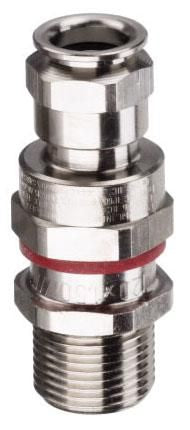

The Crouse Hinds ADE1CN0752NPSCN is a barrier non-armoured cable gland designed for hazardous areas. This product is constructed from nickel-plated brass, which provides high resistance to corrosion. It is suitable for use in various industrial facilities. This cable gland is compatible with solid compound and neoprene conductors. Its design allows for secure and efficient installation in environments with specific safety requirements.

• Nickel-plated brass construction for durability
• Compatible with cable outer diameters ranging from 8.5 to sixteen millimeters
• Temperature rating from negative sixty to eighty degrees Celsius

Product Highlights

Product Information

Standard Information

• Manufacturer: Crouse Hinds
• Family Group: Fittings

Technical Specifications

• Weight: 7.06
• Material: Nickel plated brass with compound
• Mounting: NPT 3/4
• Conductor Range: Solid compound / neoprene
• Environmental Conditions: Cable OD 8.5 - 16 mm
• Temperature Rating: -60 to +80 Degrees C (ATEX / IECEx), -20 to +40 Degrees C (UL)
• Dimensions: 2.7756 inches x 1.1811 inches x 1.2992 inches
• Application: Industrial facilities and factories
