Crouse Hinds 452 EMT Set Screw Straight Connector 1-Inch

Product Description

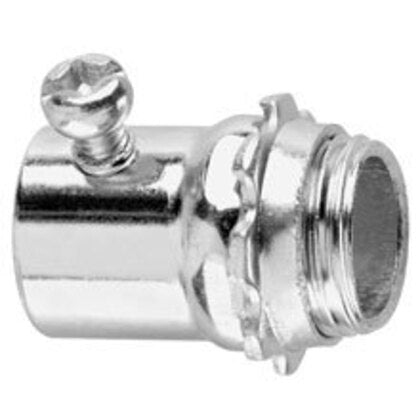

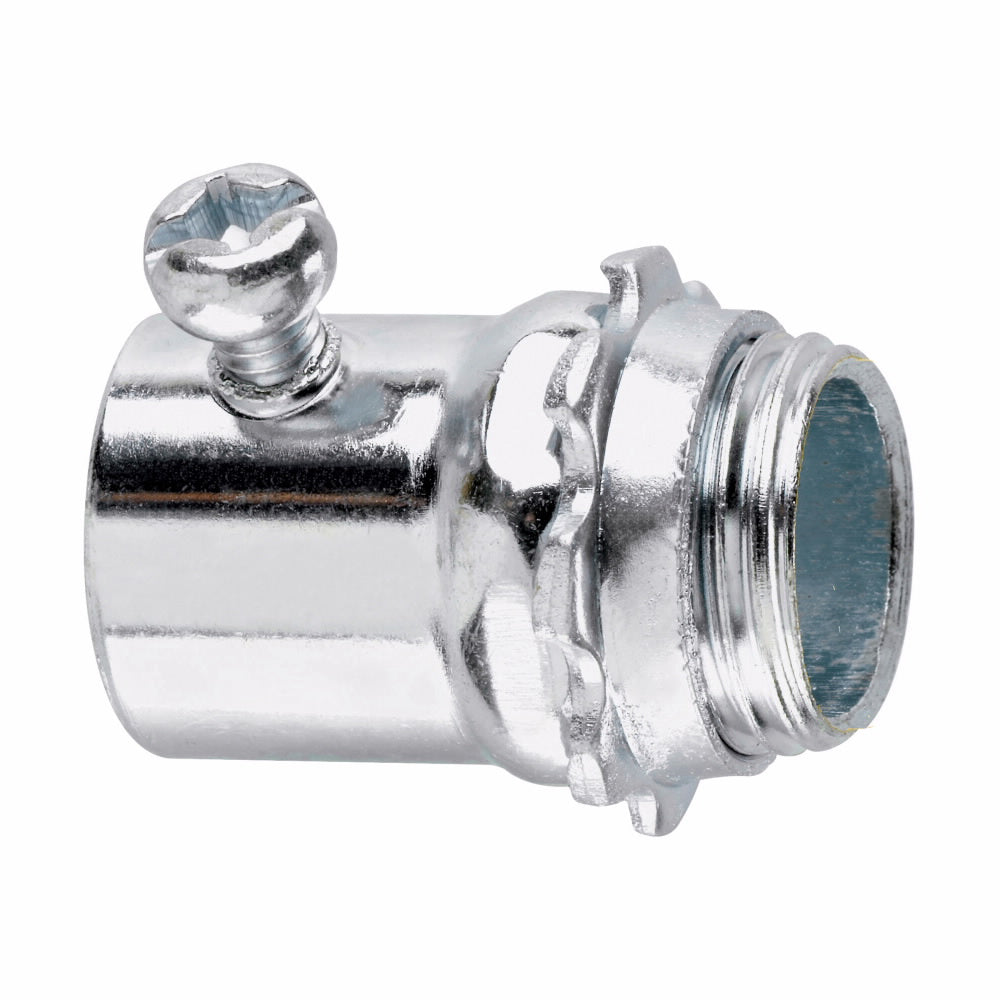

The CROUSE HINDS 452 is an EMT set screw type connector designed to join 1-inch EMT conduit to a box or enclosure. This straight, non-insulated connector is constructed from steel with a zinc-plated finish and is concrete-tight when taped. It is UL listed and features tri-head screws for versatile installation.

• Tri-head screws allow for installation using a slotted, Phillips, or Robertson-head screwdriver
• Constructed with heavy steel walls
• Zinc-plated finish for corrosion resistance

Product Highlights

Joins 1-inch EMT conduit to boxes or enclosures. Steel construction with zinc-plated finish. UL listed.

Product Information

Standard Information

• Brand: CROUSE HINDS
• Manufacturer Part Number: 452
• Country of Origin: Multiple Countries

Technical Specifications

• Type: Set screw type connector
• Brand Name: Eaton
• Manufacturer: CROUSE HINDS
• Fitting Type: Connector
• Standards: UL E22132 Listed, cUL Certified
• Trade Size: 1 Inch
• Connection Type: Set Screw x Male NPSM
• Finish: Zinc Plated
• Material: Steel
• For Use With: EMT Conduit
• Item Name: EMT Set Screw Straight Connector
• UPC: 78456410452
• Manufacturer Name: Cooper Crouse-Hinds
• Manufacturer Part Number: 452
• GTIN: 00784564104526
• UNSPSC: 39131700
• Country Of Origin: Multiple Countries
• Product Length/Depth: 1.81 in
• Product Height: 1.38 in
• Product Width: 1.38 in
• Product Weight: 0.23 lb
• Product Type: Set screw type connector
• Area classification: Ordinary/Non-Hazardous Locations
• Standards type: NEC/CEC
• Conduit type: EMT
• Connector type: Straight
• Style: Set screw
• Insulator: Non-insulated
• Throat Type: Non-Insulated
• Diameter: 1 in
• Sub Brand: Crouse-Hinds series
• Application: Commercial / Institutional Buildings / Structures - Commercial / Institutional B
• Family group: FITTINGS
