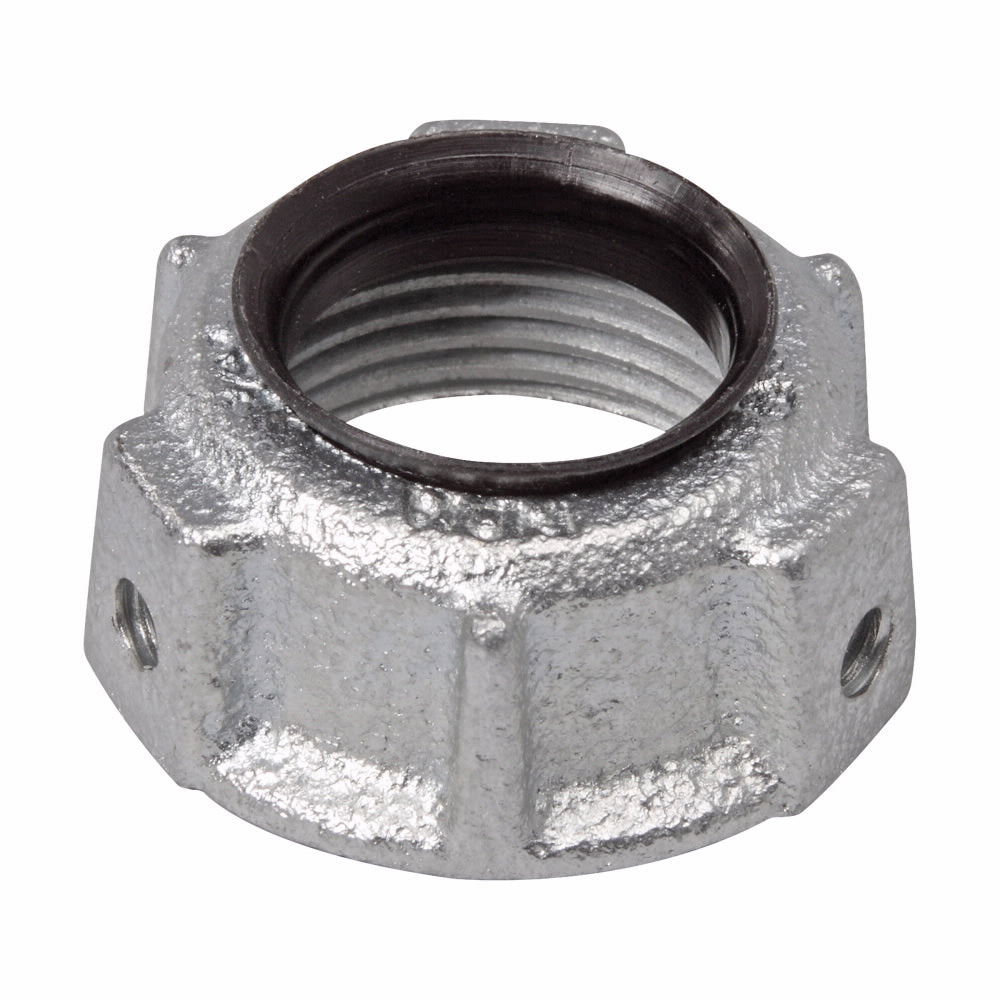

Crouse Hinds 1033 Malleable Iron Insulated Bushing 1-Inch

Product Description

The Crouse Hinds model 1033 is a malleable iron insulated bushing suitable for use with rigid and intermediate metal conduit (IMC). The bushing has a trade size of one inch and features female threaded connections combined with a screw connection, ensuring a stable fit. It includes a plastic insulation component, providing extra protection and safety during installation and use. The device can handle a temperature rating of one hundred five degrees Celsius.

• Malleable iron construction for durability
• Temperature rating of one hundred five degrees Celsius
• Compliant with UL and cUL standards

Product Highlights

This insulated bushing is ideal for electrical installations in commercial and institutional buildings, ensuring reliable conduit protection.

Product Information

Standard Information

• Brand: Crouse Hinds
• Part Number: 1033

Technical Specifications

• Material: Malleable Iron
• Insulation Material: Plastic
• Dimensions: 1.625 inches length x 1.625 inches width x 0.75 inches height
• Connection Type: Female Threaded x Screw
• Temperature Rating: 105 degrees Celsius
• Standards: UL E19189 Listed, cUL Certified
• UNSPSC: 39131700
