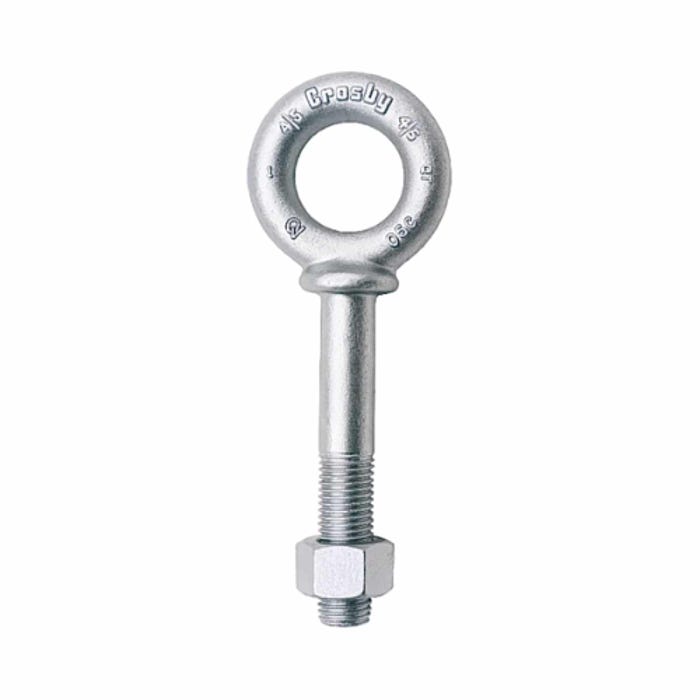

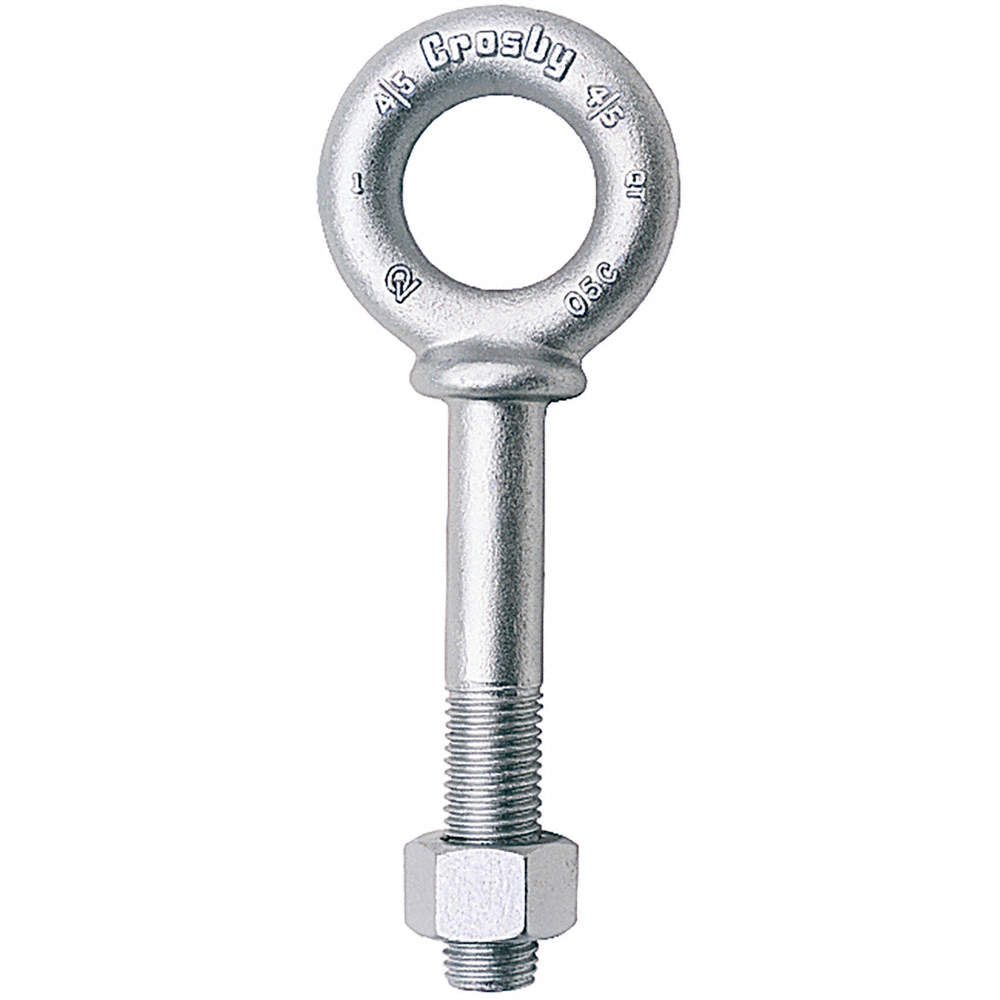

Crosby 1045318 G-277 Eye Bolt With Shoulder Nut 1 in, 9 in L

Product Description

The Crosby 1045318 G-277 Eye Bolt with Shoulder Nut is designed for secure through-bolted lifting applications. Forged from quenched and tempered steel, it features a hot-dip galvanized finish for corrosion protection. Supplied with a heavy hex nut for proper clamping and seating. Designed for in-line and angular loading with capacity reduction.

• Forged steel construction, quenched and tempered for strength and durability
• Supplied complete with hot-dip galvanized heavy hex nut
• 5:1 design factor; proof tested to 2× the Working Load Limit (WLL)

Product Highlights

This eye bolt meets ASME B30.26 standards and is fatigue rated to 1.5× WLL at 20,000 cycles. Ideal for machinery and equipment lifting.

Product Information

Standard Information

• Brand: CROSBY
• Manufacturer Part Number: 1045318
• Country of Origin: USA

Technical Specifications

• Measurement System: Imperial
• Thread: 1 in
• Shank Length: 9 in
• Material: Forged Steel
• Finish: Hot Dipped Galvanized
• ID Eye: 2 in
• OD Eye: 3-3/4 in
• Thread Type: UNC Thread
• Overall Length: 12.97 in
• Working Load: 13300 lb
• Thread Length: 4 in
• MPN: 1045318
• Model: G-277
• Size: 1" x 9"
• Type: Shoulder Nut Eye Bolts
• WLL (lbs): 13300
• Safety Factor: 5:1
• Overhead Lifting Rated: Yes
• Overall Width: 3.75"
• Inside Eye: 2.00"
• Approx. Weight (lbs): 4.23
• Country of Origin: USA
• Design Factor: 5:1
• WLL POUND: 13300
• Size A: 1.00
• Size B: 2.00
• Size C: 3.75
• Size D: .88
• Size E: 4.00
• Size F: 9.00
• Size G: 12.97
• Size H: 2.09
• Size J: 1.81
• Series: G-277
• Standard Approvals: ASME B30.26
• CE Certified: Yes
• Working Load Limit (lb): 13,300
• Eye Inside Diameter (in): 2 in
• Eye Outside Diameter (in): 3-3/4
• Package Quantity: 1/Each
• Eye Closure: Closed
• Material Quality Standards: ASME B30.26
• Shoulder Style: With Shoulder
• Includes Nut: Yes
• Application: In-Line Pull
• Working Load Limit: 6.03 ton
