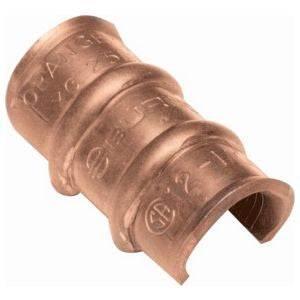

CRIMPIT YC4L12 C-Shape Compression Connector with 1 Rib 6 to 4 AWG main;12 to 6 AWG tap

Product Description

The CRIMPIT YC4L12 is a C-shape compression connector designed for use with main conductors ranging from six to four AWG and tap conductors from twelve to six AWG. This connector is made from high conductivity wrought copper, ensuring reliable performance. The compact design makes it easy to secure and insulate, while the reinforced rib adds strength, offering a robust connection.

• Optimized for main conductors 6 to 4 AWG and tap conductors 12 to 6 AWG
• Manufactured from high conductivity copper for durability
• Reinforced rib for enhanced pull-out resistance

Product Highlights

This connector delivers low installation costs and is suited for various wire termination applications, making it an essential component for electricians and technicians.

Product Information

Standard Information

• Brand: CRIMPIT
• Manufacturer: Burndy

Technical Specifications

• ECCN: EAR99
• Country of Origin: US - United States
• UNSPSC: 39121427
• Main Conductor Size: 6 to 4 AWG
• Tap Conductor Size: 12 to 6 AWG
