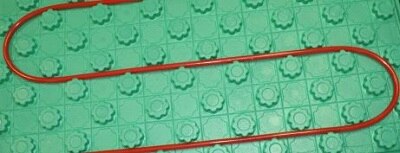

Crete-heat CH-2PANEL Radiant Tube Installation Panel

Product Description

The CRETE-HEAT CH-2PANEL is an insulated installation panel engineered for use with radiant tube heating systems. At 2 inches thick with R-10 insulation, it provides a thermally resistant barrier that supports proper heat containment around radiant tube applications. The panel is designed to deliver a finished wall or ceiling penetration point, keeping heat directed where it belongs and reducing thermal loss at the transition. HVAC technicians and mechanical contractors working with radiant tube systems rely on this panel to meet installation integrity and efficiency requirements.

The CH-2PANEL is suited for residential and light commercial radiant tube heating installations where insulated penetration panels are required at wall or ceiling interfaces. It is typically installed during new construction or retrofit projects where radiant tube systems are routed through building assemblies. The R-10 insulation value makes it appropriate for applications where minimizing conductive heat loss at penetration points is a priority.

Key Features

• 2-inch thickness provides a robust insulated barrier at tube penetration points
• R-10 insulation rating reduces conductive heat loss around radiant tube applications
• Designed to deliver a finished appearance at wall or ceiling penetrations
• Supports proper heat containment and system efficiency in radiant tube installations
• Suitable for both new construction and retrofit radiant heating projects

Compatibility

Designed as an OEM-style installation panel for use with radiant tube heating systems requiring insulated wall or ceiling penetration support.

Installation Notes

Installation is typically performed by licensed HVAC technicians or mechanical contractors familiar with radiant tube heating systems. Ensure the radiant tube system is fully shut down and cooled before beginning panel installation. Verify that the penetration opening is correctly sized and framed to accept the panel per the system manufacturer's guidelines. Local mechanical codes and fire-stop requirements should be consulted before completing any wall or ceiling penetration work.

Technical Specifications

• Insulation Thickness: 2 inches
• Insulation R-Value: R-10

Standard Information

• Brand: CRETE-HEAT
• Manufacturer Part Number: CH-2PANEL
