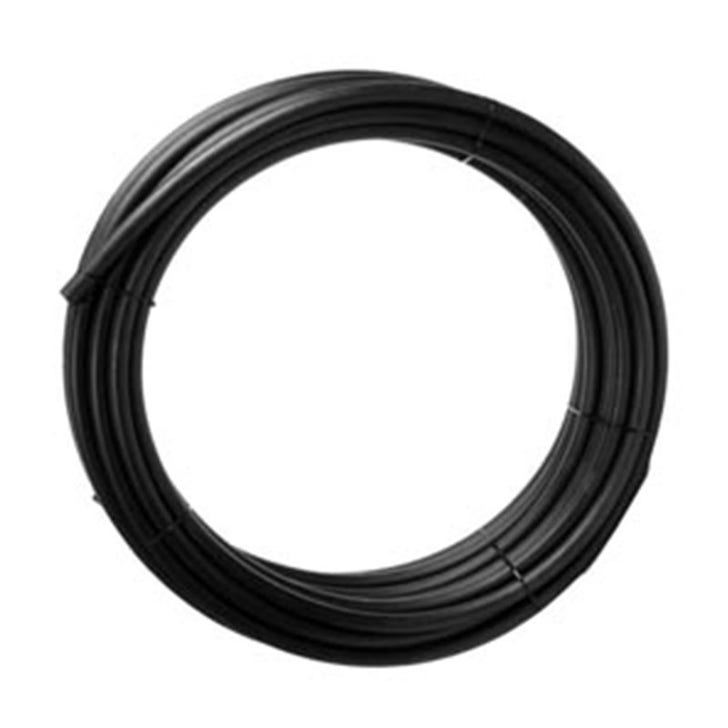

Cresline hd-100 Hdpe Pipe 2 in X 68 Ft Sdr 15 PE3408

Product Description

The CRESLINE hd-100 is a high-density polyethylene (HDPE) pressure pipe manufactured to PE3408 material standards with an SDR 15 dimension ratio. Measuring 2 inches in diameter and 68 feet in length, this pipe is designed for underground water distribution, irrigation mains, and similar fluid-conveyance applications where flexibility, chemical resistance, and long service life are required. Weighing 42.20 pounds per length, it is suitable for professional installation by licensed plumbers, irrigation contractors, and utility contractors working on both residential and light commercial projects.

This pipe is commonly used in potable water service lines, rural water systems, agricultural irrigation distribution, and geothermal loop fields. Its HDPE construction resists corrosion, scaling, and biological growth, making it well suited for direct burial in a wide range of soil conditions. The 68-foot coil or stick length reduces the number of field joints required on longer runs, which can improve installation efficiency and reduce potential leak points in the system.

Key Features

• PE3408 HDPE material meets industry standards for pressure-rated polyethylene pipe
• SDR 15 dimension ratio provides a consistent wall thickness-to-diameter relationship for rated pressure service
• 2-inch diameter suits main line and service line applications
• 68-foot length minimizes field joints on longer runs
• Corrosion-resistant HDPE construction suitable for direct burial and aggressive soil environments
• Flexible construction allows for trenchless or directional-bore installation methods

Compatibility

Designed as an OEM-style replacement and standard-supply pipe for residential and commercial water distribution, irrigation, and utility service line applications using 2-inch HDPE fittings and couplings rated for PE3408 SDR 15 pipe.

Installation Notes

Installation should be performed by a licensed plumber or qualified utility contractor in accordance with local plumbing codes and ASTM D2774 guidelines for underground thermoplastic pressure piping. Shut off and depressurize the water system before making any connections. Use fittings and couplings specifically rated for PE3408 HDPE pipe at the applicable SDR rating. Avoid kinking the pipe during handling and ensure minimum bend radius requirements are observed throughout the run.

Technical Specifications

• Pipe Diameter: 2 inches
• Pipe Length: 68 feet
• Pipe Material: HDPE (PE3408)
• Dimension Ratio: SDR 15
• Item Weight: 42.20 pounds per EA

Standard Information

• Brand: CRESLINE
• Manufacturer Part Number: hd-100
