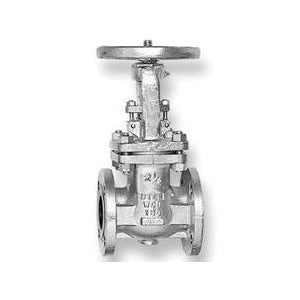

CRANE L47XUF*100 Gate Valve 150 lb Flanged End Style

Product Description

CRANE gate valve with MPN L47XUF*100 is designed for various applications including steam, air, gas, and oil. This valve features a cast steel body and is suitable for high pressure installations. It is specifically made to provide reliable service and minimizes flow resistance through its straight-through ports.

• Nominal size of ten inches
• 150 lb pressure class with a maximum rating of 285 psi
• Handwheel actuator for easy operation

Product Highlights

This valve is equipped with robust features such as a flexible wedge disc and fully welded seat rings, ensuring durability and performance.

Product Information

Standard Information

• Brand: CRANE
• Manufacturer: Crane ChemPharma Energy

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Cast Steel
• End Style: Flanged
• Hand Wheel Diameter: 16 inches
• Inlet to Outlet Length: 13 inches
• Nominal Size: 10 inches
• Pressure Class: 150 lb
• Pressure Rating: 285 psi
• Series: 47 Series
• Softgoods Material: Graphite Packing
• Temperature Rating: -20 to 100 degrees Fahrenheit
• Top to Inlet Center: 47 inches
• Trim Material: 410 Stainless Steel
