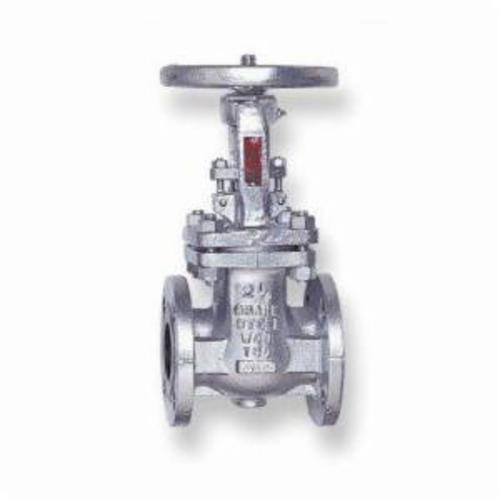

CRANE L33XUF*080 33 Series Gate Valve 8 In Nominal Flanged End Style 300 lb

Product Description

The CRANE L33XUF*080 is an eight inch nominal gate valve known for its reliability in various applications such as steam, air, gas, oil, and high pressure systems. This valve features a cast steel body with flanged ends for easy installation.

• Designed for high pressure use with a maximum rating of seven hundred forty psi.
• Operates across a temperature range from negative twenty to one hundred degrees Fahrenheit.
• Includes a handwheel actuator for user-friendly operation.

Product Highlights

This valve provides efficient flow control with minimal pressure drop. The flexible wedge disc compensates for changes in the valve body due to pipe stress.

Product Information

Standard Information

• Actuator Type: Handwheel
• Body Material: Cast Steel

Technical Specifications

• End Style: Flanged
• Hand Wheel Diameter: 16 inches
• Inlet to Outlet Length: 16-1/2 inches
• Nominal Size: 8 inches
• Pressure Class: 300 lb
• Pressure Rating: 740 psi
• Series: 33 Series
• Softgoods Material: Graphite Packing
• Temperature Rating: -20 to 100 degrees Fahrenheit
• Top to Inlet Center: 42 inches
• Trim Material: 410 Stainless Steel
