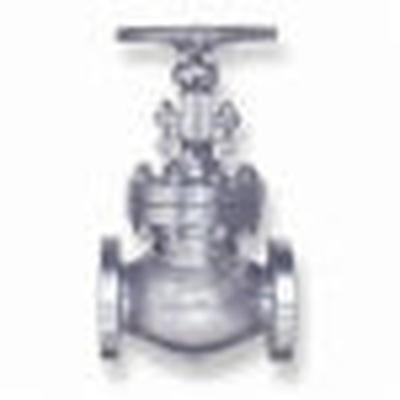

CRANE L143XU*030 Globe Valve 3 in Nominal 150 lb

Product Description

The CRANE Globe Valve, MPN L143XU*030, is designed for precise flow control in various applications. This valve features a flanged end style and a cast steel body, making it durable for long-term use. Its handwheel actuator allows for easy operation. This globe valve is suitable for pressures up to two hundred eighty-five psi and temperature ranges from negative twenty to one hundred degrees Fahrenheit.

• Three-inch nominal size for efficient flow management
• Handwheel for straightforward manual operation
• Constructed with a robust cast steel body for durability

Product Highlights

This valve is ideal for throttling service, providing accurate and repeatable flow control.

Product Information

Standard Information

• Brand: CRANE
• Manufacturer: Crane ChemPharma Energy

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Cast Steel
• End Style: Flanged
• Hand Wheel Diameter: 10 inches
• Inlet to Outlet Length: 9-1/2 inches
• Nominal Size: 3 inches
• Pressure Class: 150 lb
• Pressure Rating: 285 psi
• Series: 143
• Softgoods Material: Graphite Packing
• Temperature Rating: -20 to 100 degrees Fahrenheit
• Top to Inlet Center: 16 inches
• Trim Material: 410 Stainless Steel
