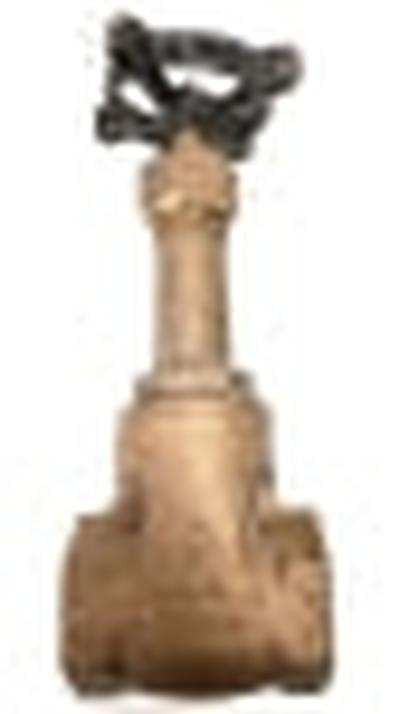

CRANE 51000500K Stockham B-100 1 Gate Valve 125 lb

Product Description

The CRANE Stockham B-100 gate valve, MPN 51000500K, is designed for reliability in various applications. This valve features a durable bronze body and is suited for commercial and industrial use. It operates with a handwheel actuator for ease of use.

• Made of bronze for longevity
• Threaded end style for easy installation
• Suitable for pressure ratings up to 200 psi CWP

Product Highlights

The CRANE B-100 gate valve offers consistent performance across multiple settings, making it a preferred choice for engineers and contractors.

Product Information

Standard Information

• Brand: CRANE
• Manufacturer: Crane ChemPharma Energy

Technical Specifications

• Actuator Type: Handwheel
• Body Material: Bronze
• End Style: Thread
• Hand Wheel Diameter: 2-3/4 inches
• Inlet to Outlet Length: 2.46 inches
• Nominal Size: 1 inch
• Pressure Class: 125 lb
• Pressure Rating: 200 psi CWP
• Series: B-100
• Softgoods Material: Graphite Packing Ring
• Temperature Rating: -20 to 150 degrees F
• Top to Inlet Center: 7.44 inches
• Trim Material: Copper Silicon Bronze
