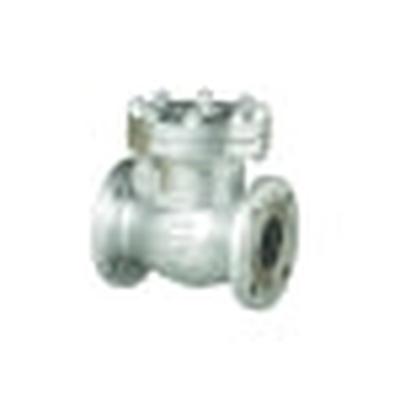

CRANE 147XU*060 147 Swing Check Valve 6 in Nominal Flanged End Style 150 lb

Product Description

The CRANE® 147XU-6 swing check valve is designed to prevent the reversal of flow in piping systems. This product is compatible with both horizontal and vertical upward flow installations. It provides low resistance to flow, making it an ideal choice for low velocity applications.

• Nominal size of six inches
• Flanged end style for easy installation
• Designed for 150 lb pressure class

Product Highlights

This check valve features a cast steel body and stainless steel trim for durability and reliability.

Product Information

Standard Information

• Brand: CRANE
• MPN: 147XU*060

Technical Specifications

• Body Material: Cast Steel
• End Style: Flanged
• Inlet to Outlet Length: 14 inches
• Low Lead Compliance: No
• Nominal Size: 6 inches
• Pressure Class: 150 lb
• Pressure Rating: 285 psi
• Series: 147
• Temperature Rating: -20 to 100 degrees Fahrenheit
• Top to Inlet Center: 11 inches
• Trim Material: 410 Stainless Steel
