Crandall TK-1301-0-CS&S Pneumatic Room Thermostat - Two Pipe with Manual Override

Product Description

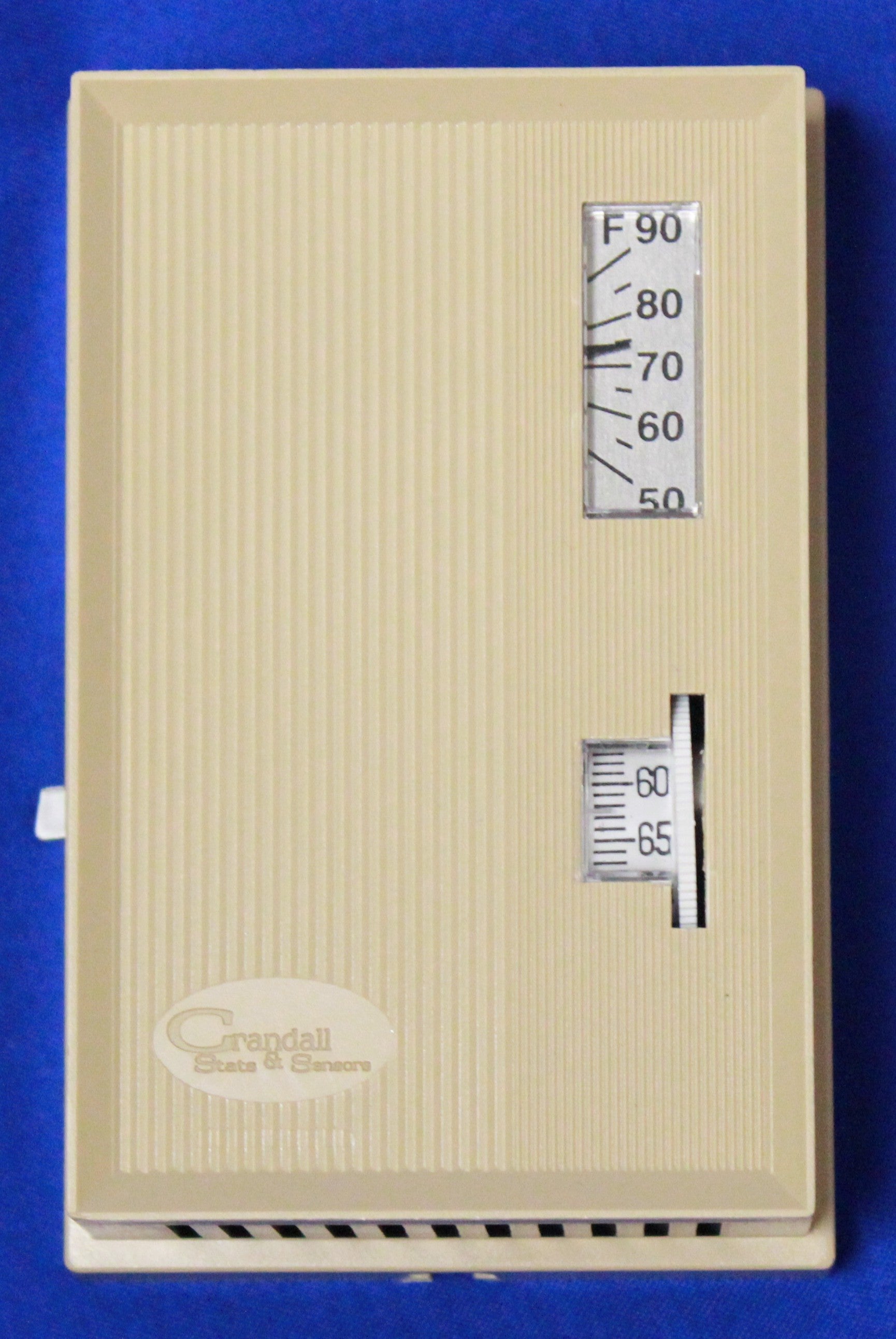

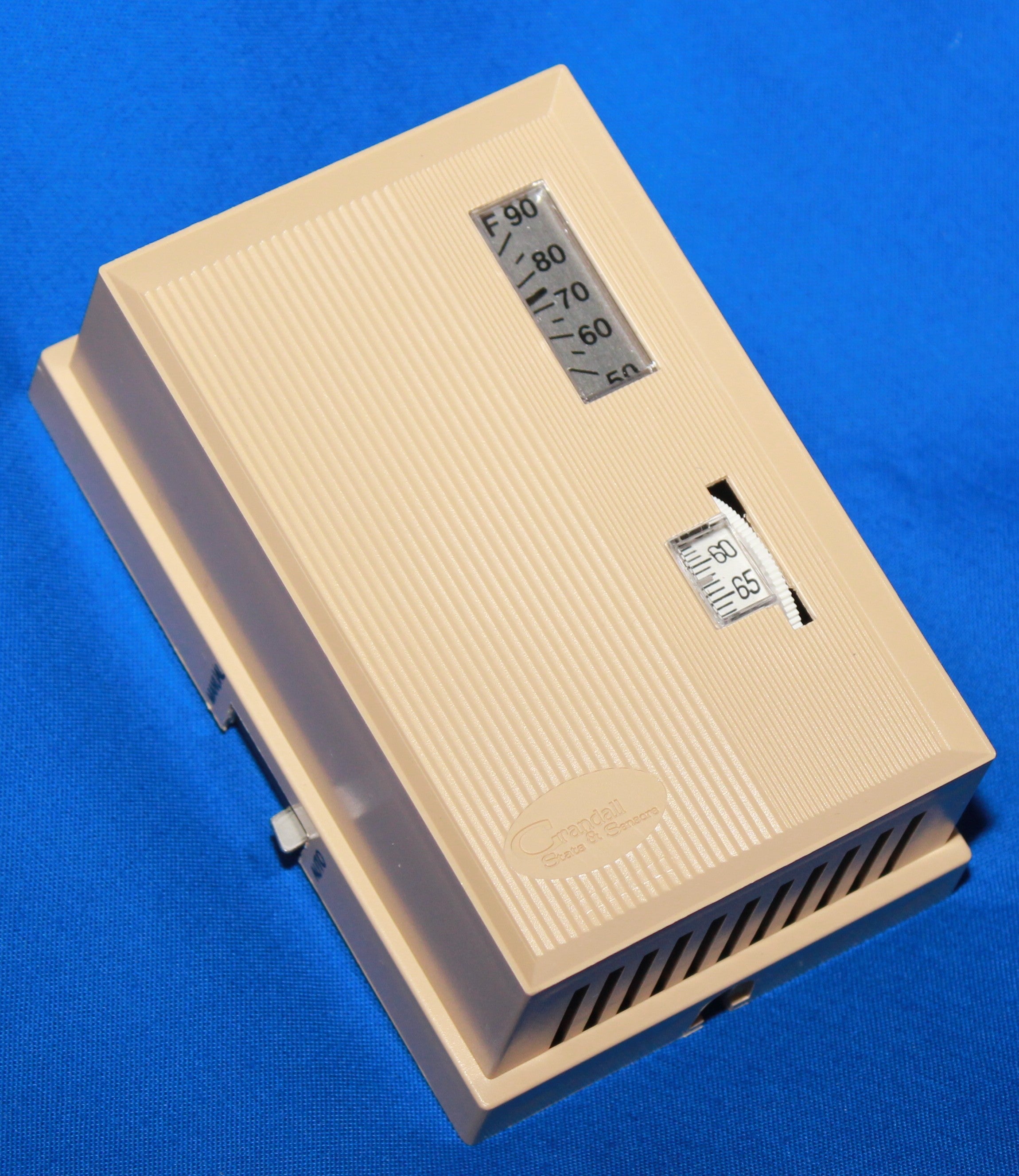

The Crandall TK-1301-0-CS&S Pneumatic Room Thermostat is suitable for controlling pneumatic devices in environmental systems. This unit provides proportional control for two-pipe systems, functioning effectively in day or night modes with a manual override option. It features a bimetal thermostatic element and pilot-operated relay for stability and precision in operation.

• Operates in both day and night modes.
• Manual override functionality available.
• Designed for precision control of pneumatic systems.

Product Highlights

The thermostat is calibrated for an 8 PSI branch output at seventy-five degrees Fahrenheit, ensuring reliable performance across various conditions.

Product Information

Standard Information

• Weight: 1.05 lbs
• Dimensions: 5.5 inches by 3 inches by 3.75 inches

Technical Specifications

• MPN: TK-1301-0-CS&S
• Max Pressure: 20 PSI
• Day Mode Pressure: 15 PSI
• Temperature Range: 55 to 85 °F
• Output Branch Pressure: 8 PSI at 75 °F
• Manual Override: Yes
• Unit Size: 4-3/8 inches H x 2-7/8 inches W x 1-5/8 inches D
• Package Size: 5-1/2 inches x 3-3/4 inches x 3-3/4 inches
