Crandall TC-4111-CS&S Single Stage Single Bulb

Product Description

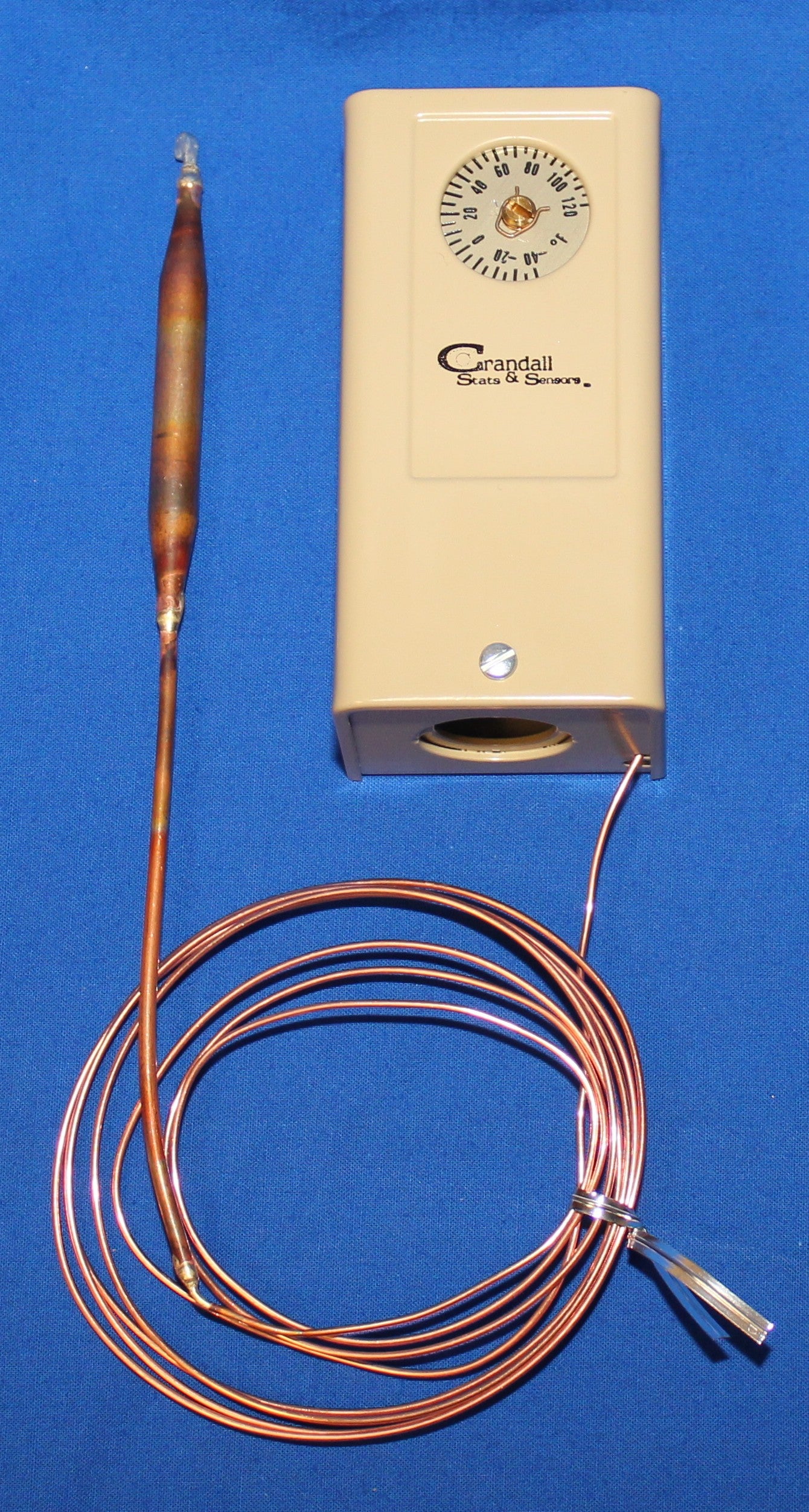

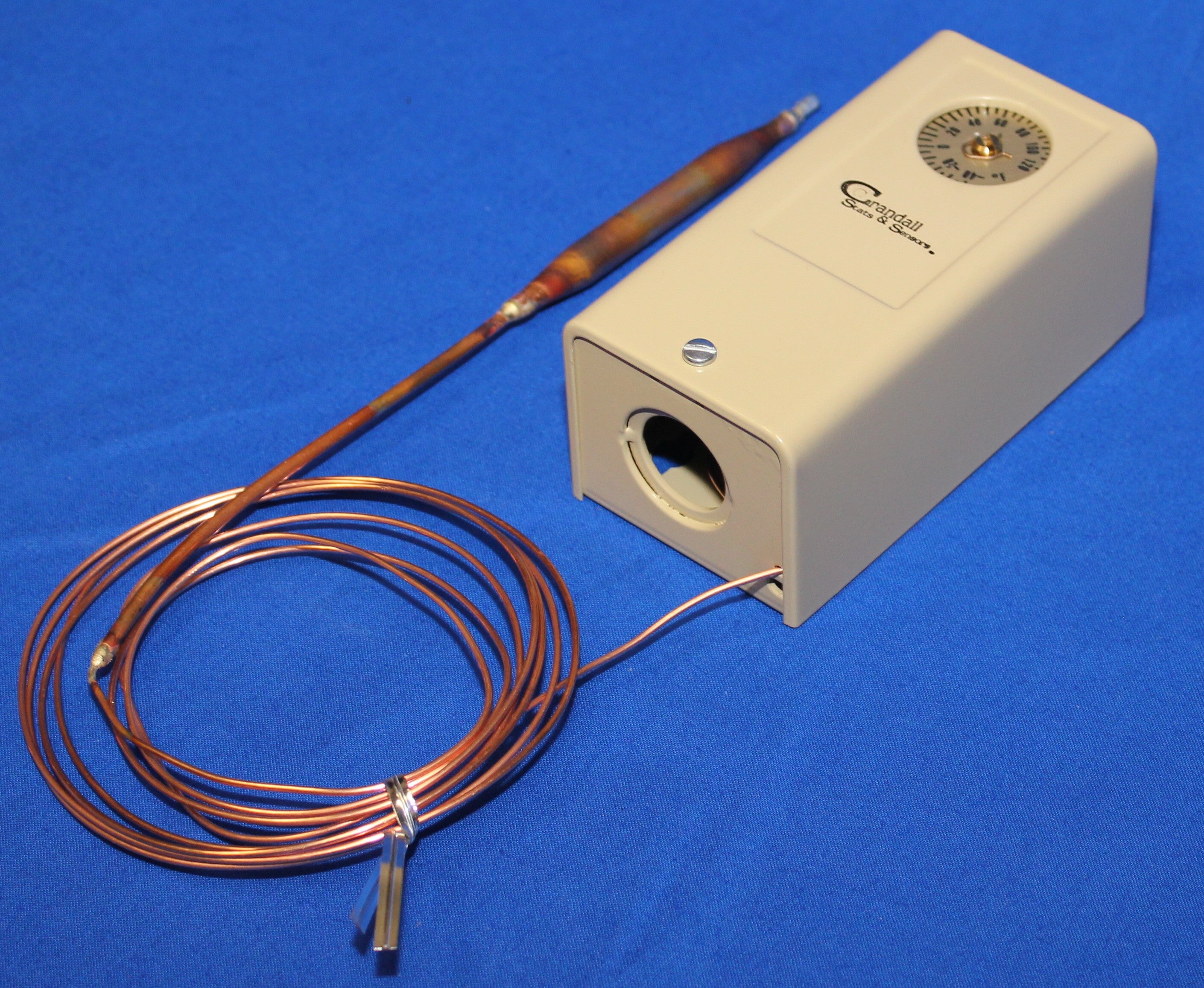

The Crandall TC-4111-CS&S Single Bulb Thermostat is used for controlling temperatures in tanks, ducts, and liquid lines. Its design includes a six-foot capillary tube filled with liquid. This bulb senses temperature changes, which operate an SPDT switch to manage temperature settings. The thermostat has a setpoint adjustment range from minus forty degrees Fahrenheit to one hundred twenty degrees Fahrenheit. The differential is adjustable between three degrees and sixteen degrees Fahrenheit, allowing for customized control.

• 6-foot capillary for versatile installation
• SPDT switch for reliable operation
• Designed for use in various environments

Product Highlights

This thermostat is reliable for temperature regulation in various HVAC systems, ideal for those needing precision in temperature control.

Product Information

Standard Information

• Brand: Crandall
• Part Number: TC-4111-CS&S

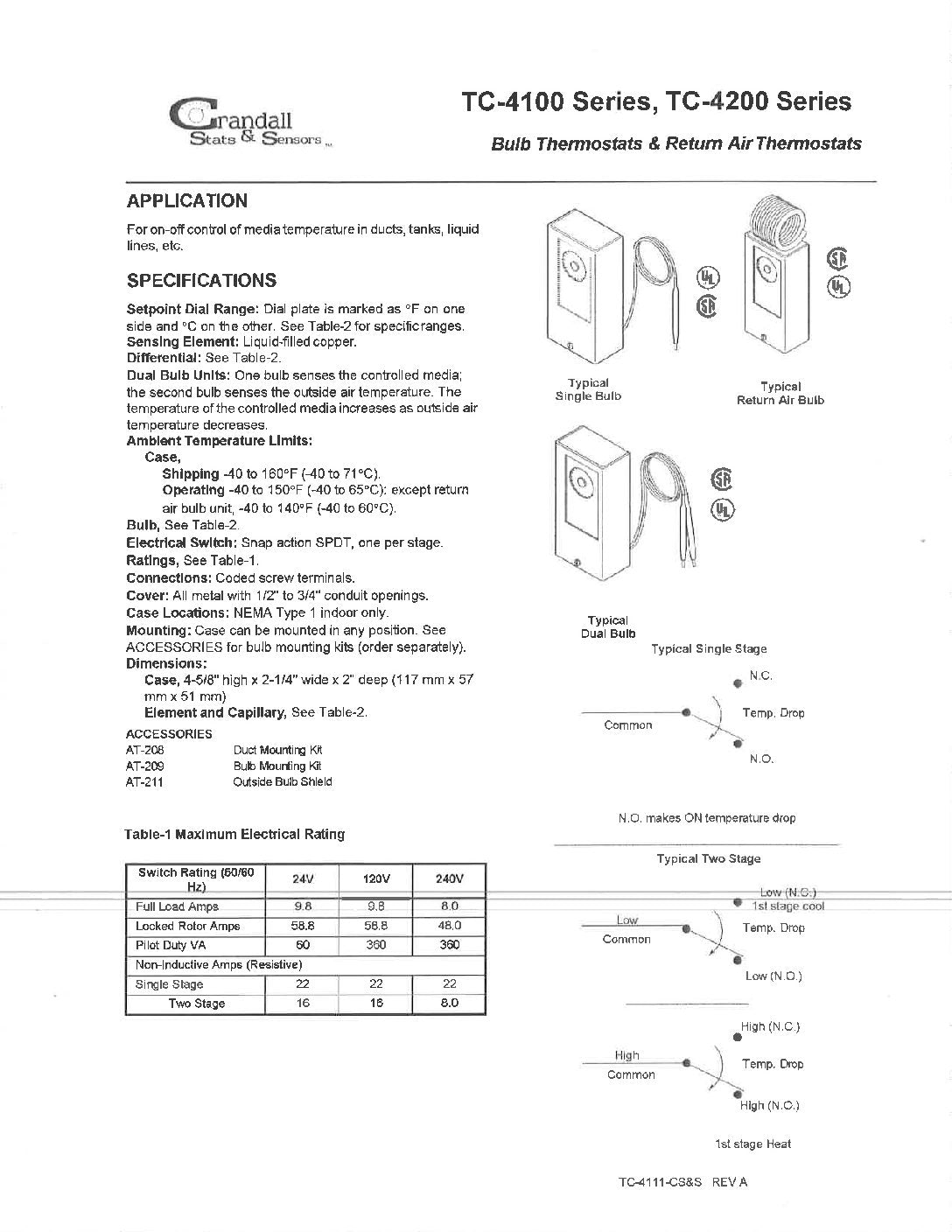

Technical Specifications

• Weight: 1.35 lbs
• Dimensions: 2.875 x 4.625 x 11.750 inches
• Full Load Amps: 9.8 (24 V), 9.8 (120 V), 8.0 (240 V)
• Locked Rotor Amps: 58.8 (24 V), 58.8 (120 V), 48 (240 V)
• Pilot Duty VA: 60 (24 V), 360 (120 V), 360 (240 V)
• Non-Inductive Amps: 22
