Crandall 2252-655-CS&S 2252-655 Duct/Outdoor Air Power Size Replacement MPN

Product Description

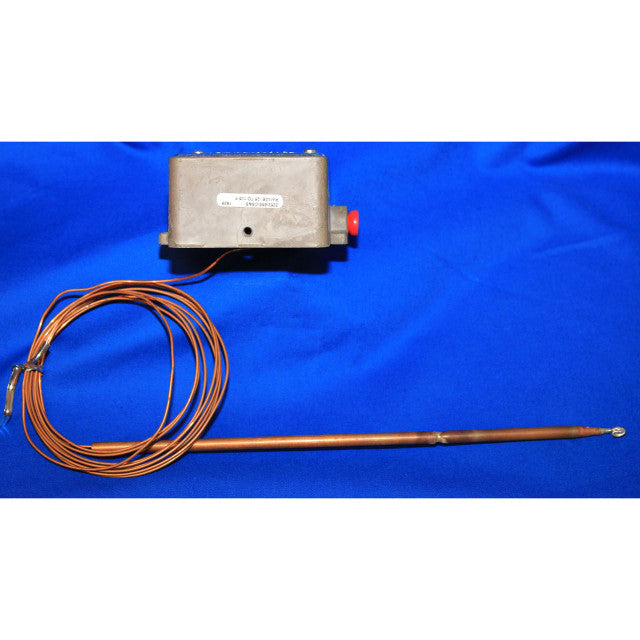

The Crandall 2252-655-CS&S is a pneumatic temperature transmitter designed for duct and outdoor air applications. It operates within a temperature range of minus twenty-five degrees Fahrenheit to one hundred twenty-five degrees Fahrenheit and transmits air pressure readings from three to fifteen PSIG. The unit features a one-fourth inch by ten and a half-inch bulb with a nine-foot capillary tube, ensuring flexible installation options for various setups.

• Temperature range: -25°F to 125°F.
• Pressure transmission range: 3 to 15 PSIG.
• Capillary size: 1/4 inch x 10-1/2 inch with a 9 foot length.

Product Highlights

This transmitter is suitable for HVAC systems and provides accurate temperature readings essential for system monitoring.

Product Information

Standard Information

• Brand: Crandall
• Part Number: 2252-655-CS&S

Technical Specifications

• Weight: 1.35 lbs
• Dimensions: 3.36 x 3 x 18.12 in
• Transmission Range: 3 to 15 PSIG
• Temperature Range: -25°F to 125°F
• Capillary Length: 9 feet
