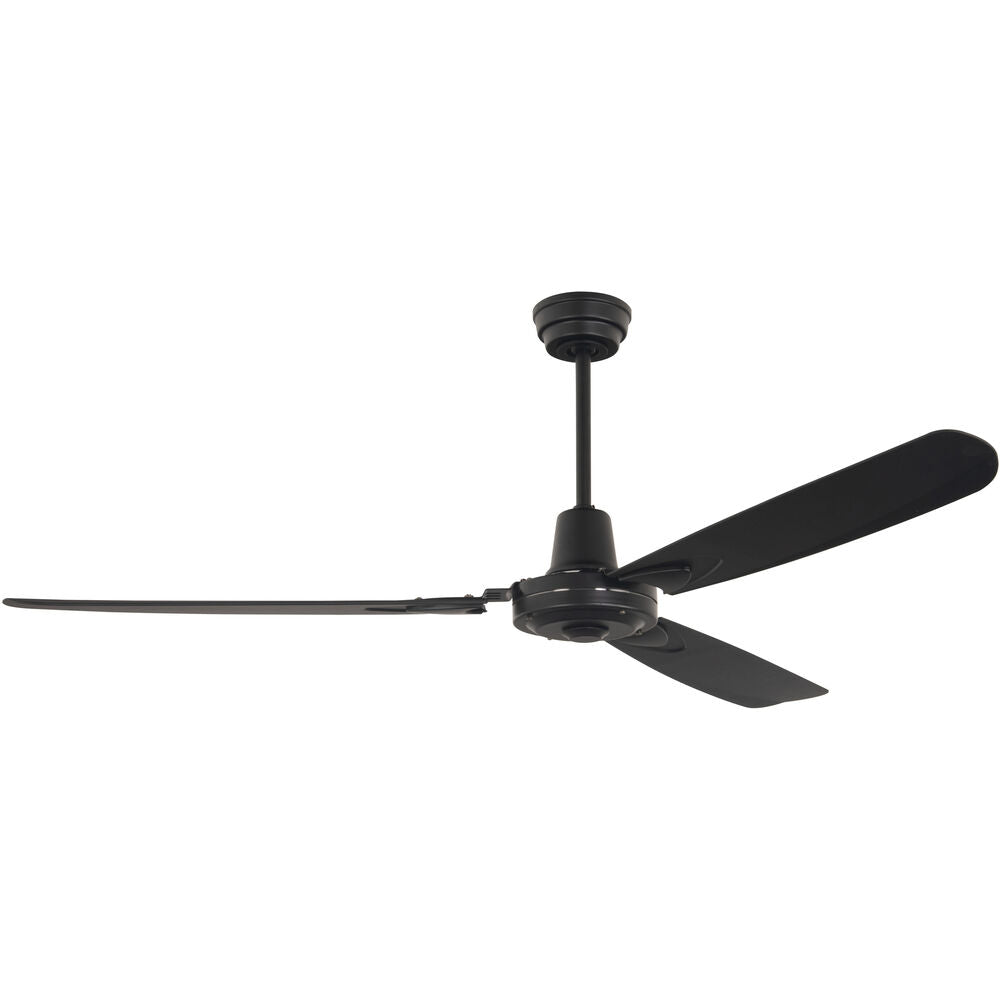

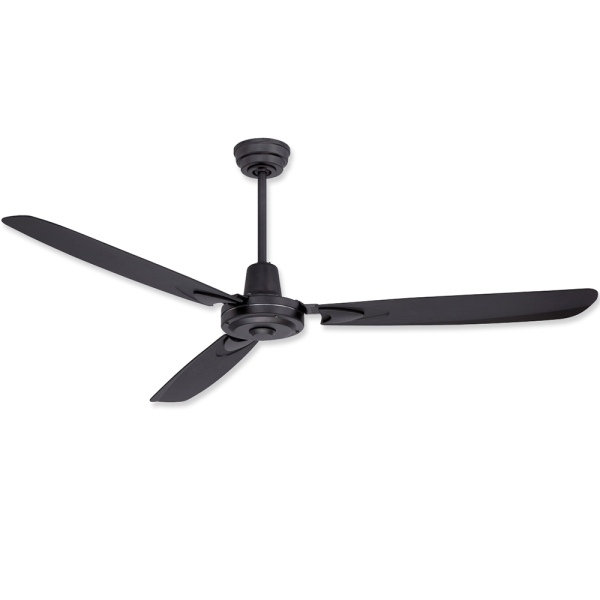

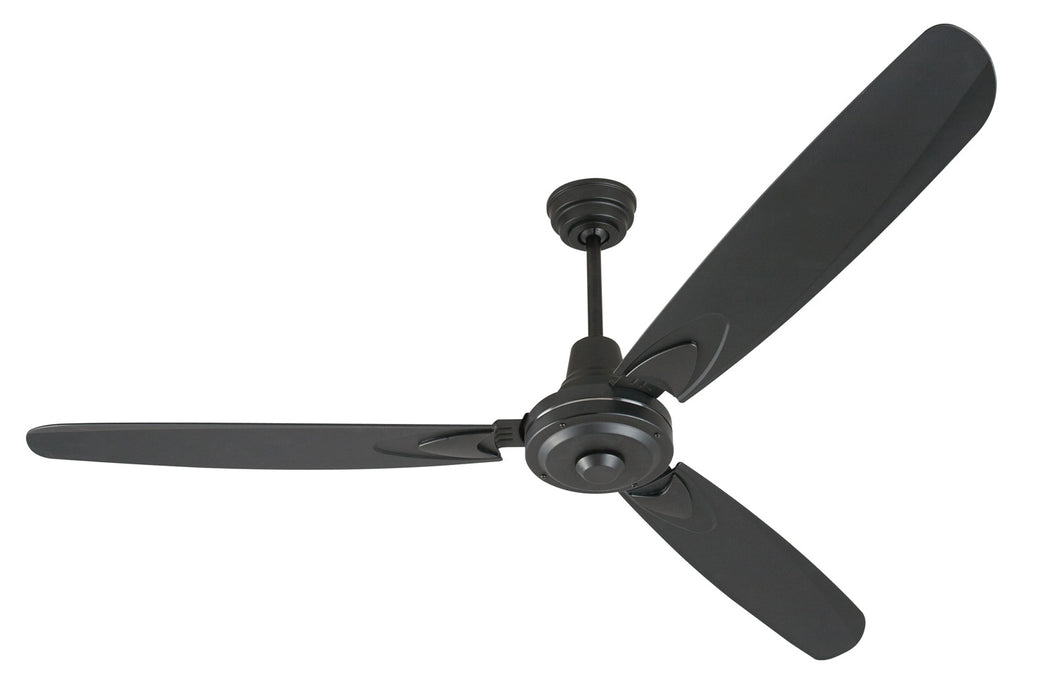

The CRAFTMADE VE58FB3 Velocity ceiling fan features an aerodynamic design blending retro, modern, and industrial styles. The 58-inch fan includes three custom flat black ABS blades and a heavy-duty, 4-speed non-reversible motor. A 4-speed wall control and a 12-inch downrod are included for convenient operation and installation.
Includes a 12" downrod
Features a heavy-duty, 4-speed non-reversible motor
Offers dual mount capability for flat or angled ceilings
Product Highlights
The CRAFTMADE Velocity ceiling fan combines style and performance, suitable for great rooms and indoor locations. It features a 3-blade design and includes a wall control for easy adjustments.
Product Information
Standard Information
Brand: CRAFTMADE
Manufacturer Part Number: VE58FB3
Country of Origin: China
Technical Specifications
Brand
Craftmade
Brand Category
Ceiling Fan
Voltage
120V/60Hz
Diameter
58
Width
58
Fan Blade Pitch
19.5
Fan Blade Span
58
Number of Fan Blades
3
Motor Type
AC
Motor Speeds
4
Motor Diameter
188
Motor Height
20
Motor size combined
188x20
Motor Material
Silicon Steel
Energy Guide CFM
4691
Energy Guide Watts
46
Energy Guide CFM Watts
103
FTC Test report Mean CFM High
7053.18
AMPS (Hi Speed)
0.69
Electricity Use
95 Watts
Light Kit Adaptable
No
Control Status
Included
Control Types Included
Wall Control
Control Type
Wall Control
Motor Wattage
83.2
Unit Air Flow
7731
Light Kit Included
No
Features
12" Downrod (Included)
Product Height (Primary Downrod)
21.25Blade to ceiling Height (Primary Downrod): 18.5
Downrod Diameter
0.5
Mounting Location
Indoor
Mounting Method
Dual Mount (Flat or Angled Ceiling)
Slope Mount
Yes
Material
ABS/Steel/Silicon Steel
Switch Features
Wall Control
Room Size
Great rooms (larger than 18 X 20)
Finish
Flat Black
UL Approval
Underwriters Laboratories (UL) Approved for Indoor Locations
Room
Great Room, Office
Warranty
30-Year Limited Warranty
Size
Large (52" to 60")
Ceiling to Bottom
21.2500
Average CFM
8122.000000
Watts
97.000000
Blade Span Diameter
58" Blade Span Diameter
Blade Color
Flat Black
Blade Pitch
19.50°
Motor/RPM
188mm x 22mm Motor, RPM: Low - 70 / High - 196
Mounting System
Standard or Angled
Downrod
Includes 12" downrod
Sloped Ceiling
Installable on sloped ceilings up to 32°, Use part 45AD for 32° to 45° ceilings
