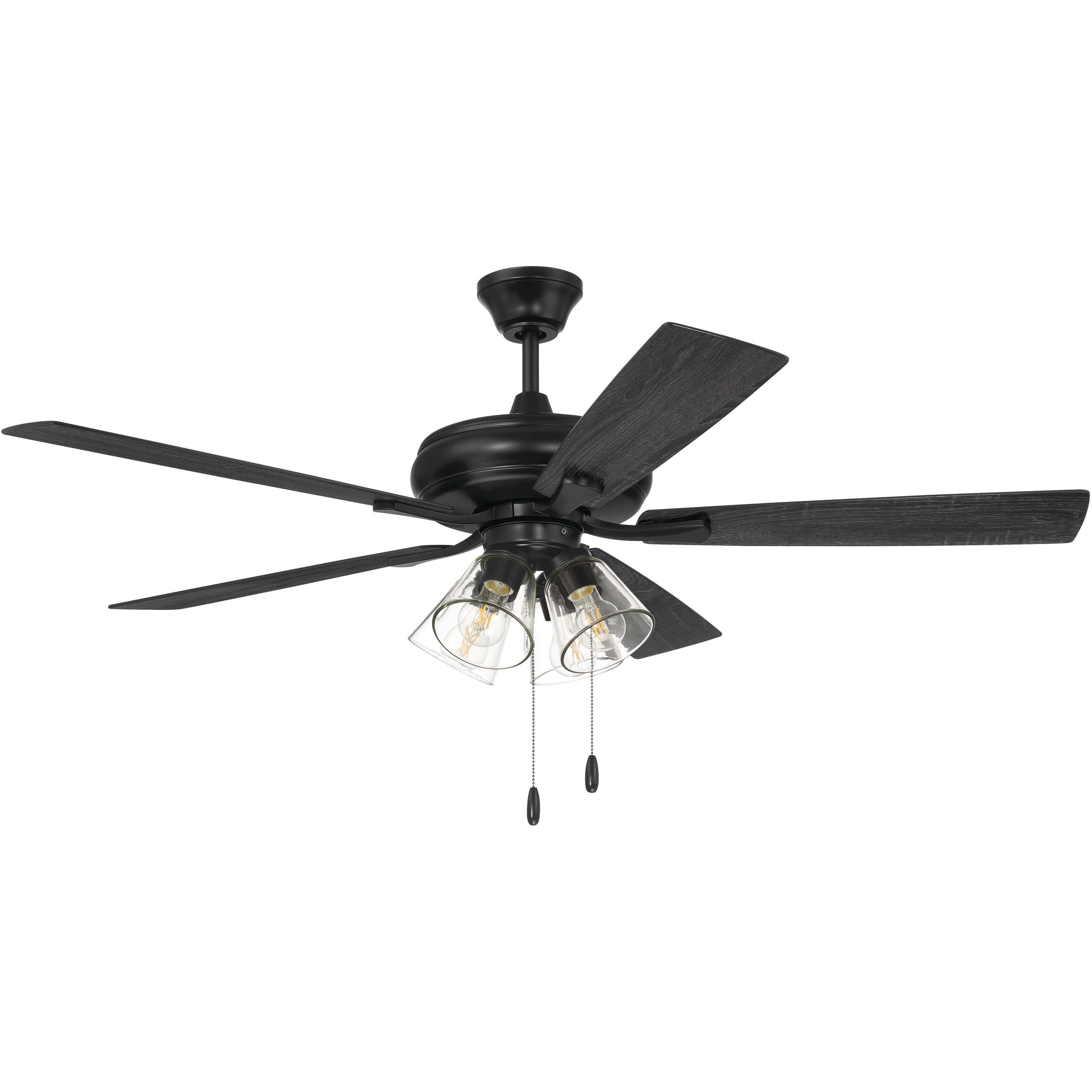

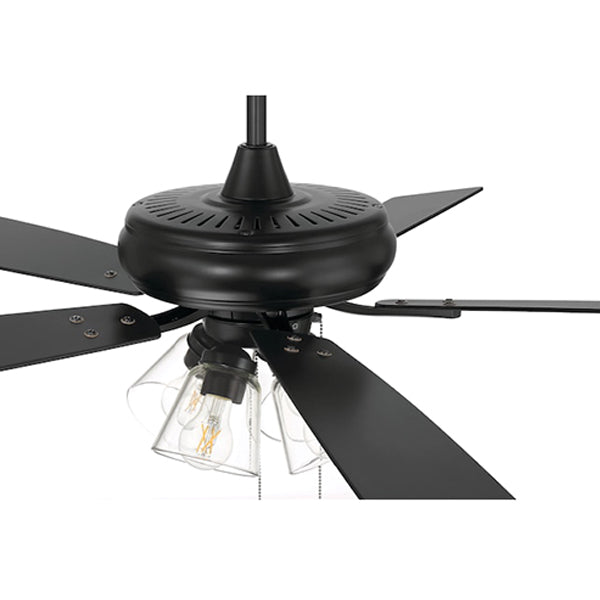

Craftmade ECF104FB5-FBGW Eos 5-Blade 59W Ceiling Fan (52 in) ECF104FB5-FBGW

Product Description

Craftmade ECF104FB5-FBGW is a 52 in Eos ceiling fan with an integrated 4 x 4W dimmable LED light kit. It uses a 3-speed reversible AC motor (motor size 153 x 13) that delivers up to 3675 CFM, operates at 120V/60Hz, and includes a 6 in downrod and pull chain controls. The five reversible blades (52 in span, 11 degrees pitch) and dual mount support flat or angled ceilings up to 23 degrees for indoor use.

• Integrated 4 x 4W dimmable LED light kit (A19, 3000K, CRI 82)
• 3-speed reversible AC motor; motor size 153 x 13; high airflow up to 3675 CFM
• Dual mount for flat or angled ceilings up to 23 degrees; includes 6 in downrod and pull chain controls

Product Highlights

52 in, 5-blade indoor ceiling fan with integrated 4 x 4W dimmable LED, 3-speed reversible AC motor, dual mount up to 23 degrees.

Product Information

Standard Information

• Brand: CRAFTMADE
• Manufacturer Part Number: ECF104FB5-FBGW
• Country of Origin: China

Technical Specifications

• Brand: Craftmade
• Manufacturer Part Number: ECF104FB5-FBGW
• Model / SKU: ECF104FB5-FBGW
• Input Voltage: 120V
• Frequency: 60Hz
• Power Consumption (High): 59.15 W
• Power Consumption (Low): 14.05 W
• Light Kit: Integrated 4 x 4W dimmable LED (A19)
• Bulb Type: LED (A19)
• Bulb Count: 4
• Bulb Wattage: 4 W per bulb
• Color Temperature: 3000K
• CRI: 82
• Blade Span: 52 in
• Blade Count: 5
• Blade Pitch: 11 degrees
• Motor Type: AC
• Motor Size: 153 x 13 (units not specified - likely mm; kept but low confidence)
• Number of Speeds: 3
• Reversible Motor: Yes
• Airflow (High CFM): 3674.58 CFM
• Airflow (Low CFM): 1775.71 CFM
• RPM (High): 169
• RPM (Low): 77
• Downrod Length: 6 in
• Max Slope: 23 degrees
• Mounting Method: Dual mount (flat or angled ceilings up to 23 degrees)
• Controls: Pull chain (speed and light)
• Mounting Location: Indoor (dry rated)
• Housing Material: Steel
• Blade Material: MDF
• Lead Wire Length: 80 in
• Ceiling to Blades: 11.7 in
• Height: 19.48 in
• Width / Fan Blade Span: 52 in
• Weight: 17.2 lb
• Certifications: ETLus (indoor)
• Country of Origin: China
• UPC: 647881253127
